IntelliVue MX400/MX450 ITD Variable Height Wall Mount

Mounting solution
Learn more about height adjustable arms available for IntelliVue MX400/MX450/MX500 monitors.

Features
Height adjustable arm on ITD support extrusion
ITD part no. HA.2242.903 and ITD part no. HA.2243.903 Kits include: Adapter for ITD support extrusion; arm, length 300mm (for ITD part no. HA.2242.903 ) and 400mm (for ITD part no. HA.2243.903); tilt and swivel unit with an adapter for Philips IntelliVue MX400/MX450/MX500. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for ITD support extrusion: RAL 7035 light grey, powder-coated; there is also a possibility to mount an additional keyboard holder (HA.1024.991))
Height adjustable arm on ITD support ... || 1

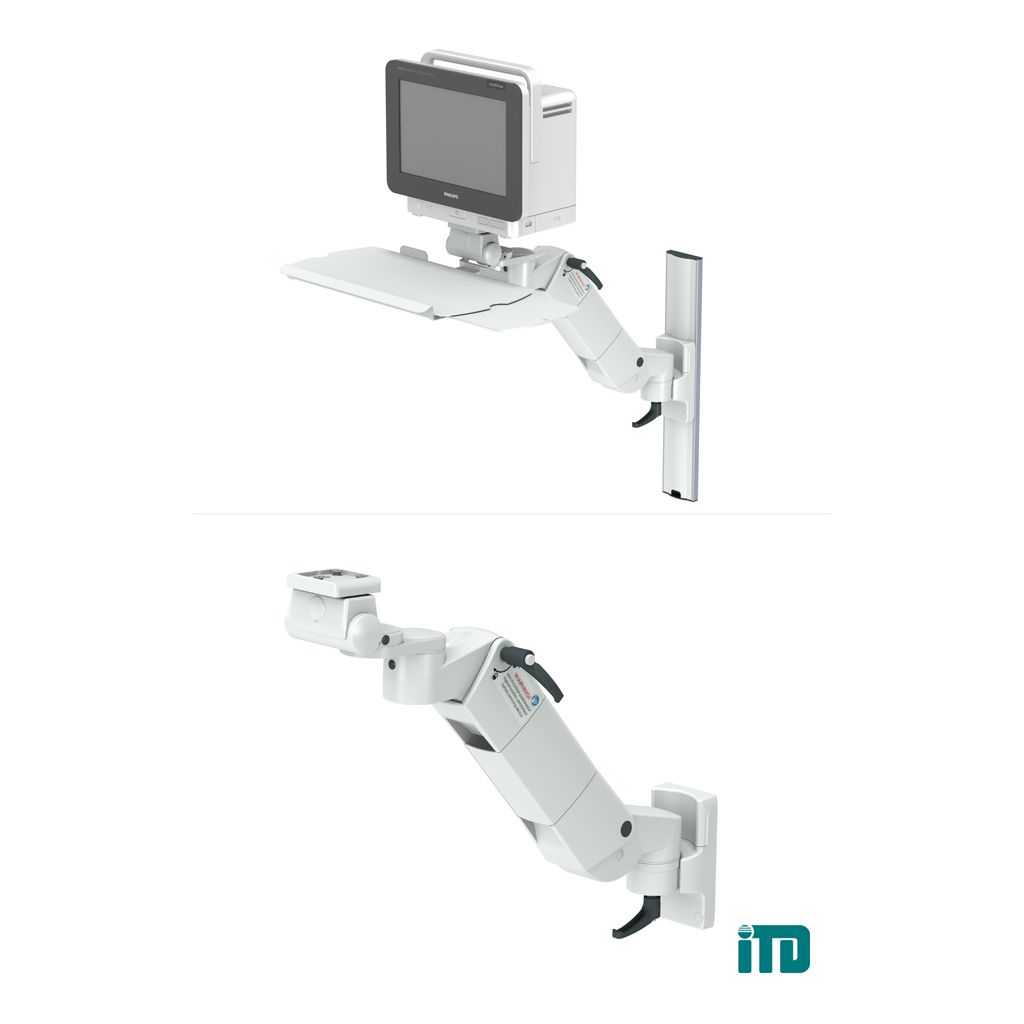

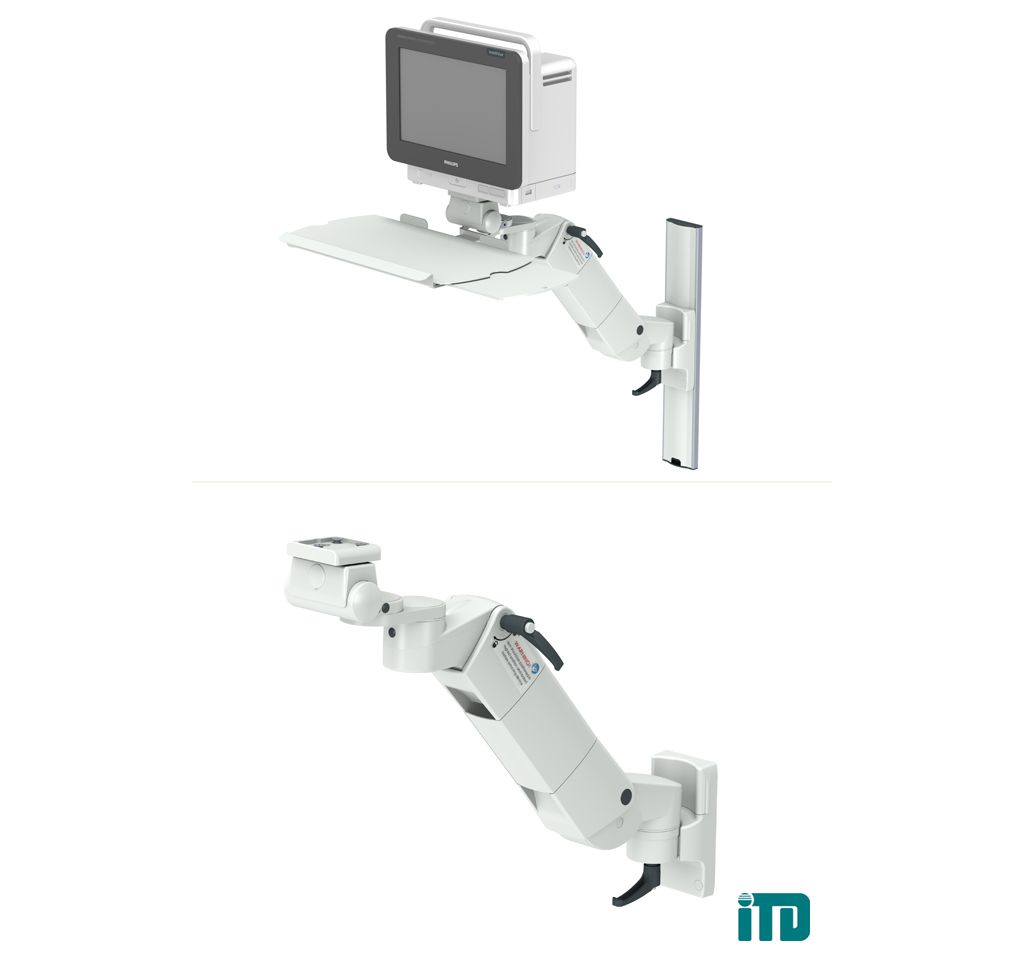

Height adjustable arm on GCX wall channel
ITD part no. HA.2248.903 and ITD part no. HA.2249.903 Kits include: Adapter for GCX wall channel; arm, length 300mm (for HA.2248.903) and 400mm (for ITD part no. HA.2249.903); tilt and swivel unit with an adapter for Philips IntelliVue MX400/MX450/MX500. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit and height adjustable arm: RAL 7035 light grey, powder-coated; finish, adapter GCX wall channel: galvanized; there is also a possibility to mount an additional keyboard holder (HA.1024.991))
Height adjustable arm on GCX wall cha... || 1

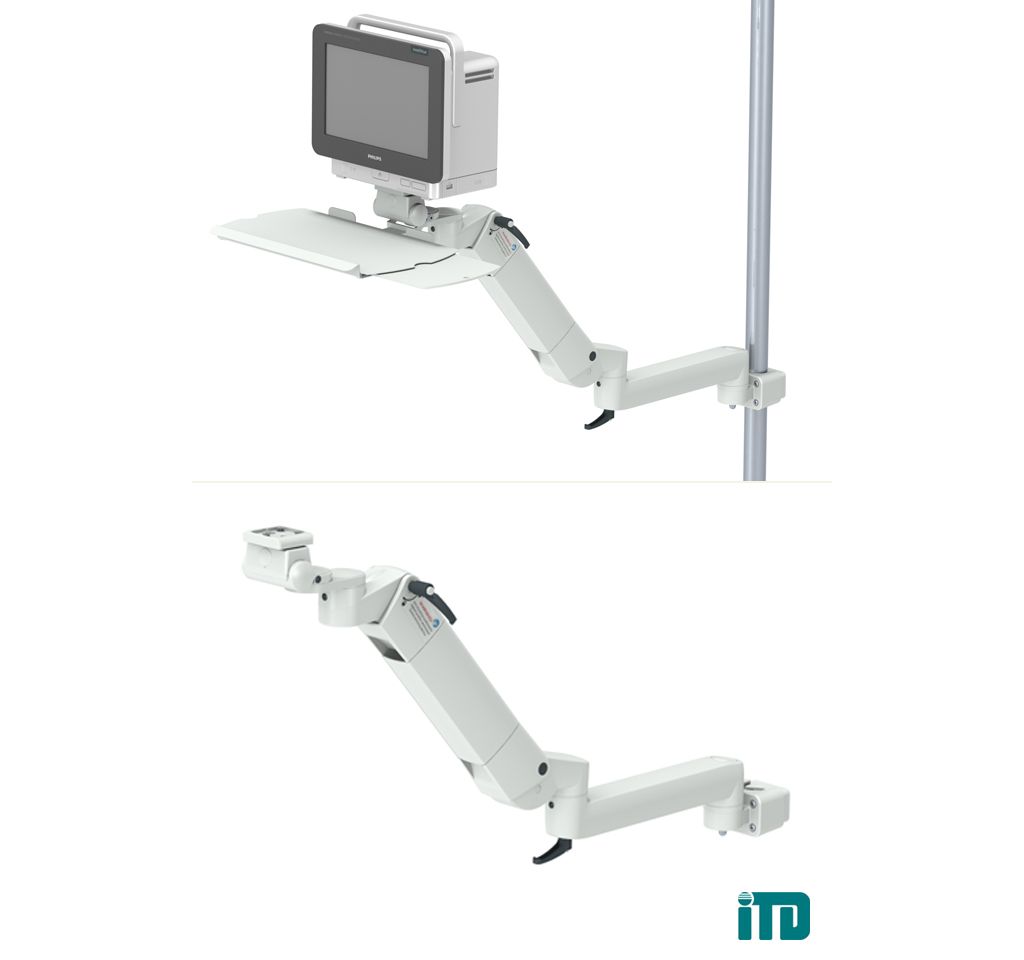

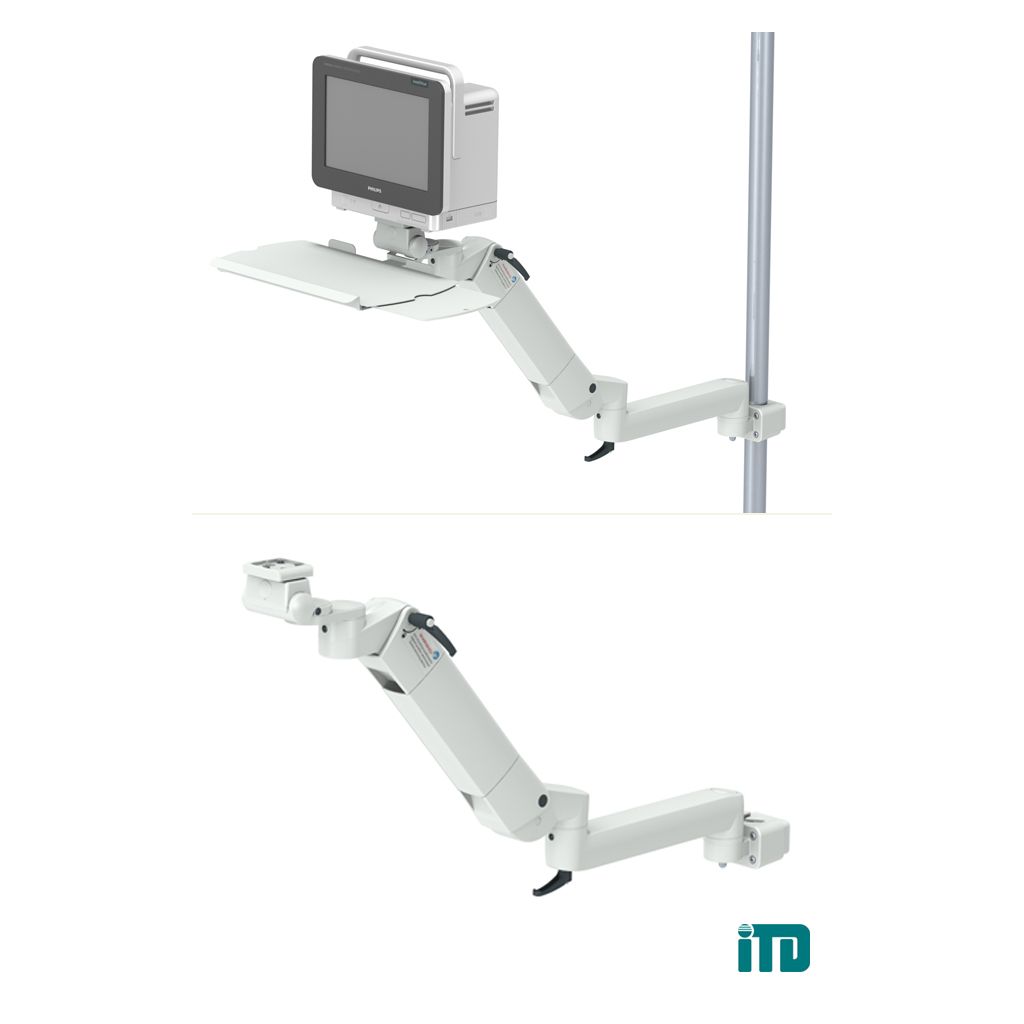

Height adjustable arm with extension on support bar D 25-42mm
ITD part no. HA.2262.903 and ITD part no. HA.2263.903 Kits include: Adapter for support bar D 25-42mm; arm, length 300mm (for ITD part no. HA.2262.903) and 400mm (for ITD part no. HA.2263.903); extension, length 350mm; tilt and swivel unit with an adapter for Philips IntelliVue MX400/MX450/MX500. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit, height adjustable arm, extension and adapter for support bar: RAL 7035 light grey, powder-coated; there is also a possibility to mount an additional keyboard holder (HA.1024.991))
Height adjustable arm with extension ... || 1
