Fluoroscopy 7000 R — CombiDiagnost R90 Premium bundle
DRF digital radiography and remote fluoroscopy solution

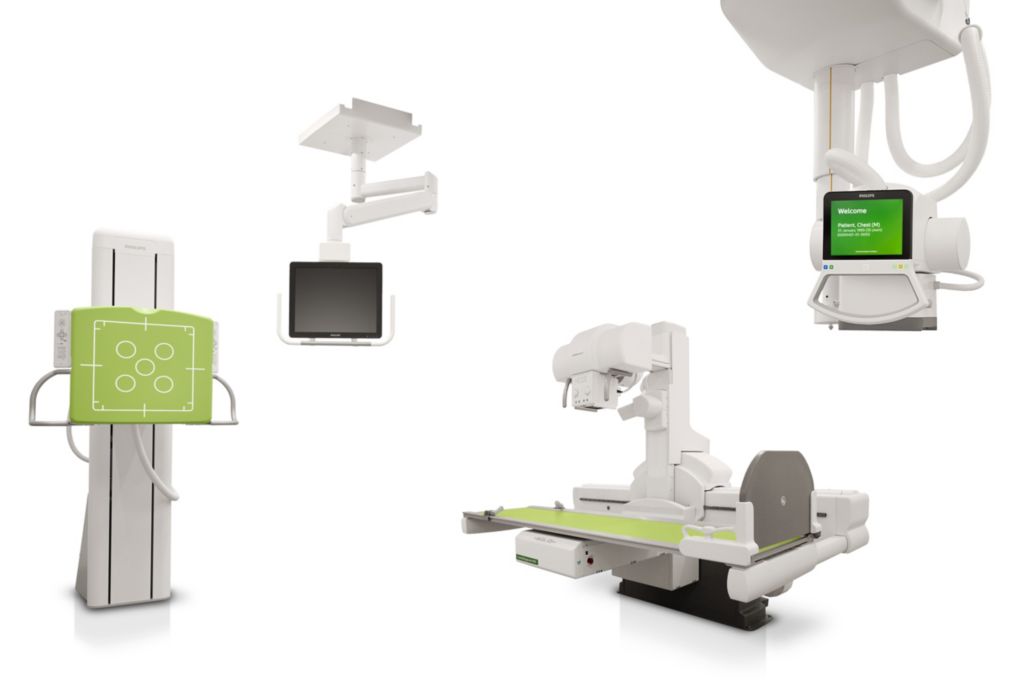

  • Standard product photograph

Fluoroscopy 7000 R — CombiDiagnost R90 Premium bundle

DRF digital radiography and remote fluoroscopy solution
Fully featured bundle of the CombiDiagnost R90, composed of a fluoroscopy table, ceiling suspension with Eleva tube head and live camera, as well as a vertical stand with either a fixed detector or a SkyPlate wireless detector, Skyplate infrastructure kit, one monitor in the examination room and dose reporting in DICOM SR format. This room setup allows performing high quality fluoroscopy procedures, as well as radiography examinations in the same room with high patient throughput and optimal flexibility.

Features
Digital Subtraction Angiography¹ - High quality vessel imaging
With Philips Digital Subtraction Angiography (DSA), blood vessels can be visiualized at UNIQUE image quality. Automatic examination pre-sets support a smooth and efficient workflow in angiography examinations.
Digital Subtraction Angiography¹ - High quality vessel imaging
2-in-1 system - High end radiography and fluoroscopy
Philips CombiDiagnost R90 premium cross-functional system is a true all around performer. Applications include chest, spine, upper and lower extremities, skull, as well as gastro-intestinal exams, arthrography, venography, lymphography, myelography and Digital Subtraction Angiography (DSA).
2-in-1 system - High end radiography and fluoroscopy
SkyFlow Plus - Grid-like contrast for free rad examinations
SkyFlow Plus is the industry’s first scatter radiation correction algorithm for portable X-rays. When doing DR exams without a grid, Philips SkyFlow Plus produces images with grid-like contrast. The software reduces the effect of scattered radiation for non-grid free exposures.
SkyFlow Plus - Grid-like contrast for free rad examinations


Specifications
  • Generator
    Power
    65 kW, 80kW optional
    Tube voltage exposure
    40 - 150 kV
    Exposure techniques
    Manual or Automatic Exposure Control kV-mA-s - Intelligent Exposure (IQX)
    Tube voltage flouroscopy
    40 - 125 kV
    Fluoroscopy techniques
    Continous, Pulsed fluoroscopy, Grid-controlled fluoroscopy (option)
  • Applicational Range
    Fluoroscopy
    Gastro intestinal, urinary studies, ERCP, fluoroscopy guided injections etc
    Radiography
    Skull, ribs, spine, pelvis, upper extremities, long spine, lung, abdomen etc
  • Geometry
    Table tilt angle
    -90°/+90°
    Motorized compressor
    3 kg - 15 kg (6.6 lbs - 33.1 lbs) compression force
    Tube column movement range
    160 cm (63")
    Source to Image Distance (SID)
    113 cm – 183 cm (44" to 72")
    Maximum patient weight
    284 kg (626 lbs) without limitations
    Table height
    65 cm - 133 cm ( 25’’ – 52.2’’)
  • Tube: SRM 0608 ROT GS 505 (GCF)
    Anode heat storage capacity
    800 kHU (593kJ)
    Focal spot
    0.6 /0.8
    Maximum voltage
    125 kV (110 kV in GCF)
  • Tube: SRO 33100 ROT380 (PCF)
    Anode heat storage capacity
    300 kHU (200kJ)
    Focal spot
    0.6 /1.2
    Maximum voltage
    150 kV
  • Dynamic Flat Detector
    Detector Size
    43 cm x 43 cm (17"x17")
    Image matrix size
    2,874 pixel x 2,840 pixel
    Pixel size
    148 µm
    Acquisition mode PCF
    Up to 6 fps
    Acquisition mode GCF
    Up to 30 fps
  • Tube: SRO 33100 ROT380 (for CS)
    Anode heat storage capacity
    300 kHU (200kJ)
    Focal spot
    0.6 /1.2
    Maximum voltage
    150 kV
  • Eleva Tube Head
    Control buttons
    color coded control buttons; capacitive sensor for three-axis brake-release
    Data displayed includes
    Patient data, preview images, generator settings, live camera image (option)
    Full color LCD touch display
    30.7 cm (12.1")
  • Wireless detector: SkyPlate Large
    Type
    Digital Csl (Cesium Iodide) flat detector
    Detector size
    35 cm x 43 cm (14" x 17")
    Image matrix size
    2330 x 2846 pixel
    Active area
    34.48 cm x 42.12 cm (13.6" x 16.6")
  • Wireless detector: SkyPlate Small
    Image matrix size
    1500 x 1920 pixel
    Active area
    22.2 cm x 28.4 cm (8.7" x 11.2")
    Type
    Digital Csl (Cesium Iodide) flat detector
    Detector size
    24 cm x 30 cm (app. 10" x 12")
  • Digital Vertical Stand
    Detector Size
    Fixed 43x43 cm (17" x 17"), alternatively SkyPlate 35x43 cm (14" x 17")
    Motorized tilting
    Optional, -20° to +90°
    Vertical travel
    30 cm - 180 cm (11.8" - 5'11")


Related products

  • mShield Compact network firewall
    Philips mShield protects the system from potential malicious software attacks within the hospital network. It decouples the modality from the network and creates a secure environment. By restricting traffic to only authorized devices, mShield acts to prevent malicious activity directed from the modality to unrelated devices on your hospital network. Once installed it requires almost no maintenance or update. Philips mShield is always recommended if the system becomes part of a hospital network.
  • Clinical QC Clinical QC
    This powerful image statistic tool provides the advanced user with functionality to analyze rejected images regarding operators and rejection reasons. It serves as well for monitoring and analyzing general parameters. The data files can be downloaded in standard format for further usage or archiving on a PC. It perfectly supports the quality standards of the department and teaching situations.
  • Grid-Controlled Fluoro (GCF) DRF x-ray tube
    Grid-Controlled Fluoroscopy (GCF) is an exclusive Philips technology of pulsed fluoroscopy for fully automatic dose management with in-pulse regulation. For pediatric examinations, Philips Grid-Controlled Fluoroscopy (GCF) enables a dose rate reduction of up to 68% compared to Pulse-Controlled Fluoroscopy (PCF), depending on patient type and clinical application.
  • Nearby control trolley Nearby control trolley for fluoroscopy
    The nearby control trolley is a compact and robust movable cart, providing the full set of control functions to work right next to the patient in the examination room.
  • Comfort Move Room motorization
    With Philips Comfort Move, relevant parts of the system geometry are motorized to support a fast, smooth and automated workflow within the daily routine in the X-ray room. The detector can automatically be moved to predefined positions. Automatic Image Stitching exams (optional) can be performed at the vertical stand fully automatically.
  • Automatic Image Stitching Automatic Image Stitching
    The Automatic Image Stitching package is an advanced orthopedic feature for the room to perform long length imaging fully automatically on the table and at the vertical stand (VS) depending on the system configuration with or without a VS.
  • DRF Remote Control Image Navigation Remote Control Image Navigation
    The remote control is a user interface for the RF-viewer in the examination room. It is used for image reviewing and image navigation. The remote control is highly recommended for DSA examinations. Nearby work with a reference monitor in the examination room requires the remote control. Comprising - Remote control - Receiver - Removable battery
  • DRF Reference Monitor in Exam. Room Reference Monitor for Examination Room
    The reference monitor for the examination room is used to display a reference image next to the live image during an examination which is being done nearby controlled, directly at the patient.
  • Digital Subtraction Angiography Package (DSA) Digital Subtraction Angiography Package (DSA)
    Digital Subtraction Angiography package, including Digital Subtraction Angiography (DSA) software license and a reference monitor. With DSA, blood vessels can be visualized at UNIQUE image quality. Automatic examination pre-sets support a smooth and efficient workflow in angiography examinations. The reference monitor for the examination room is used to display a reference image next to the live image during an examination.
  • Small SkyPlate Set Small wireless detector set
    Philips SkyPlate is the next generation of wireless portable detectors. It is an integrated part of the X-Ray system and Eleva platform, and defines a new dimension of flexibility and freedom within the radiography room.
  • Large SkyPlate Set Large wireless detector set
    Philips SkyPlate is the next generation of wireless portable detectors. It is an integrated part of the X-Ray system and Eleva platform, and defines a new dimension of flexibility and freedom within the radiography room.
  • SkyFlow Plus AI-powered scatter correction
    To avoid extensive scatter radiation on images, an anti-scatter grid is sometimes used, typically for anatomies such as chest, abdomen or pelvis. With SkyFlow, Philips presents an innovation and exciting way to enhance image quality for all anatomies where grid was recommended without applying an anti-scatter grid. Such as Abdomen, Chest, Knee, Pelvis, Shoulder. The SkyFlow functionality is especially suitable for bariatric patients. Once the license is installed at the system, it does not need a single technologist interaction and is automatically applied on images.
  • Stretch grip for vertical/movable stand Diagnostic X-Ray Imaging
    • Allow the patient to comfortably keep his arms overhead or beside the wall stand by holding the grip • Ergonomic metallic U-shaped grip providing different grip heights to adapt to patient size • Can be inserted at the top left or right side of the Bucky unit • Wall mounted holder for immediate and safe storage • Rotatable from -90° to +90° around the vertical axis
  • Patient support for stitching Diagnostic X-Ray Imaging
    • Movable stand recommended to facilitate long length acquisitions with a vertical stand • Wide and stable footplate and large height adjustable handles to hold to • Easy to step on due to a low height profile step • Four lockable wheels allow easy placement in front of the vertical stand and storage • Height: 199 cm (78.3"), Width: 111 cm (43.7"), Length: 88.1 cm (34.7") • Weight: 70 kg (154 lbs) • Maximum patient weight: 225 kg (496 lbs) • Including label for color blind users
  • Second laser for fixed SID Second laser for fixed SID
    Adjusting quickly and precisely the source-image distance for a particular projection is important to achieve optimal image quality. That’s why this second laser integrated into the ceiling suspension’s collimator is extremely valuable, providing a simple and visual feedback to the technologist if the source-image distance is correct, without needing to measure the distance manually. The second laser complements the first one in the collimator, making two parallel laser lines visible on the table. Adjusting the tube up & down changes the distance between these lines and the correct source-image distance is achieved when both lines are overlapping and only one line is visible.
  • Bone Suppression Image enhancement technology
    Philips Bone Suppression (Clear Read Bone Suppression by Riverain Technologies) is an innovative image enhancement technology designed to increase the clarity of chest X-Rays by suppressing bone on digital images.
Disclaimer
* When compared to Philips Fluoroscopy 7000 R – CombiDiagnost R90 Plus and Pro bundles.
** When compared to Philips Fluoroscopy 7000 R – CombiDiagnost R90 without monitor in examination room.
