MRCAT Head and Neck

MR-RT clinical application
MRCAT Head and Neck enables the use of MRI as a primary imaging modality for radiotherapy planning of patients with soft tissue tumors in the Head and Neck, without the need for CT. Powered by AI, MRCAT (MR for Calculating ATtenuation) images with CT-like density information are automatically generated from a single, high-resolution MR scan and can be used for CT-equivalent¹ dose calculations and accurate² patient positioning.

Clinical image gallery

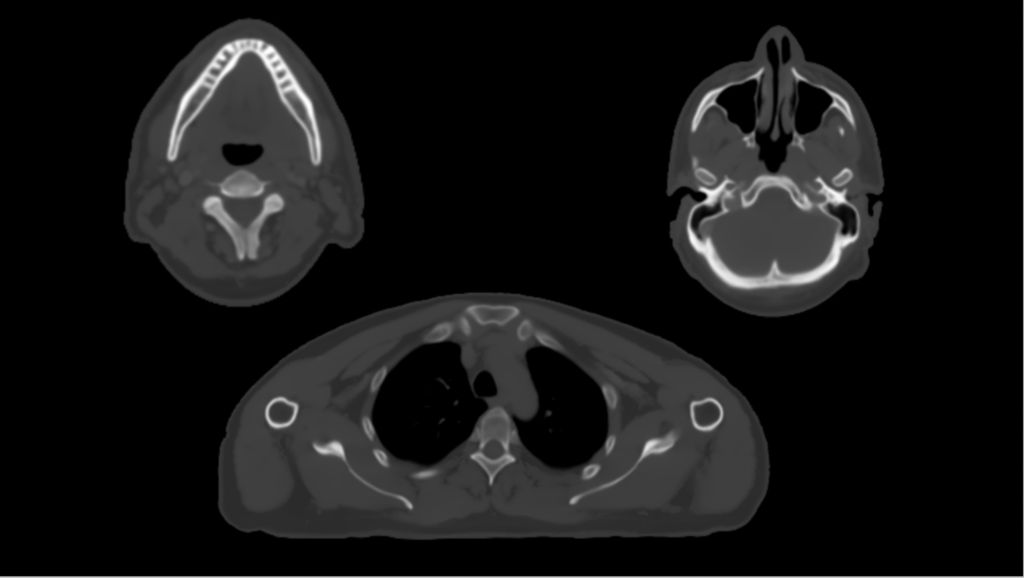

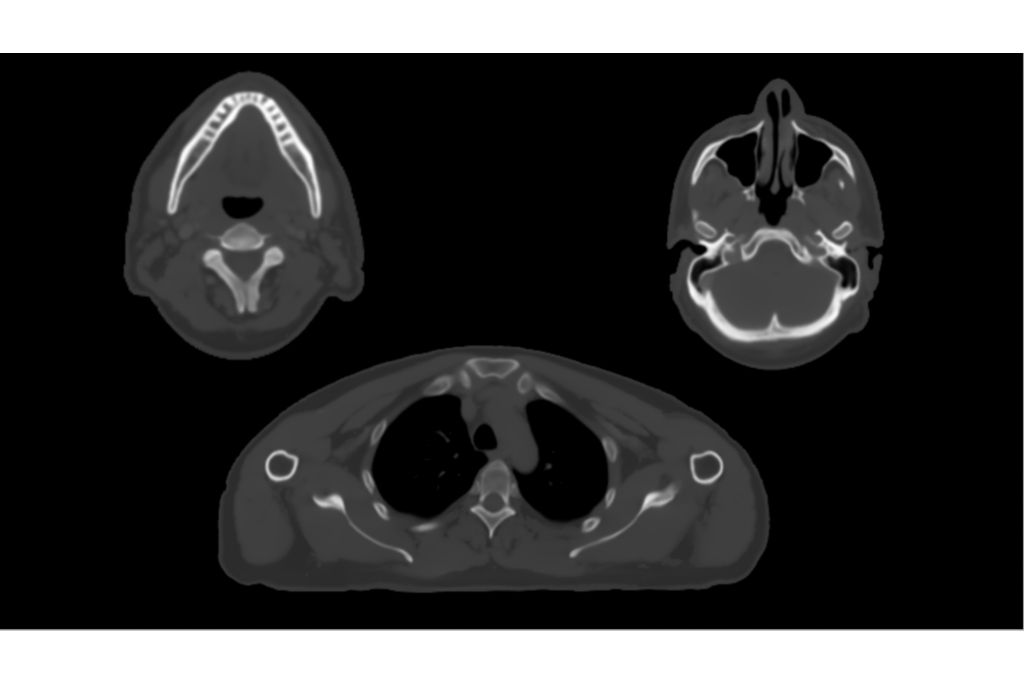

  • MRCAT Head and Neck with continuous Hounsfield Units
    MRCAT Head and Neck with continuous Hounsfield Units

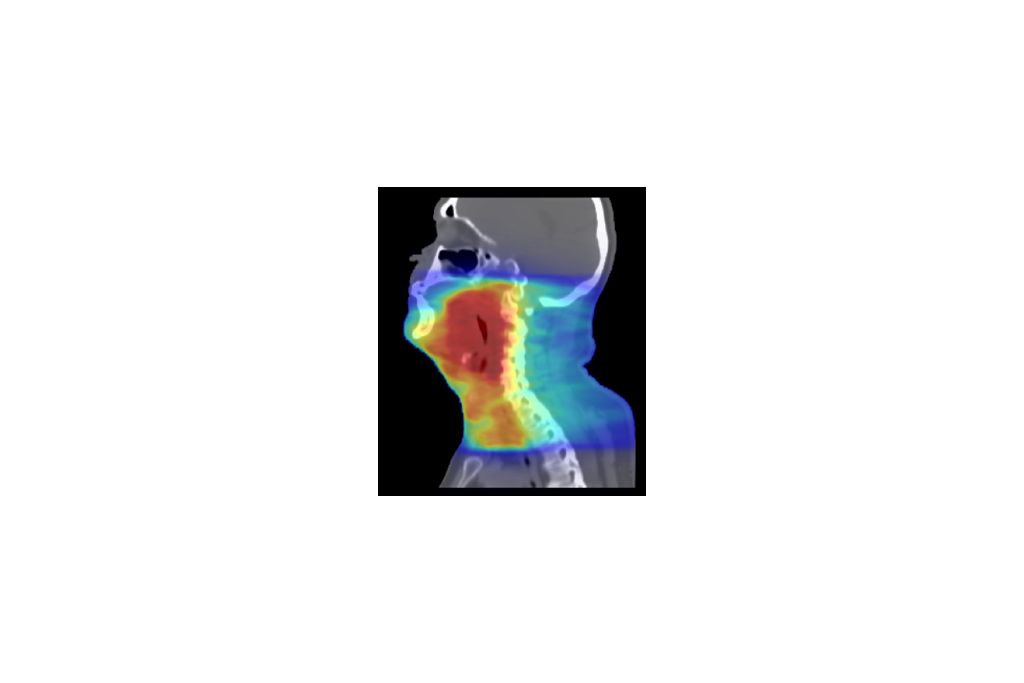

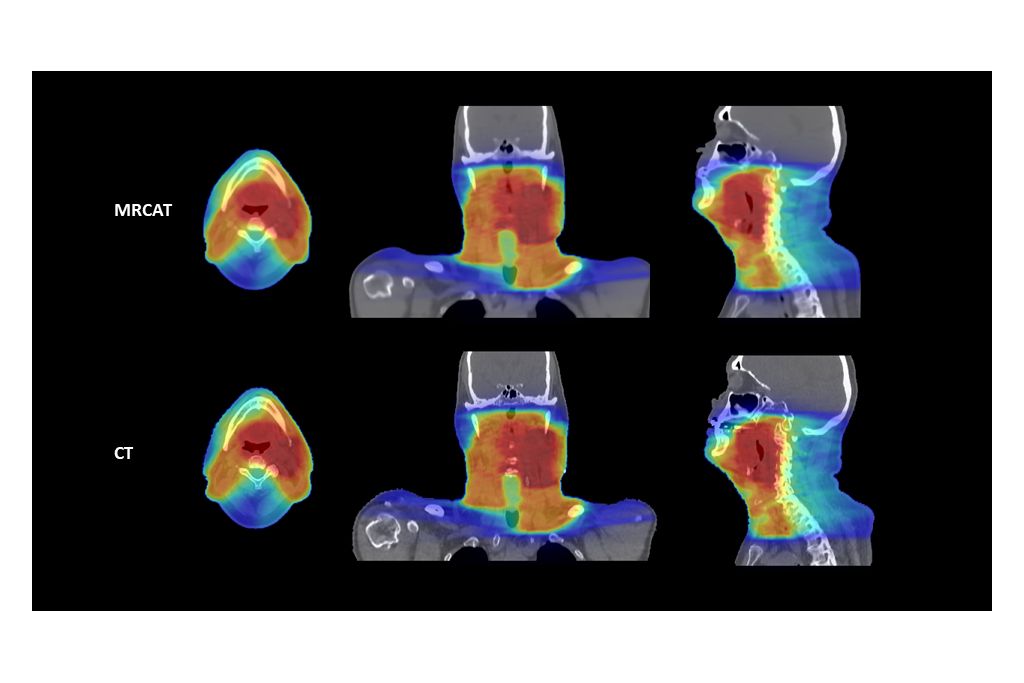

  • MRCAT-based and CT-based dose plans
    MRCAT-based and CT-based dose plans

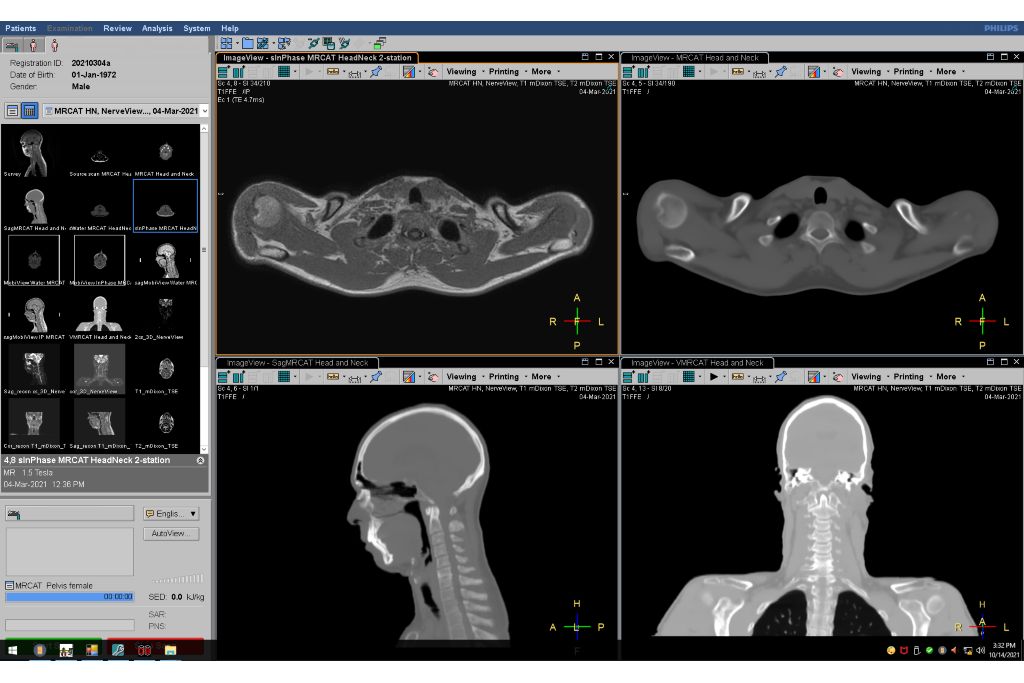

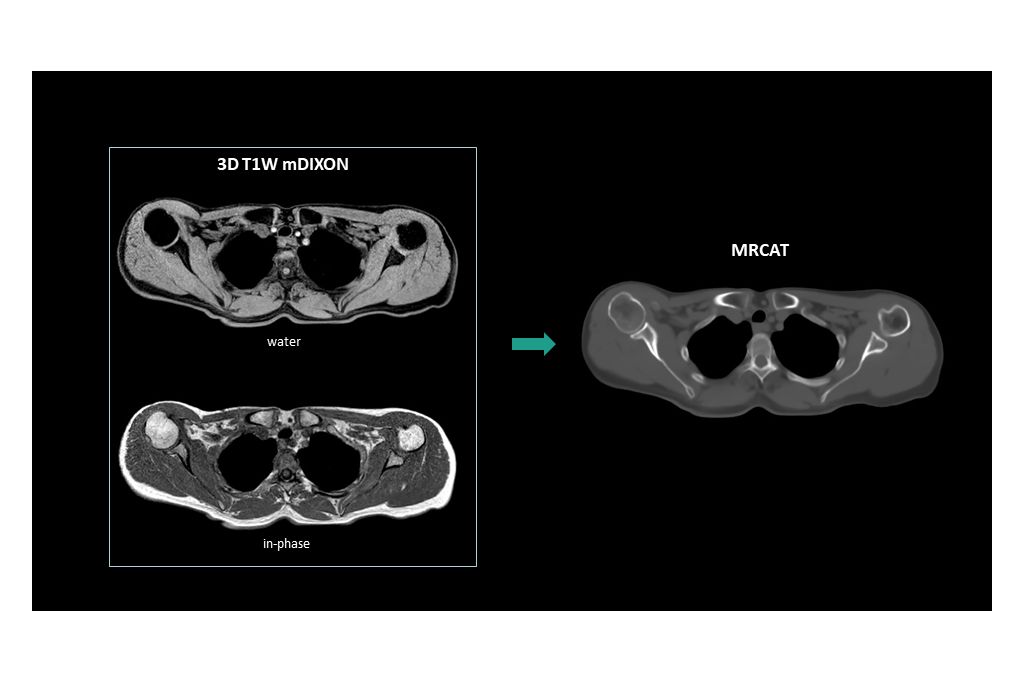

  • MRCAT generation based on single mDIXON source scan
    MRCAT generation based on single mDIXON source scan

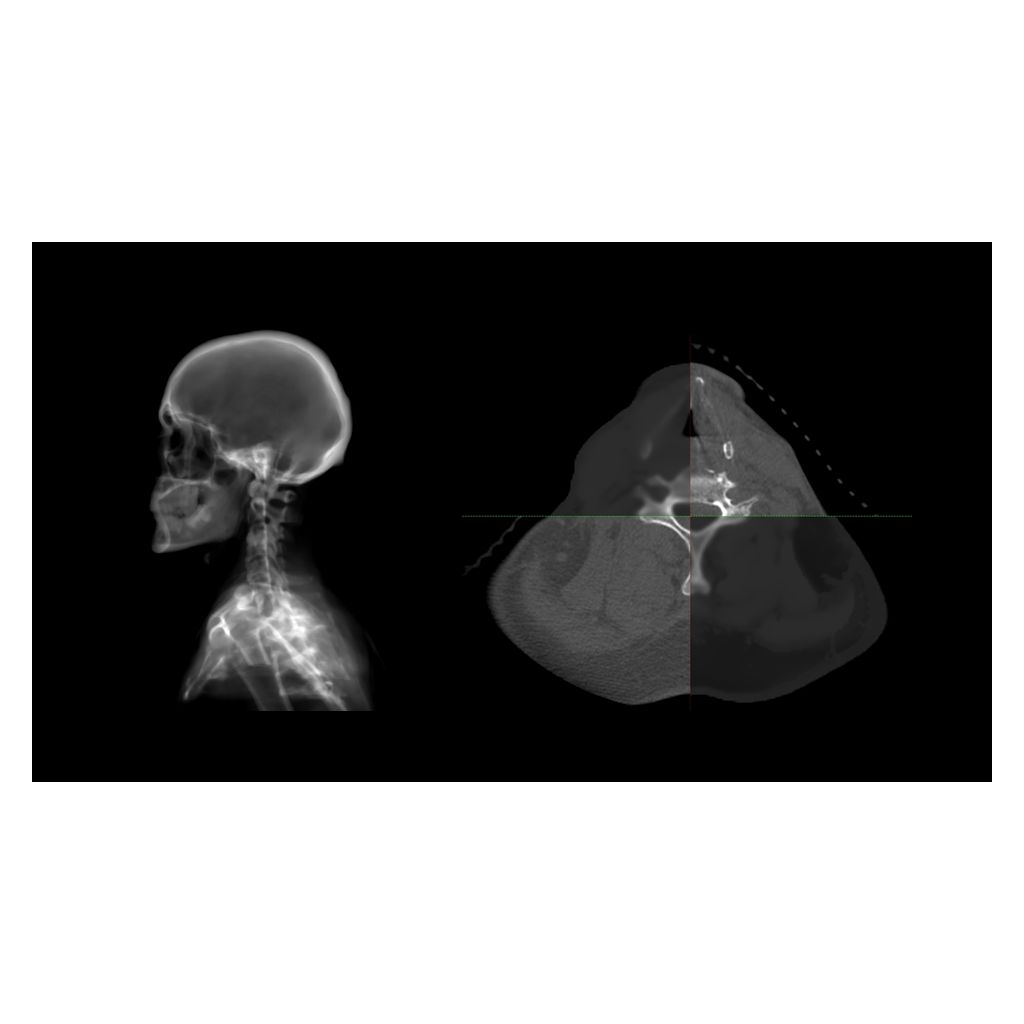

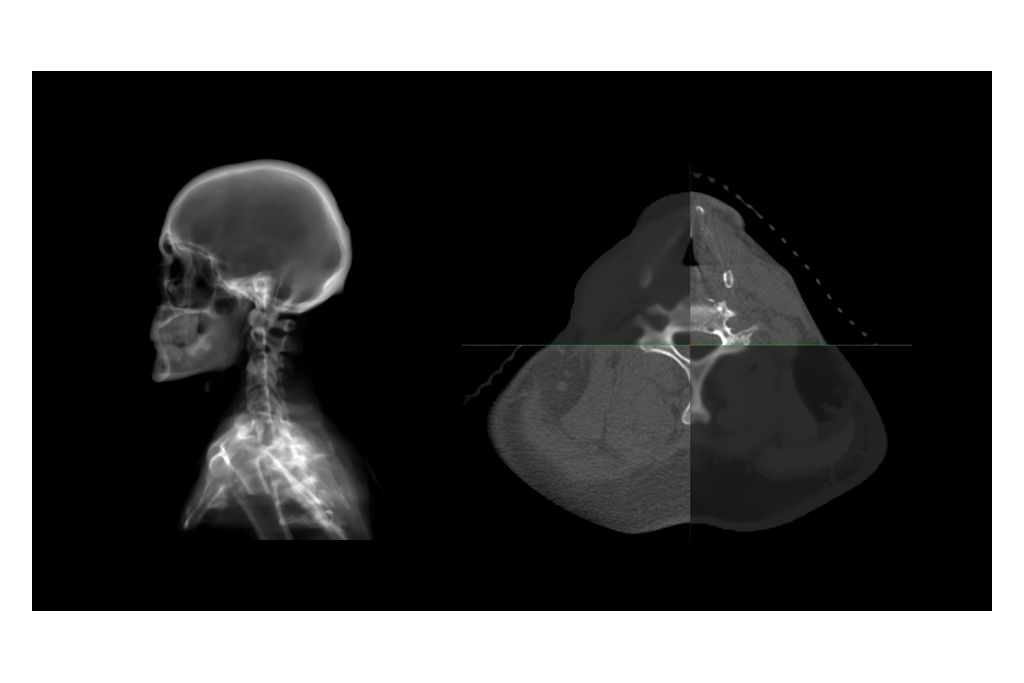

  • MRCAT-based patient positioning
    MRCAT-based patient positioning
Features
Consistent, accurate imaging protocol

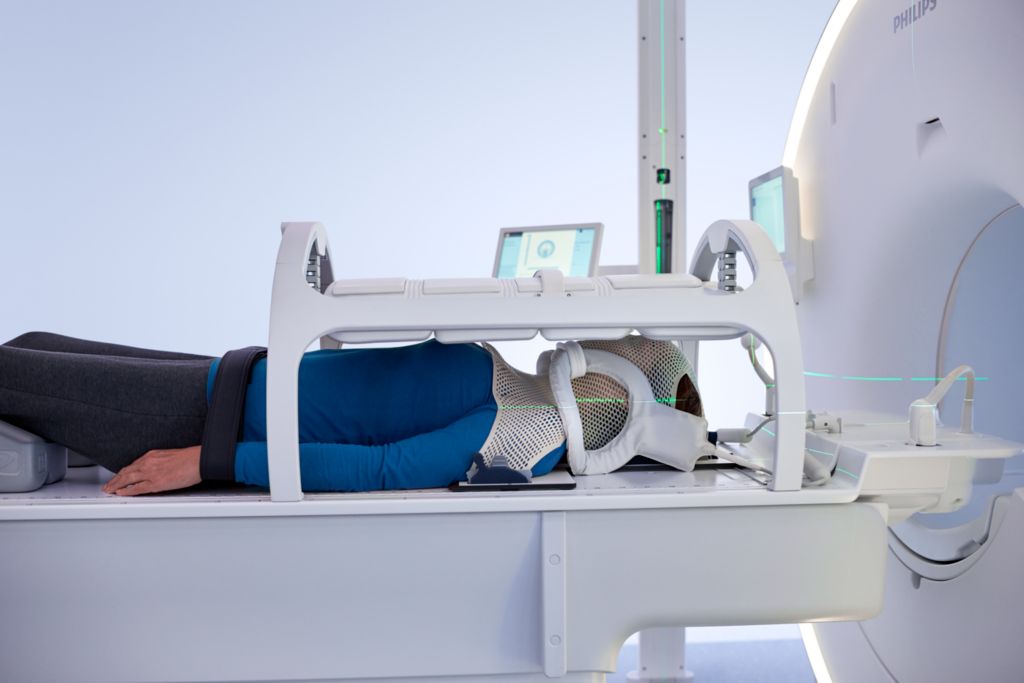

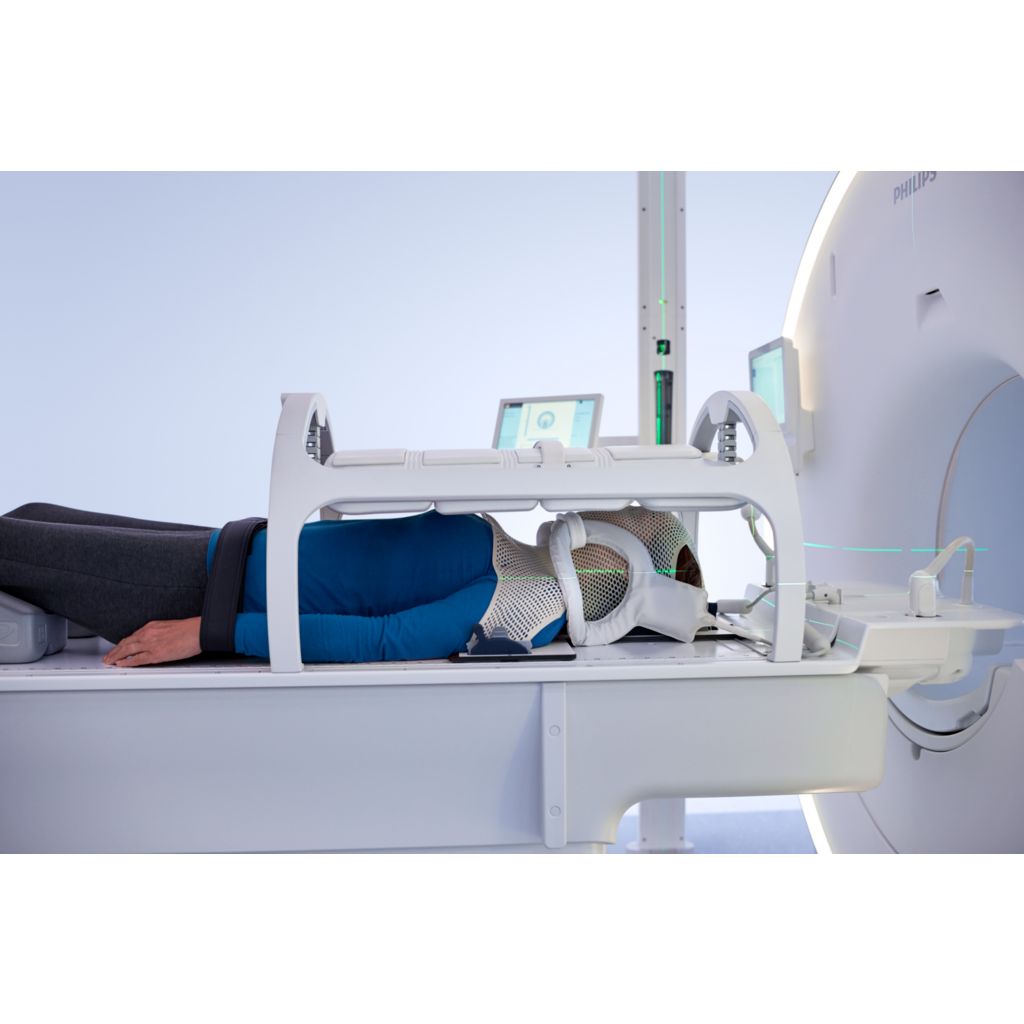

Image acquisition is made easy by a dedicated ExamCard that includes a single, multi-contrast 3D T1W mDIXON scan, which is standardized to deliver consistent results and high geometric accuracy. The MRCAT Head and Neck scan can be acquired before or after contrast agent administration. Additional sequences, e.g. for delineation, can be easily added to the protocol to address your specific clinical needs.
Protocol

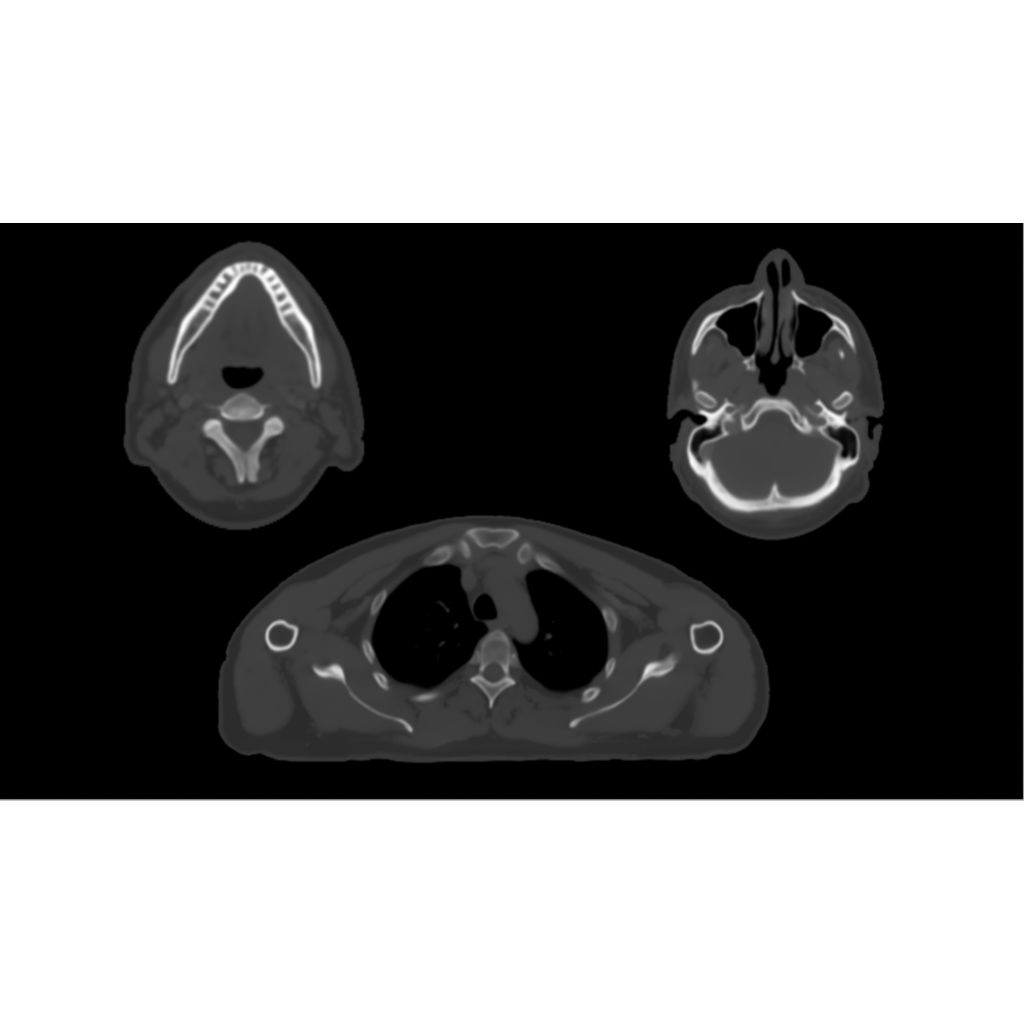

Automatic generation of synthetic CT images using AI
MRCAT Head and Neck uses Artificial Intelligence (AI) for fast computation of MRCAT attenuation maps based on the mDIXON source scan. The resulting MRCAT density maps provide continuous Hounsfield Units for CT-like image appearance and are shown right at the MR console for immediate review.
Synthetic CT images using AI

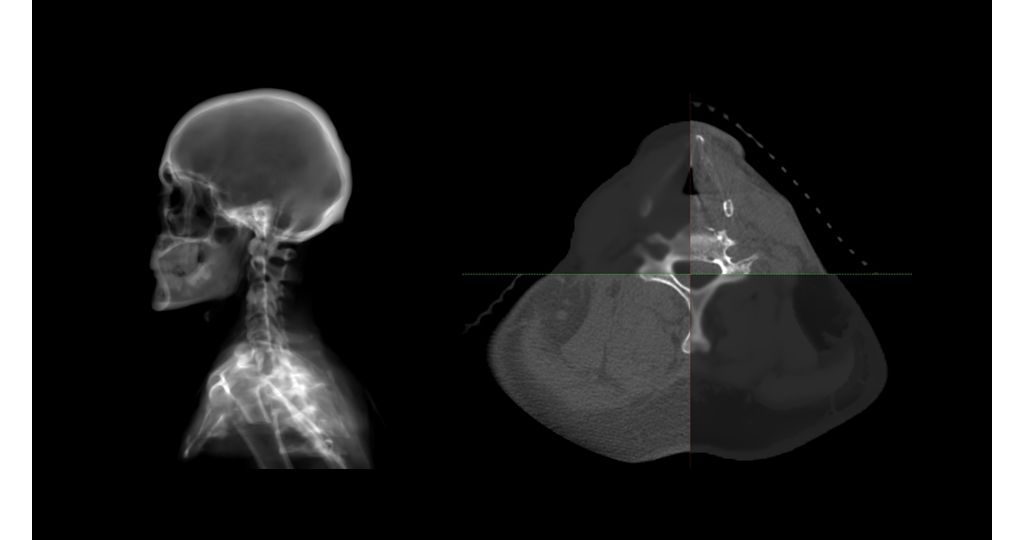

Rely on MRCAT-based patient positioning
You can use MRCAT data for patient positioning verification at the linac that is as accurate² as with conventional CT images. MRCAT’s continuous Hounsfield units, with the look and feel of CT, enable CBCT-based positioning using soft-tissue or bony contrast. You can also use MRCAT data to generate MR-based digitally reconstructed radiographs (DRRs) to allow for patient positioning using bony structures.
MR-CAT patient positioning


Specifications
  • MRCAT Head and Neck
    Compatibility MR system
    • Ingenia MR-RT 1.5T and 3.0T
    • Ingenia Ambition MR-RT 1.5T S and X
    • Ingenia Elition MR-RT 3.0T S and X
    • Ingenia MR-RT Evolution 1.5T and 3.0T

Documentation

Technical data sheet
PDF|301.11 KB

Related products

  • MRCAT Prostate + Auto-Contouring MR-RT clinical application
    As a plug-in clinical application to Ingenia MR-RT, MRCAT Prostate + Auto-Contouring provides attenuation maps and automated, MR-based contours of prostate and organs at risk in as little as 20 minutes – all in a repeatable ‘one-click’ workflow.
  • MRCAT Pelvis MR-RT clinical application
    MRCAT Pelvis lets you plan radiation therapy using MRI as a single modality solution. Within just one MR exam, MRCAT Pelvis provides excellent soft-tissue contrast for target and OAR delineation, and continuous Hounsfield units for dose calculations. MRCAT (MR for Calculating ATtenuation) data can be used for export to treatment planning systems for CT-equivalent** dose calculations. In addition, MR-based imaging enables CBCT-based positioning based on soft-tissue contrast with the look and feel of CT.
  • MRCAT Brain MR-RT clinical application
    MRCAT Brain clinical application allows the use of MRI as the primary imaging modality for radiotherapy planning of primary and metastatic tumors in the brain without the need for CT. Detailed anatomical information for contouring and attenuation maps for dose calculations are both obtained from a single, submillimeter resolution 3D T1W mDIXON MR sequence. Artificial Intelligence (AI) is used for fast computation of continuous Hounsfield units directly on the MR console.

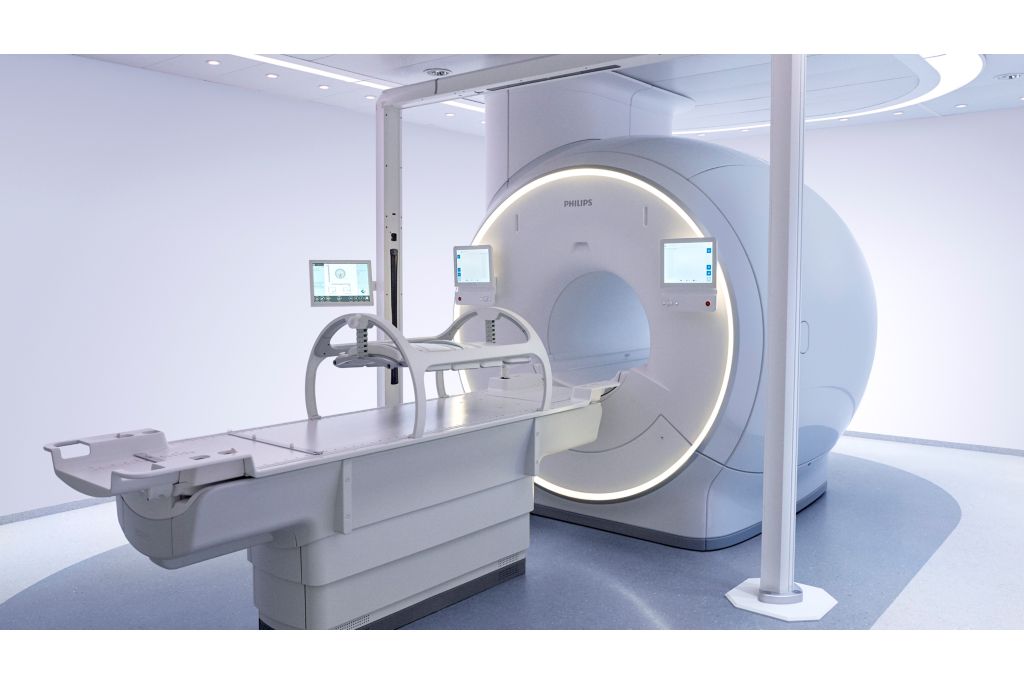

  • Ingenia MR-RT XD Versatility to fit your planning
    The Philips Ingenia MR-RT XD platform harnesses the power and value of MRI for radiation therapy planning. It has been designed around the needs of radiation oncology, with ease-of-use, streamlined integration, and versatility in mind. Central to that concept is the ability to define a tailored approach with customizable functionality that meets your individual clinical, workflow, and budgetary requirements – all to provide better patient care.
Disclaimer
¹ The mean dose in the PTV does not differ more than 1% in MRCAT-based plans as compared to CT-based plans for 95% of the patient cases
² Accurate means: MRCAT-based patient positioning is within 2 mm accuracy for bony anatomy compared to CT-based patient positioning for 95% of cases
³ Accurate means: MRCAT provides < ± 1 mm total system geometric accuracy of image data in < 20 cm Diameter Spherical Volume (DSV) and < ± 2 mm total system geometric accuracy of image data in < 40 cm Diameter Spherical Volume (DSV)* * Limited to 32 cm in z-direction in more than 95% of the points within the volume
MRCAT Head and Neck is not available for sale in all markets.
