IntelliBridge System
Medical device interfacing
  • Standard product photograph

IntelliBridge System

Medical device interfacing
IntelliBridge System is a plug-and-play solution that integrates data from Point-of-Care devices with Hospital Information Systems or Philips IntelliSpace Critical Care and Anesthesia (ICCA). The system provides a consolidated view of patient data for use by caregivers in operating rooms or intensive care units.

Features
Plug-and-play for ease of use
IntelliBridge System EC 5 ID Module provides plug-and-play connectivity between a POC device and an IntelliBridge EC 40/80 Hub. The in-line module is equipped with a device-specific RS-232 connector that connects to the serial data output port on a supported patient care device.
Plug-and-play for ease of use

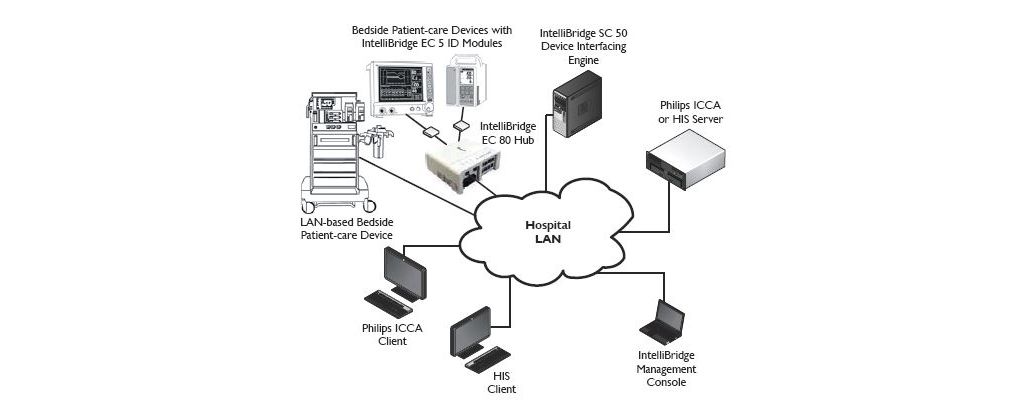

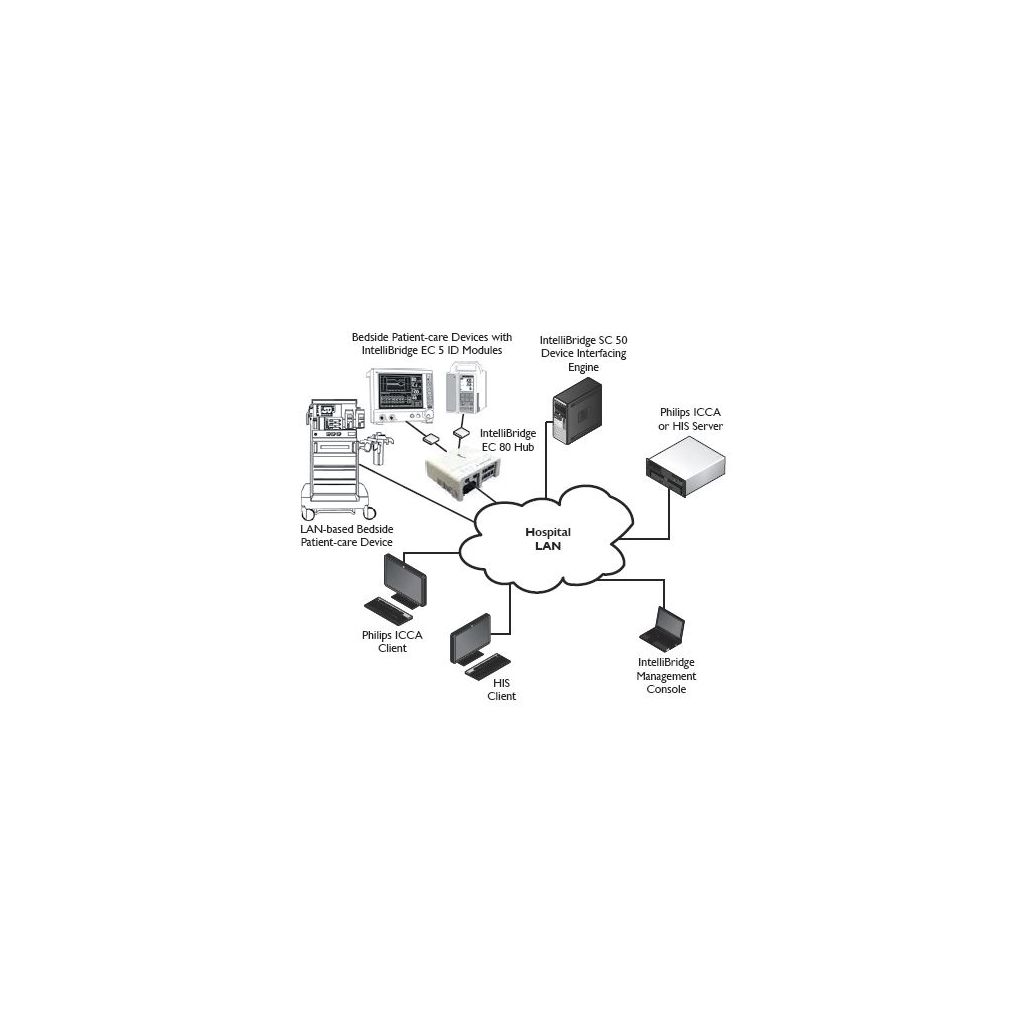

Four components combine for easy data integration
The IntelliBridge System is comprised of four components. The EC5 ID Module connect POC devices to the EC40/80 Hub, which provides connectivity to the hospital LAN. The SC50 Device Interfacing Engine collections patient data from the hubs, converts HL7 format and transmits to the HIS. The Management Console allows support staff to configure and troubleshoot the system.
Four components combine for easy data integration

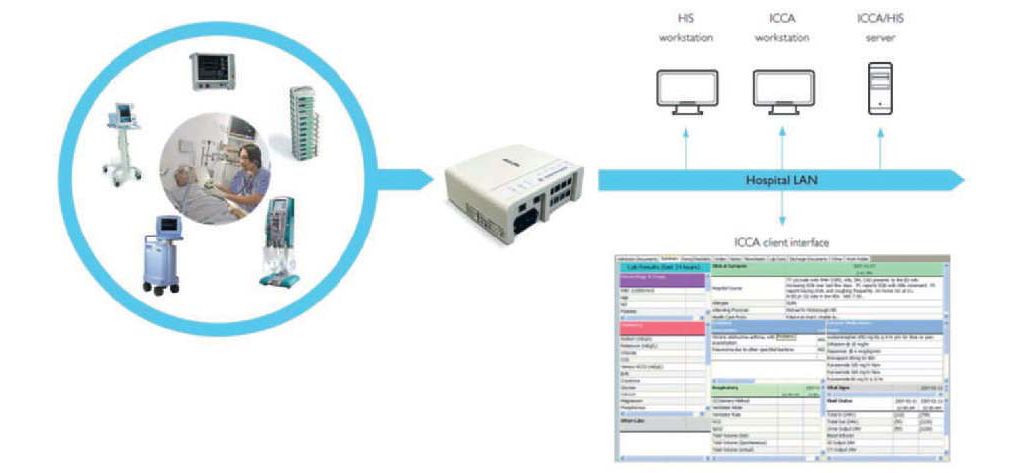

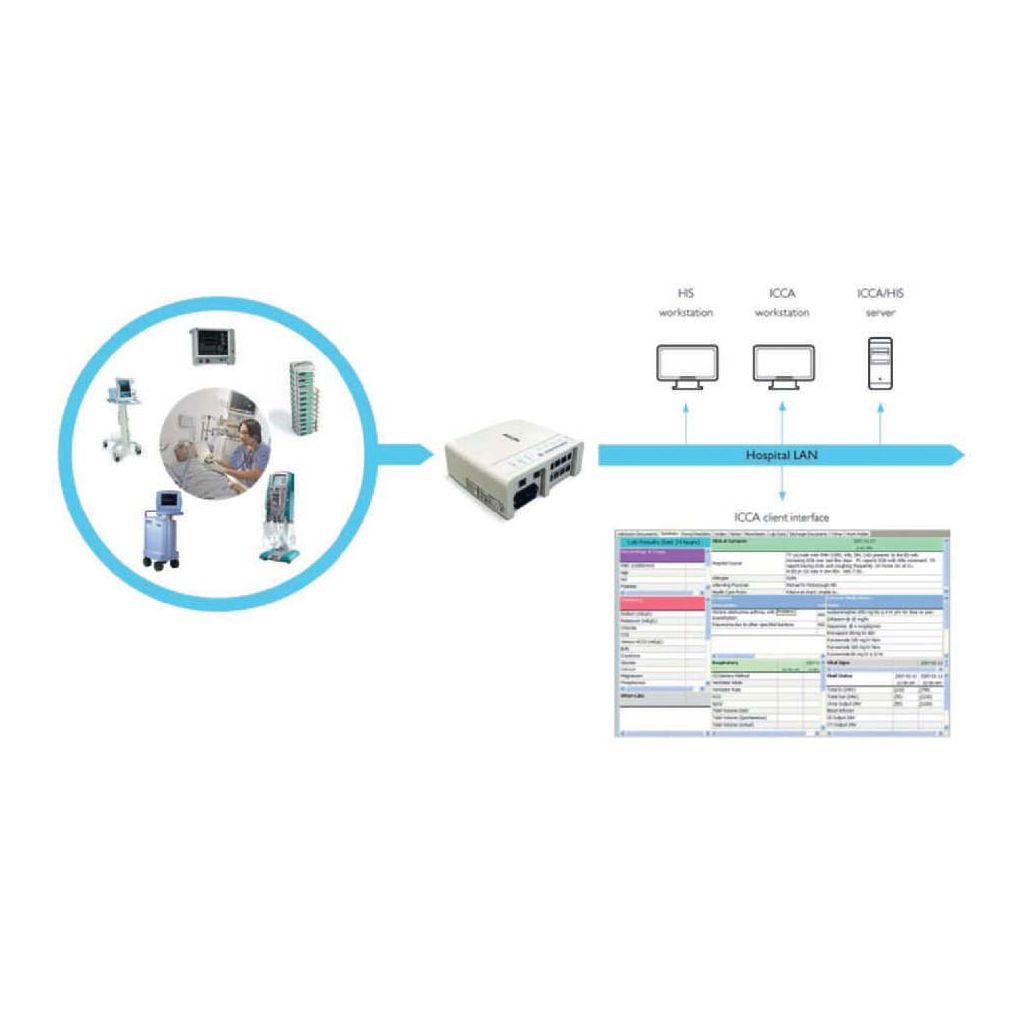

Seamless connectivity, smooth data transmission
The EC40/80 Hub can store up to 25 device drivers to facilitate plug-and-play connectivity of patient-care devices. The hub aggregates data from connected patient-care devices and transmits this data to the IntelliBridge SC50 device interfacing engine.
Seamless connectivity, smooth data transmission


Specifications
  • Physical - IntelliBridge EC40/80
    Dimensions (HxWxD)
    With mounting bracket: 200 * 200 * 75 mm (7.87*7.87*2.59 in)Without mounting bracket: 200 * 200 * 87 mm (7.87*7.87*3.43 in)
    Weight
    1.4 kg (3.09 lb)
  • Environmental
    Operating temperature
    0 to 55 °C (32 to 131 °F)
    Operating humidity
    Up to 95% RH at 40 °C (104 °F)
    Operating altitude
    Up to 3,048 m (10,000 ft)
    Storage temperature
    -40 tp 60 °C (-40 to 140 °F)
    Storage humidity
    Up to 90% RH at 60 °C (140 °F)
    Storage altitude
    Up to 3,048 m (10,000 ft)
  • Electrical - IntelliBridge EC40/80
    Input power
    100 to 240 VAC (auto sensing), 1A, 50 to 60 Hz

Documentation

Product Brochure Philips IntelliBridge System Patient care device connectivity and interoperability solution
PDF|1.68 MB
