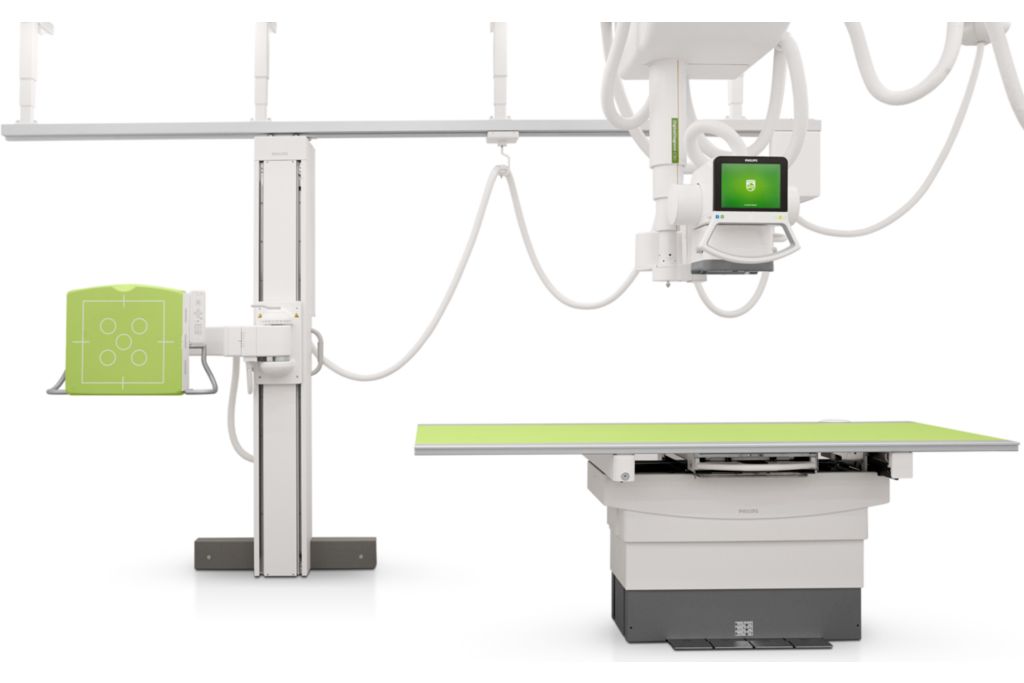

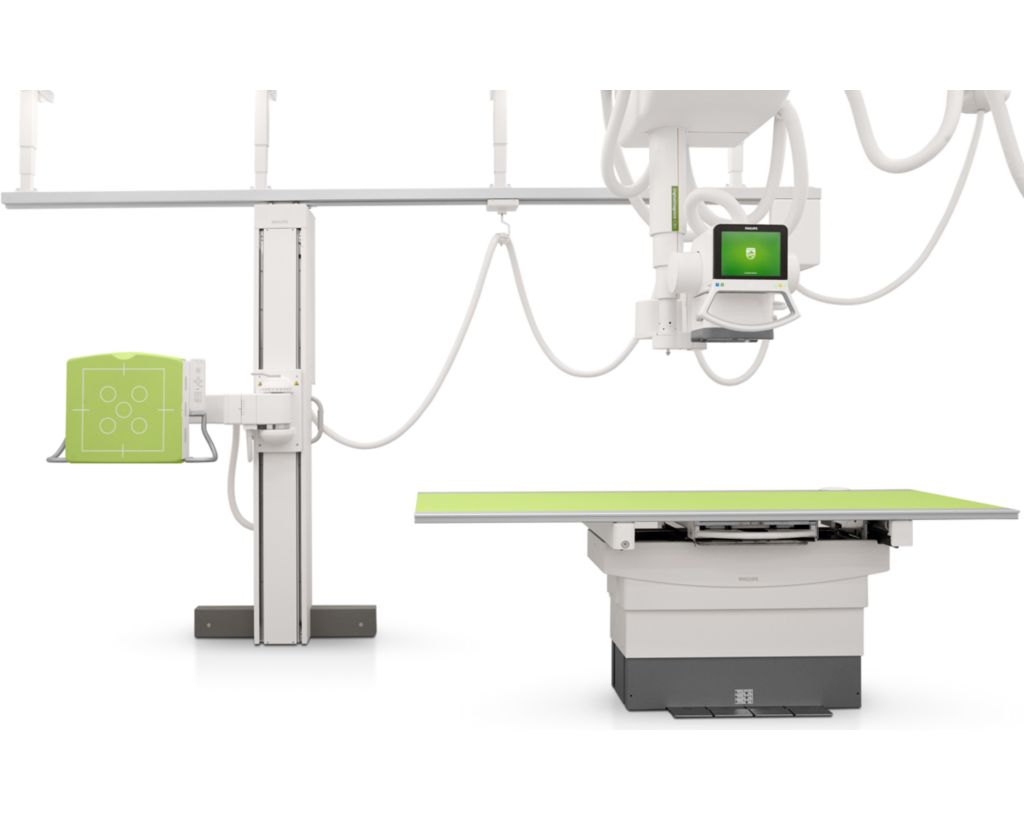

Radiography 7000 C — DigitalDiagnost C90 Premium bundle

Philips mShield protects the system from potential malicious software attacks within the hospital network. It decouples the modality from the network and creates a secure environment. By restricting traffic to only authorized devices, mShield acts to prevent malicious activity directed from the modality to unrelated devices on your hospital network. Once installed it requires almost no maintenance or update. Philips mShield is always recommended if the system becomes part of a hospital network.

This powerful image statistic tool provides the advanced user with functionality to analyze rejected images regarding operators and rejection reasons. It serves as well for monitoring and analyzing general parameters. The data files can be downloaded in standard format for further usage or archiving on a PC. It perfectly supports the quality standards of the department and teaching situations.

Philips VarioFocus ensures optimal image resolution, by avoiding to compromise on which tube focus spot size to use, power load and exposure time. By using both focus spots simultaneously to define a variable focus spot, it automatically balances the power on both focus spots in a defined ratio, ensuring optimal image resolution at any required power. Tube filaments are preserved through power balancing on both focus spots and reduced power load on each of them, which may result in longer tube life.

Philips SkyPlate is the next generation of wireless portable detectors. It is an integrated part of the X-Ray system and Eleva platform, and defines a new dimension of flexibility and freedom within the radiography room.

Philips SkyPlate is the next generation of wireless portable detectors. It is an integrated part of the X-Ray system and Eleva platform, and defines a new dimension of flexibility and freedom within the radiography room.

To avoid extensive scatter radiation on images, an anti-scatter grid is sometimes used, typically for anatomies such as chest, abdomen or pelvis. With SkyFlow, Philips presents an innovation and exciting way to enhance image quality for all anatomies where grid was recommended without applying an anti-scatter grid. Such as Abdomen, Chest, Knee, Pelvis, Shoulder. The SkyFlow functionality is especially suitable for bariatric patients. Once the license is installed at the system, it does not need a single technologist interaction and is automatically applied on images.

Advanced orthopedic feature to perform long lengths imaging fully automatically. After the automatic acquisition of the image set (up to three images), a composite image is created instantly on the DigitalDiagnost Eleva workspot.

• Allow the patient to comfortably keep his arms overhead or beside the wall stand by holding the grip • Ergonomic metallic U-shaped grip providing different grip heights to adapt to patient size • Can be inserted at the top left or right side of the Bucky unit • Wall mounted holder for immediate and safe storage • Rotatable from -90° to +90° around the vertical axis

• Movable stand recommended to facilitate long length acquisitions with a vertical stand • Wide and stable footplate and large height adjustable handles to hold to • Easy to step on due to a low height profile step • Four lockable wheels allow easy placement in front of the vertical stand and storage • Height: 199 cm (78.3"), Width: 111 cm (43.7"), Length: 88.1 cm (34.7") • Weight: 70 kg (154 lbs) • Maximum patient weight: 225 kg (496 lbs) • Including label for color blind users

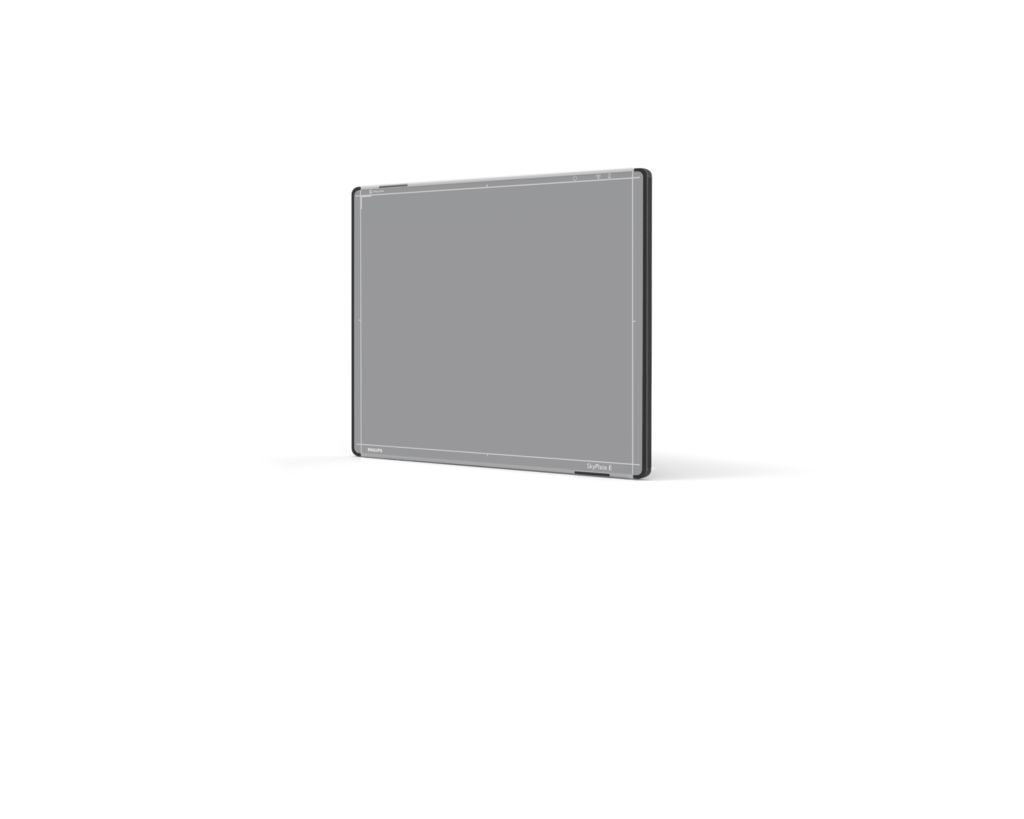

Philips SkyPlate E is the next generation of wireless portable detectors. It is an integrated part of the X-Ray system and Eleva platform and defines a new dimension of flexibility and freedom within the radiography room. Rugged version of the classic SkyPlate, designed for high volume use. The SkyPlate E large covers all relevant anatomy with its large detector size of 35 cm x 43 cm (14 in x 17 in).

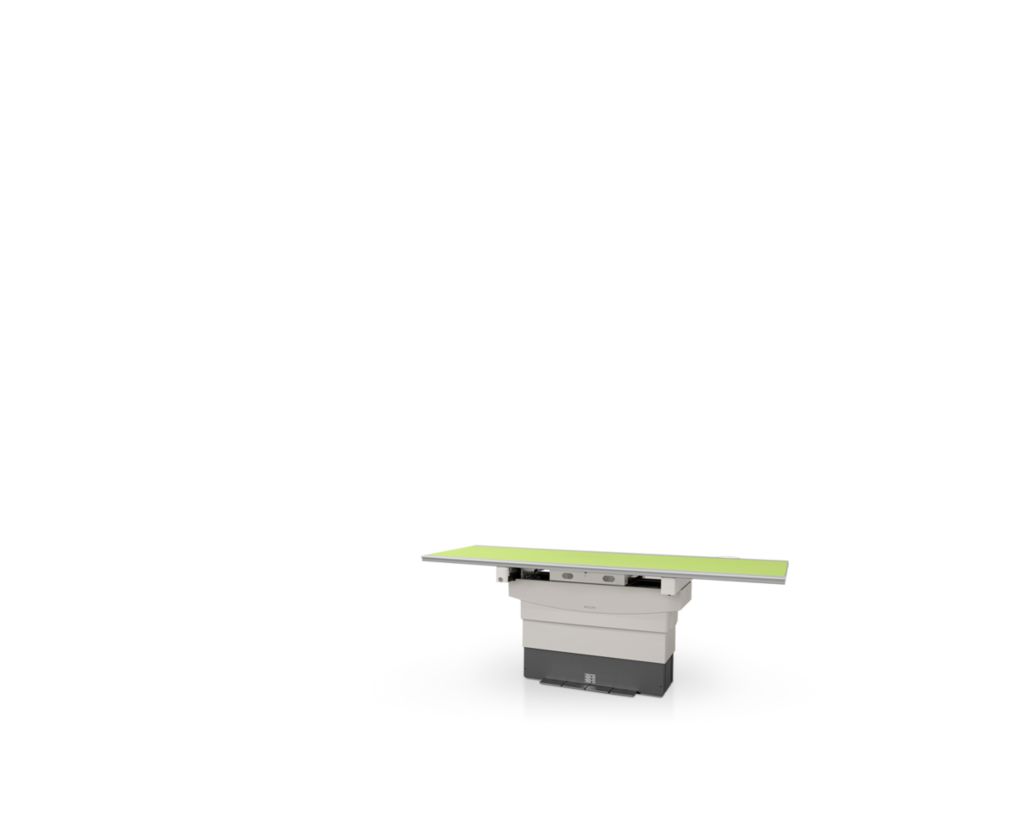

Completely flat, wide carbon fiber tabletop with plain surface, with convenient aluminum rails on both long sides for fixing accessories. This option replaces the standard 240 x 75 cm (7’ 10.5” x 29.5”) tabletop With DigitalDiagnost, the wide tabletop must be selected to allow the combination with an additional VM vertical stand.

Adjusting quickly and precisely the source-image distance for a particular projection is important to achieve optimal image quality. That’s why this second laser integrated into the ceiling suspension’s collimator is extremely valuable, providing a simple and visual feedback to the technologist if the source-image distance is correct, without needing to measure the distance manually. The second laser complements the first one in the collimator, making two parallel laser lines visible on the table. Adjusting the tube up & down changes the distance between these lines and the correct source-image distance is achieved when both lines are overlapping and only one line is visible.

The Live Camera Package takes an existing system to the next level. It enriches the Eleva Tube Head with a live camera for extended Eleva control right in the exam room. This helps alleviate potential imprecise collimation (as with obese patients) and assists with patient positioning. Time consuming retakes that add unnecessary dose can be reduced. The Live Camera Package Upgrade includes the necessary software license, documentation, and installation support. Only compatible with Ceiling Suspension with the Eleva Tube Head.

Philips Bone Suppression (Clear Read Bone Suppression by Riverain Technologies) is an innovative image enhancement technology designed to increase the clarity of chest X-Rays by suppressing bone on digital images.

With Philips Comfort Move, relevant parts of the system geometry are motorized to support a fast, smooth and automated workflow within the daily routine in the X-ray room. The detector can automatically be moved to predefined positions. Automatic Image Stitching exams (optional) can be performed at the vertical stand fully automatically.

With Philips Comfort Position the entire system geometry is motorized to support a fast, smooth, secure and highly automated workflow within the daily routine in the X-ray room. Manual movements for fine adjustments are possible at any time. Fully automatic positioning of detectors in the table and wall stand as well as the tube.
