Fluoroscopy 7000 N — ProxiDiagnost N90 Essential bundle
DRF digital radiography and nearby fluoroscopy solution
HCNRFA113Fluoroscopy systems
Fluoroscopy 7000 N — ProxiDiagnost N90 Essential bundle
DRF digital radiography and nearby fluoroscopy solution
HCNRFA113Fluoroscopy systems
The ProxiDiagnost N90 Essential bundle is designed for institutions wanting to perform exclusively high-quality fluoroscopy procedures in the room. The bundle is composed of a fluoroscopy table, including X-ray tube and dynamic detector.
Features
Eleva Tube Head¹ - Patient centered work
When equipped with a ceiling suspension ProxiDiagnost N90 features the intuitive Eleva Tube Head, a modern smart touch interface in the examimation room. It allows the user to quickly change the most vital parameters for rad imaging directly at the tube head. The Eleva Tube Head offers an optional live camera image for improved positioning support.
Grid-Controlled Fluoroscopy (GCF) - Fully automatic dose adjustment
GCF is an exclusive Philips technology of pulsed fluoroscopy, providing superb image quality at low dose. Reduction of soft radiation is achieved by the use of a grid-switch mechanism in the X-ray tube. Moreover, X-ray parameters kV, mA and time are controlled automatically and in real time within each single pulse (in-pulse control).
Digital Subtraction Angiography¹ - High quality vessel imaging
With Philips Digital Subtraction Angiography (DSA), blood vessels can be visualized at UNIQUE image quality. Automatic examination pre-sets support a smooth and efficient workflow in angiography examinations.
Specifications
- Table Geometry
- Weight capacity Static
- 300 kg (661 lbs)
- Weight capacity Tilting
- 250 kg (551.2 lbs)
- Weight capacity All movements
- 185 kg (407.9 lbs)
- Footrest weight capacity
- 250 kg (551.2 lbs)
- Table tilt angle
- +90° – -30°, optional -45°/-85°
- Tabletop
- 200 cm x 80 cm (78.7" x 31.5")
- Tabletop to detector housing clearance
- 25 – 60 cm (9.8" – 23.6")
- Tabletop height
- 83.3 cm (32.8")
- Detector for table Bucky
- SkyPlate 35 cm x 43 cm (14" x 17")
- Dynamic Flat Detector
- Type
- Cesium Iodide (CsI)
- Detector size
- 43 cm x 43 cm (17" x 17")
- Active area
- 42 cm x 42.6 cm (16.5" x 16.8")
- Pixel size
- 148 μm
- Image matrix size
- 2880 pixel x 2881 pixel
- Acquisition mode continuous fluoroscopy
- Up to 30 fps
- Acquisition mode pulsed fluoroscopy with Grid Controlled Fluoroscopy (GCF)
- 0.5 – 30 fps
- Acquisition mode pulsed fluoroscopy with Pulsed Controlled Fluoroscopy (PCF)
- 0.5 – 6 fps
- Generator
- Power
- 65 kW, 80 kW optional
- Exposure Techniques
- Manual, Automatic, Intelligent Exp. (IQX) in-pulse control , Automatic kV
- Fluoroscopy Techniques
- In-pulse control with Grid or Pulsed Controlled Fluoroscopy
- Tube voltage exposure
- 40 – 150 kV
- Tube voltage fluoroscopy
- 40 – 125 kV
- Vertical Stand (option)
- Vertical travel (motorized)
- 30 – 180 cm (11.8 – 5'11")
- Detector
- Fixed 43 cm x 43 cm (17" x 17") or SkyPlate 35 cm x 43 cm (14" x 17")
- Tilting (motorized)
- Optional, -20° – +90°
- Ceiling Suspension CSM (option)
- Type
- Four-part telescopic column
- Collimator
- Motorized, automatic
- SkyPlate Detector Small (option)
- Type
- Digital CsI (Cesium Iodide) flat detector
- Detector Size
- 24 cm x 30 cm (app. 10" x 12")
- Active area
- 22.2 cm x 28.4 cm (8.7" x 11.2")
- Image Matrix Size
- 1500 pixel x 1920 pixel
- SkyPlate Detector Large (option)
- Type
- Digital CsI (Cesium Iodide) flat detector
- Detector Size
- 35 cm x 43 cm (14" x 17")
- Active area
- 34.5 cm x 42.1 cm (13.6" x 16.6")
- Image Matrix Size
- 2330 pixel x 2846 pixel
- Applicational Range
- Fluoroscopy
- Gastro intestinal, urinary studies, ERCP, fluoroscopy guided injections etc
- Radiography
- Skull, ribs, spine, pelvis, upper extremities, long spine, lung, abdomen etc
- Eleva Tube Head
- Control buttons
- color coded control buttons; capacitive sensor for three-axis brake-release
- Data displayed includes
- Patient data, preview images, generator settings, live camera image (option)
- Full color LCD touch display
- 30.7 cm (12.1")
Related products
- Philips mShield protects the system from potential malicious software attacks within the hospital network. It decouples the modality from the network and creates a secure environment. By restricting traffic to only authorized devices, mShield acts to prevent malicious activity directed from the modality to unrelated devices on your hospital network. Once installed it requires almost no maintenance or update. Philips mShield is always recommended if the system becomes part of a hospital network.
- Grid-Controlled Fluoroscopy (GCF) is an exclusive Philips technology of pulsed fluoroscopy for fully automatic dose management with in-pulse regulation. For pediatric examinations, Philips Grid-Controlled Fluoroscopy (GCF) enables a dose rate reduction of up to 68% compared to Pulse-Controlled Fluoroscopy (PCF), depending on patient type and clinical application.

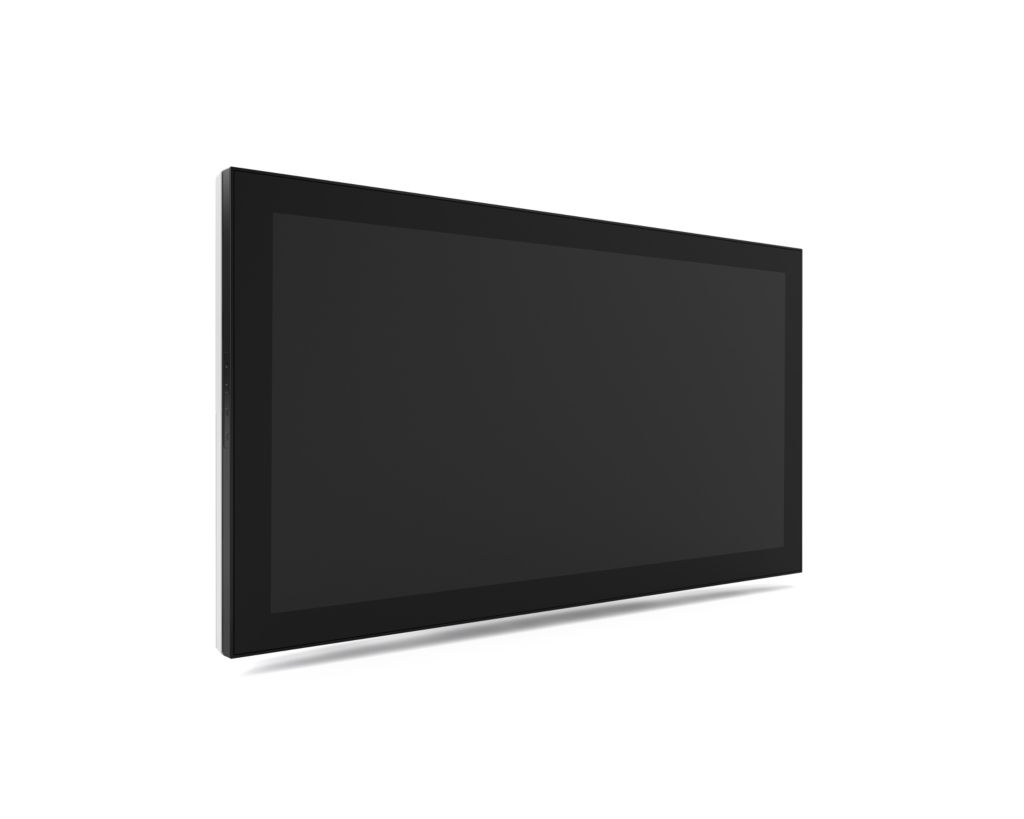

- Monitor to be placed in examination room. The monitor is exclusively provided for the connection to third party medical devices, e.g. endoscopes or ultrasound devices. It shall not be connected to the CombiDiagnost R90. Only connect video sources that are medical devices. Philips is not responsible for the function of the external equipment or for the performance of the established video link.
