SmartCT Roadmap
Live 3D image guidance tool
SmartCT Roadmap
Live 3D image guidance tool

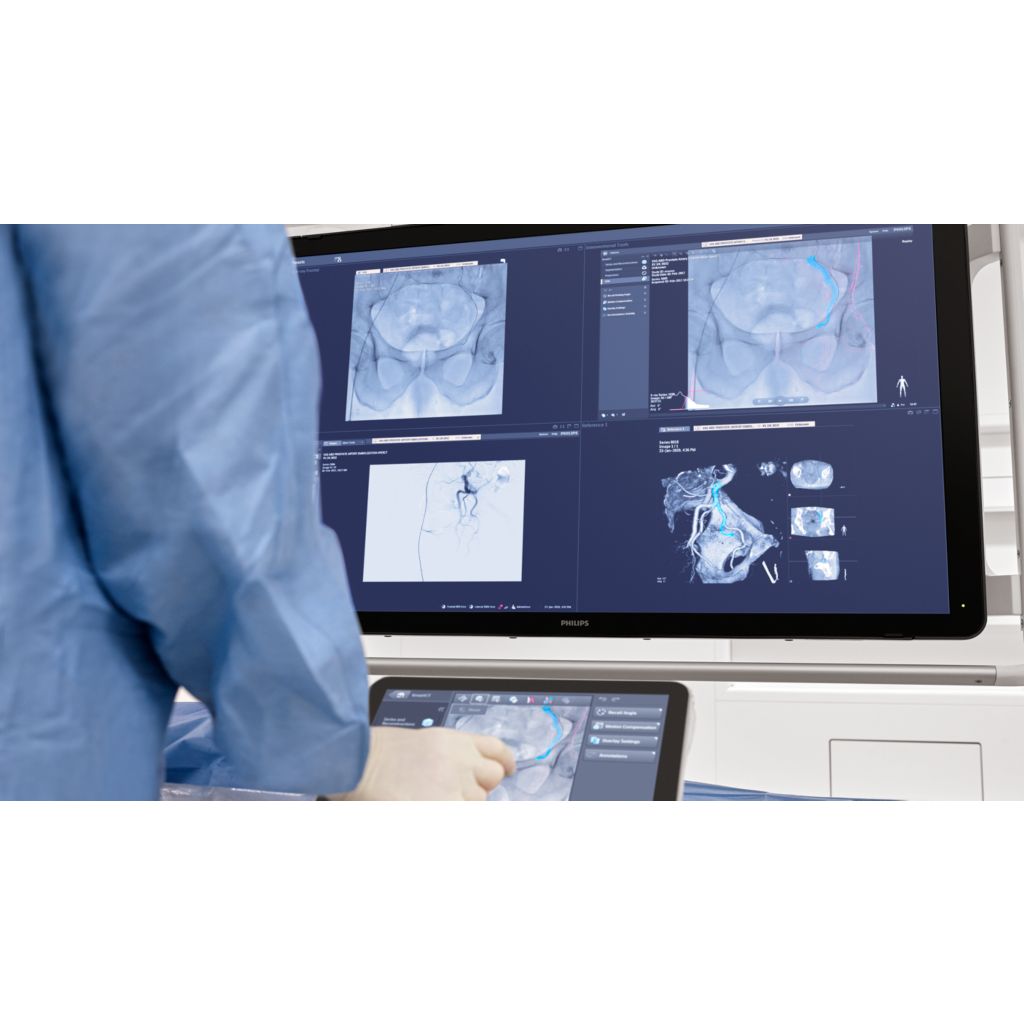

SmartCT Roadmap facilitates complex interventions by providing live 3D image guidance that can be segmented, using SmartCT Angio or SmartCT Soft Tissue, to emphasize target vessel and lesions, aiding guidewire and catheter navigation through complex vessel structures. All controlled via the touch screen at the table.
Dynamic 3D guidance tool for a full range of applications
Aids guidewire and catheter navigation through complex vessel structures
Adapts to position changes in real-time
Clinical image gallery
Features
Dynamic 3D guidance
SmartCT Roadmap overlays a 3D reconstruction of the vessel tree, vessel segments or annotations, acquired with a SmartCT acquisition mode on your Philips interventional X-ray system, with live fluoro images. It provides a full 3D view for guidewire and catheter navigation through complex vessel structures.
Follow the advancement of devices in real-time 3D
SmartCT Roadmap lets you follow the advance of guidewires, catheters, needles and coils in real-time. To enhance visualization, it offers an enlarged full-screen mode and digital zoom. SmartCT Roadmap automatically adjusts the 3D images to gantry changes and any lateral or longitudinal table movements.
Adapts to position changes in real-time
SmartCT Roadmap adapts in real-time to changes in C-arm angulation and rotation, field of view and source to image distance. All modes of use can be controlled at table side and are fully dynamic.
