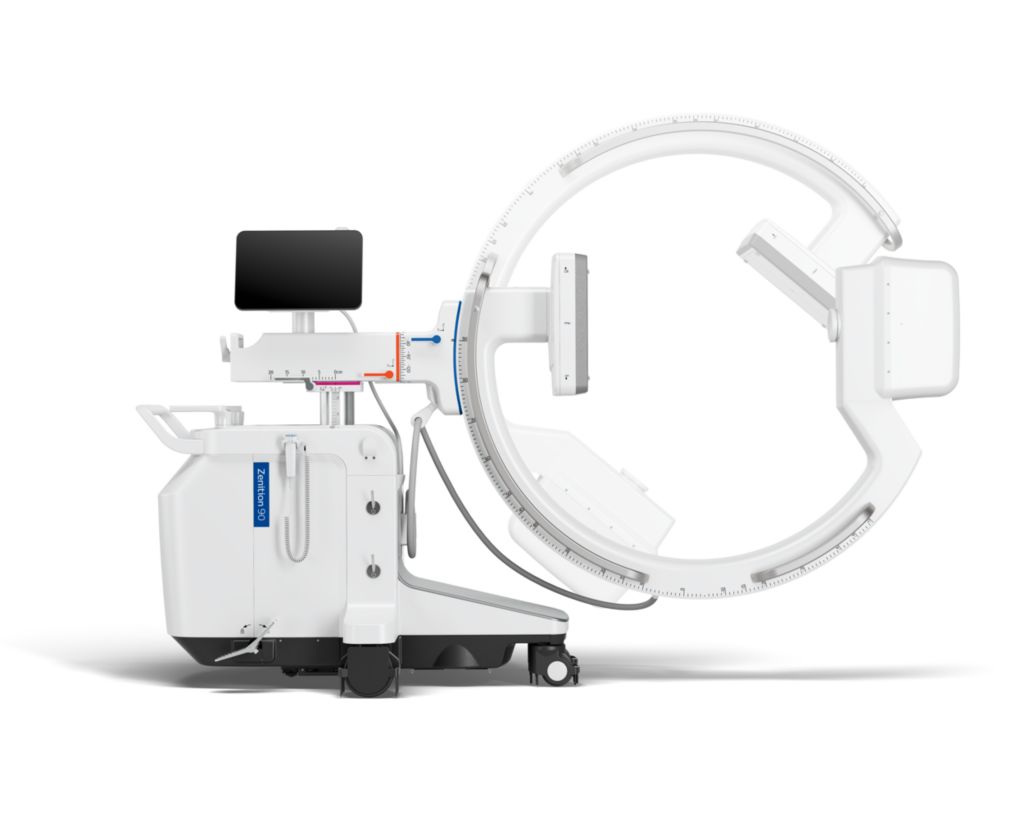

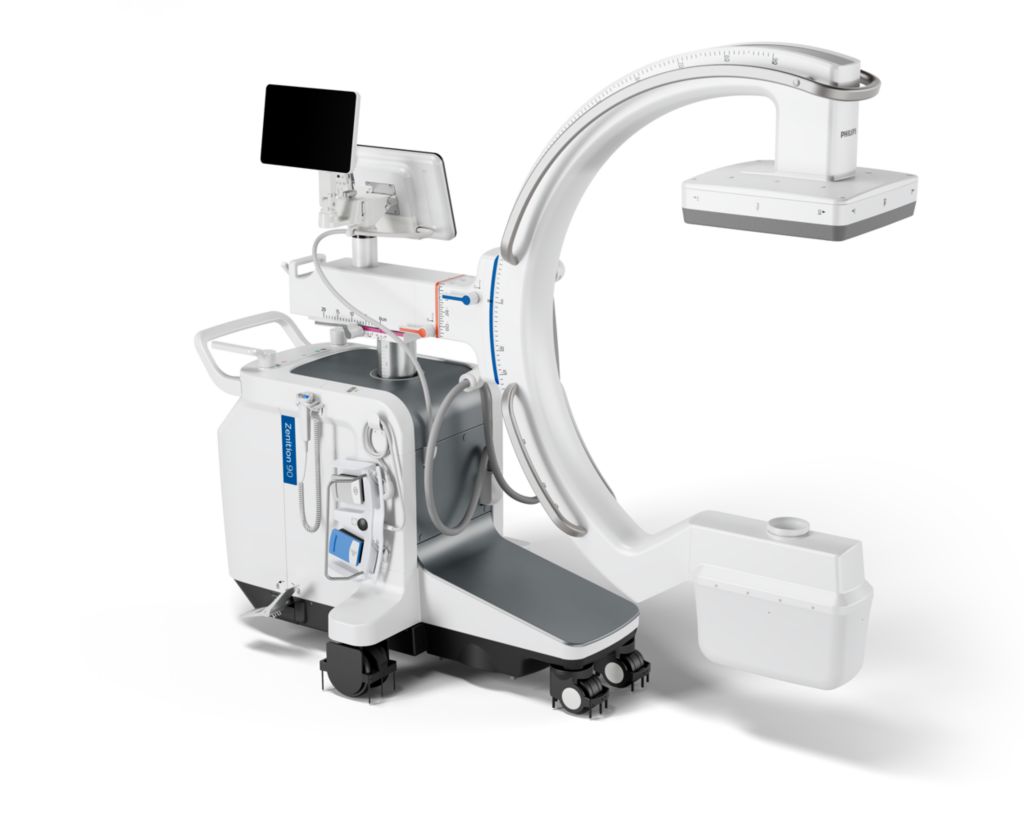

Zenition 90
Mobile C-arm with flat detector
Zenition 90
Mobile C-arm with flat detector

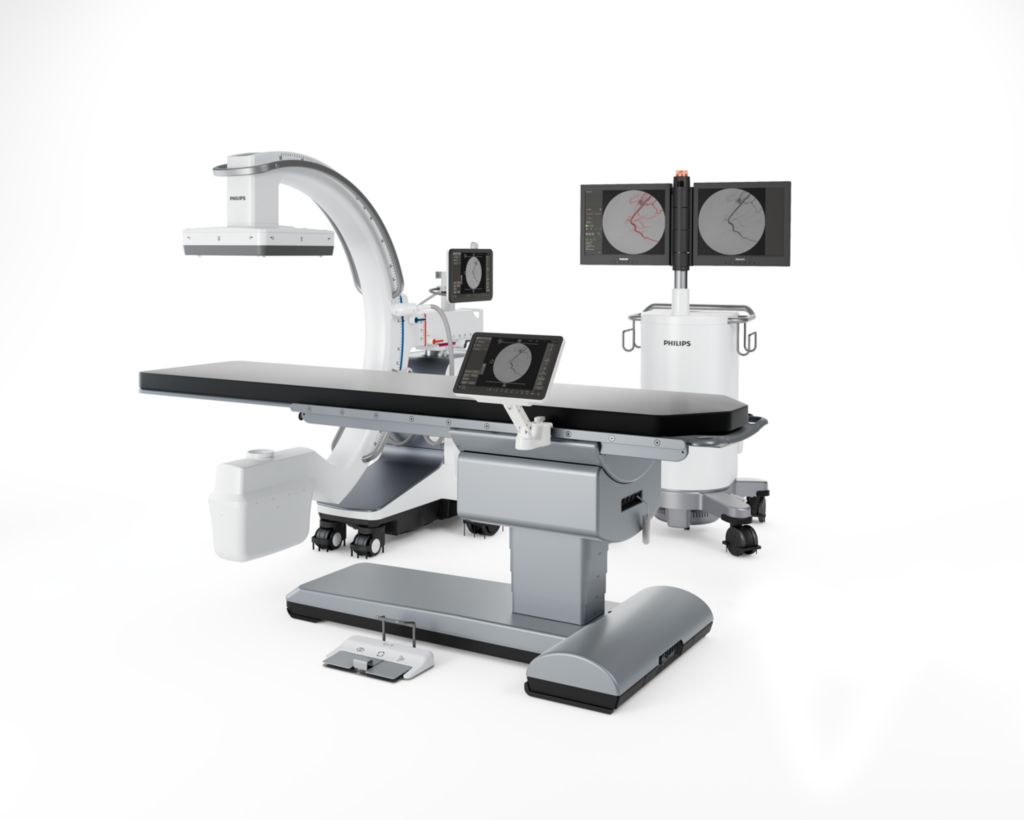

Experience exceptional imaging clarity and flexibility for a wide variety of procedures with the Philips Image Guided Therapy Mobile C-arm System 9000 – Zenition 90. This easy-to-use system strengthens our proven Zenition series with new automated workflows and improved image consistency. Take advantage of the Touch Screen Module for image control from sterile areas in the operating room, for even more efficiency.

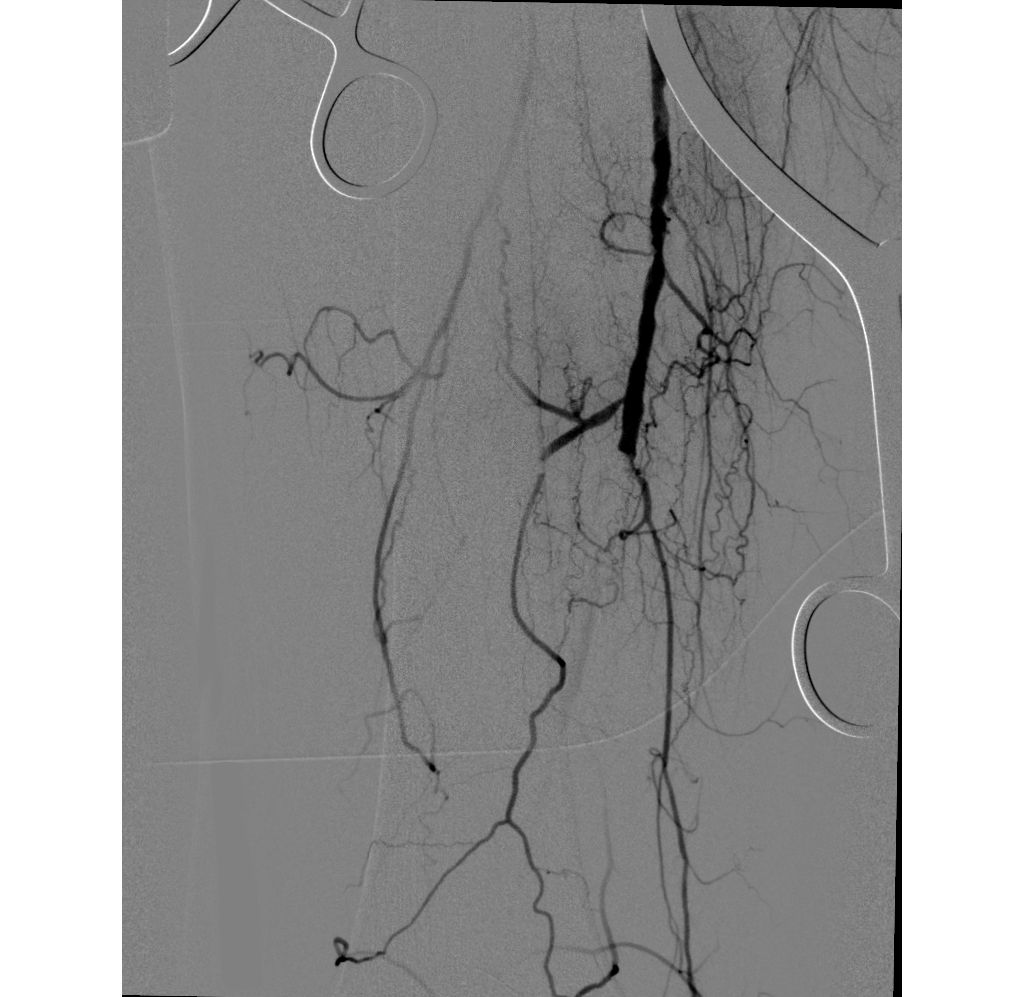

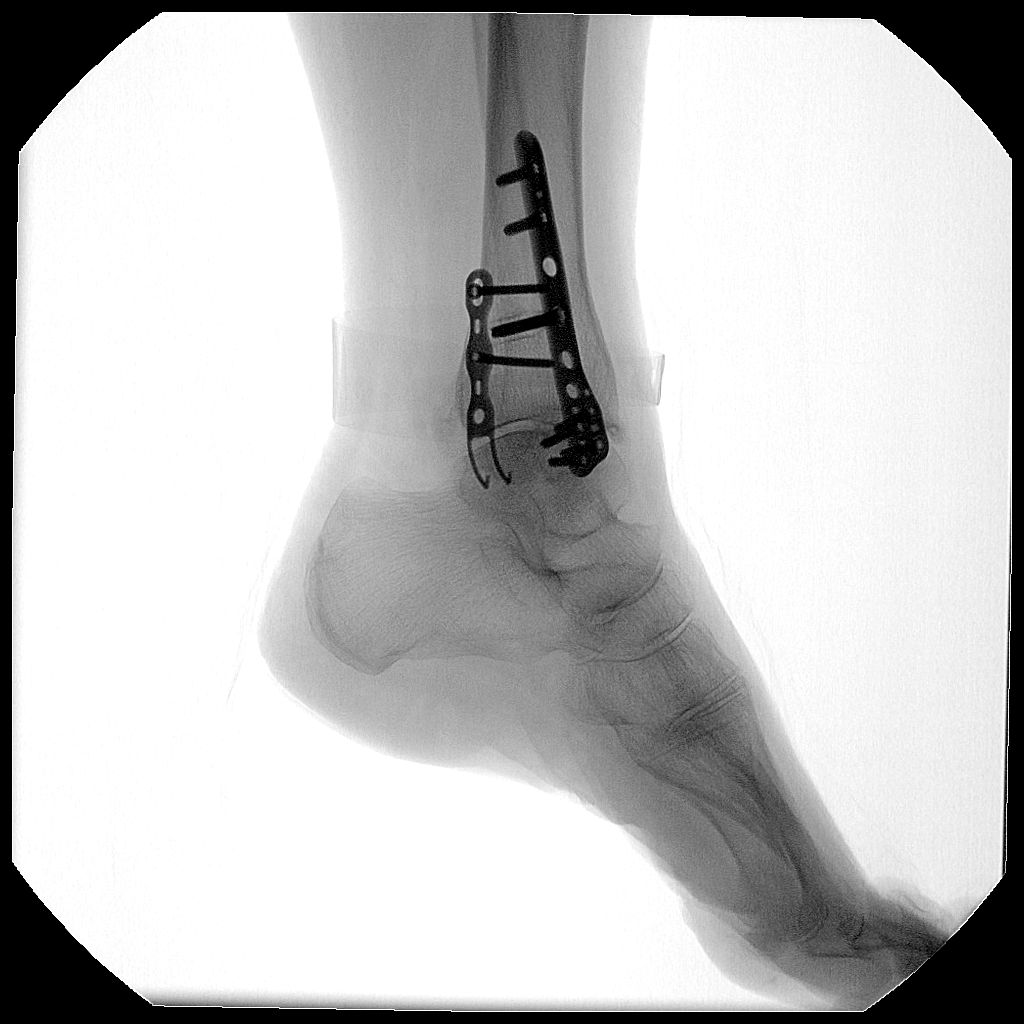

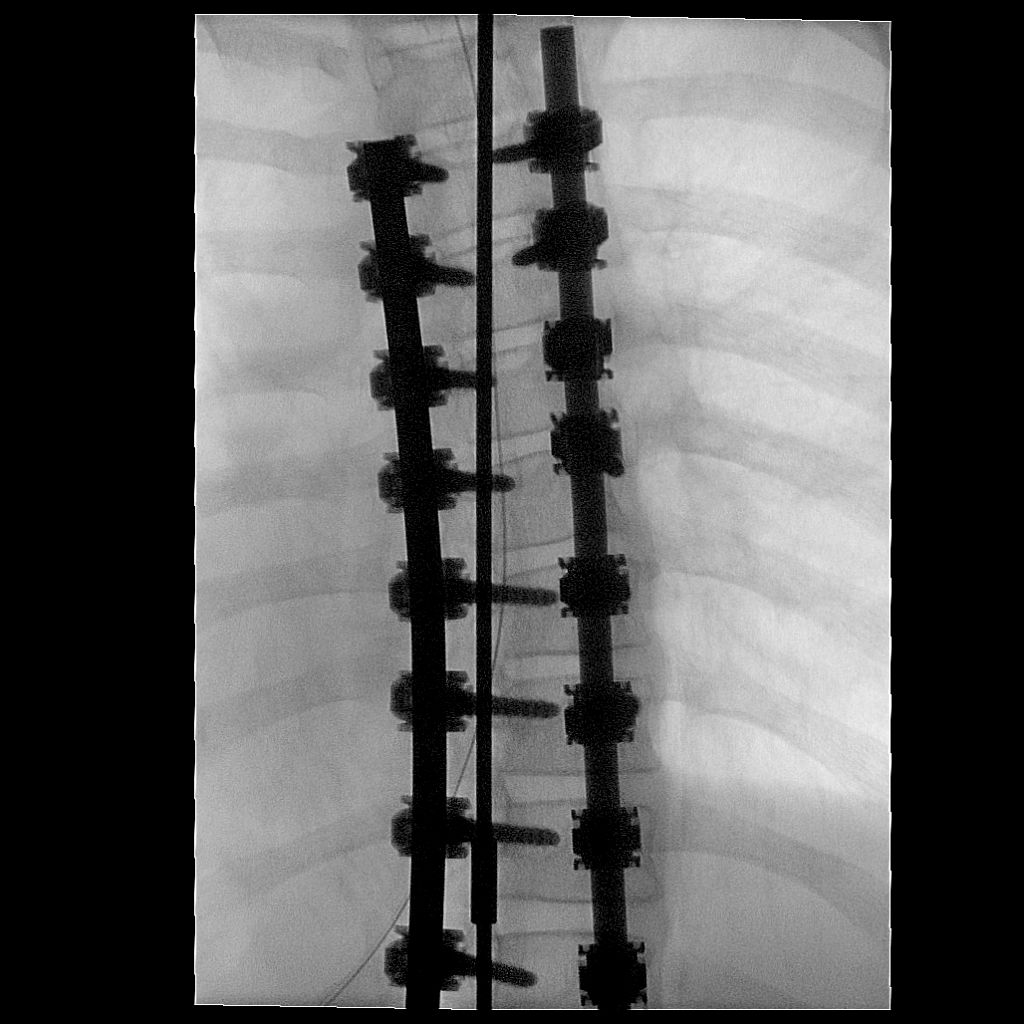

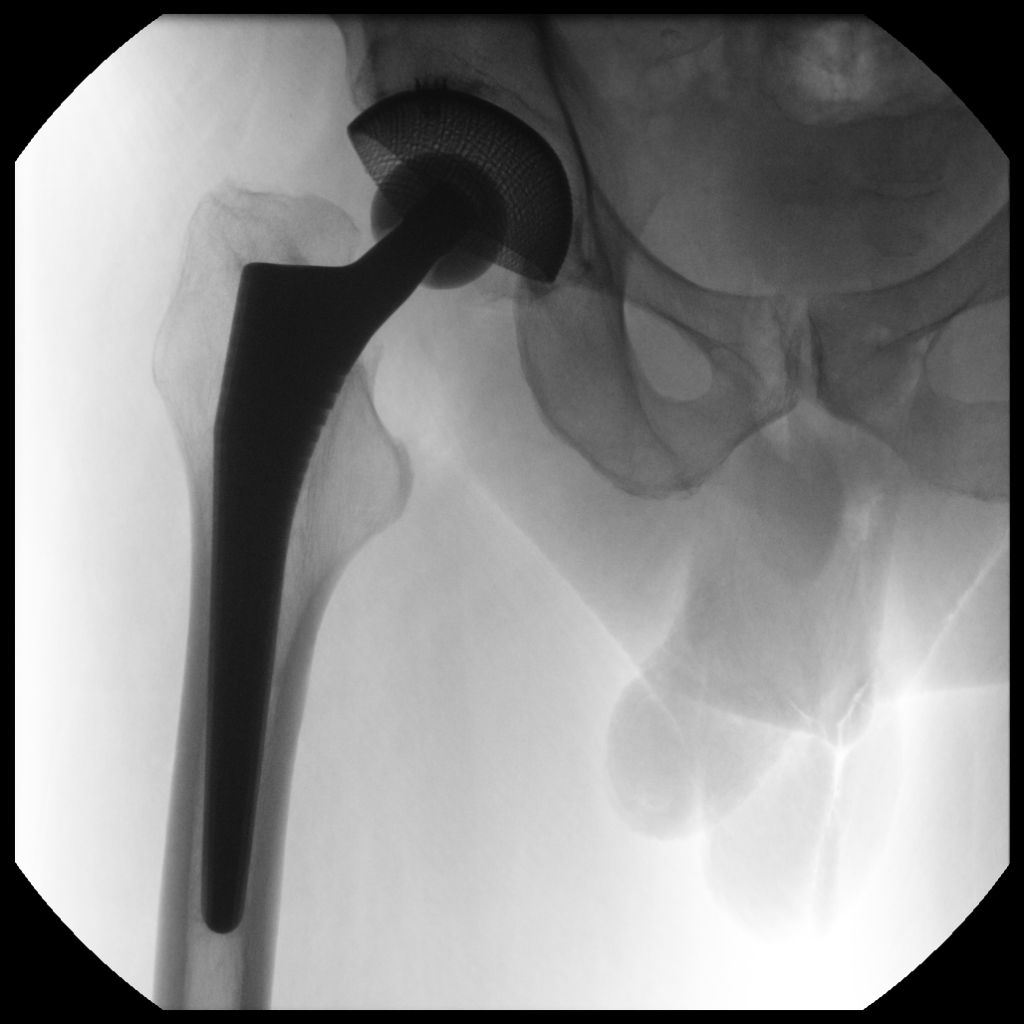

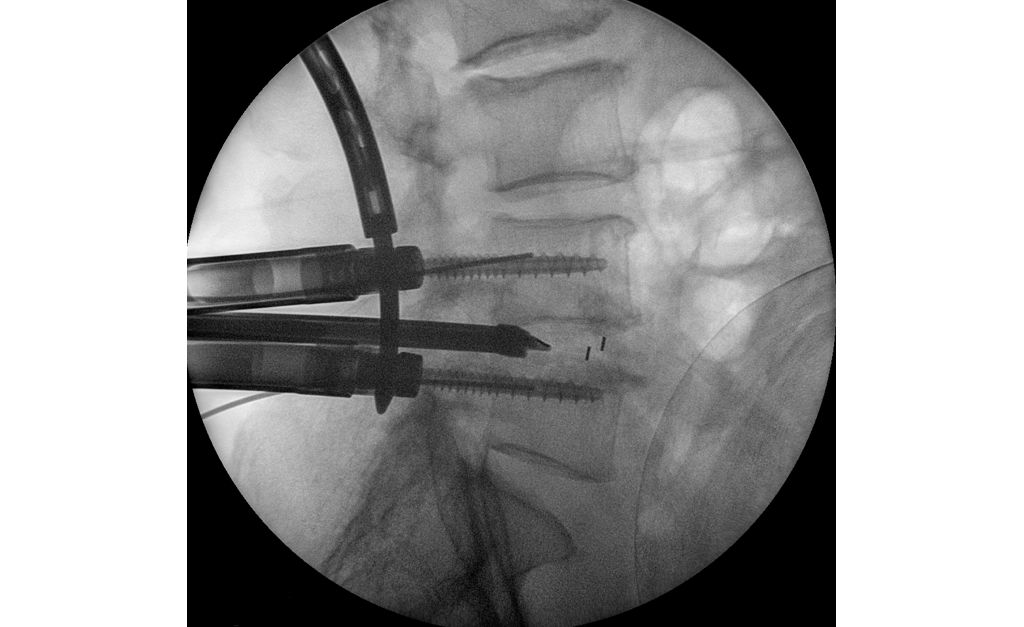

Clinical image gallery
Features
Power and endurance for complex procedures
Zenition 90 is engineered for demanding imaging. Its 15 kW generator delivers power and endurance to smoothly perform a variety of procedures, even with steep angles and on dense anatomies. Active oil circulation and improved heat management further enhance the systems performance, allowing for longer fluoroscopy and extended procedure times.

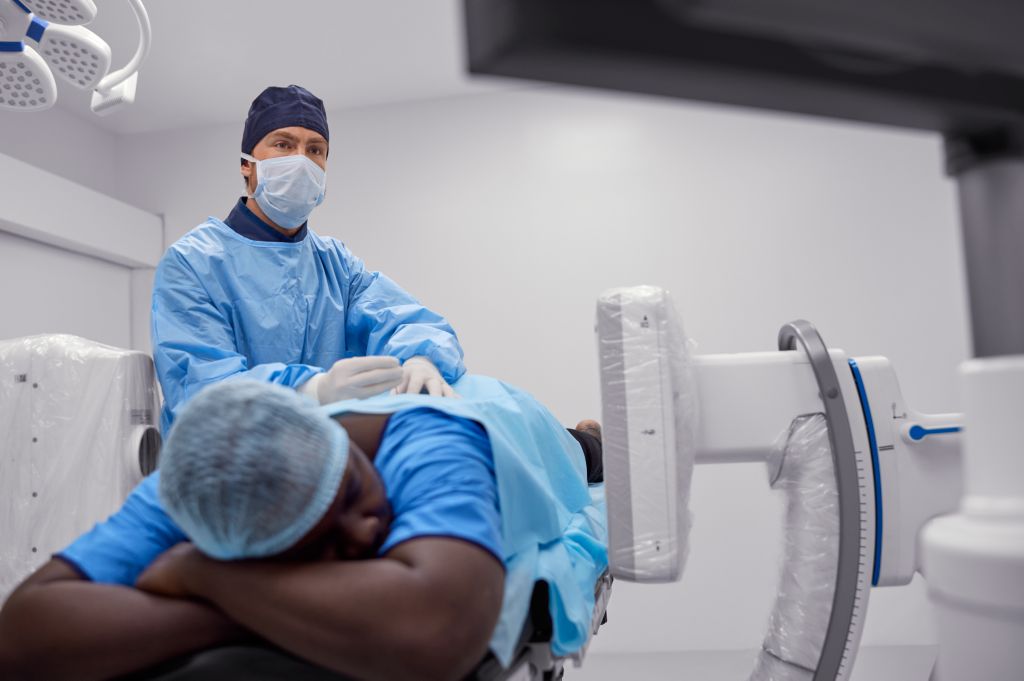

Independence in the OR

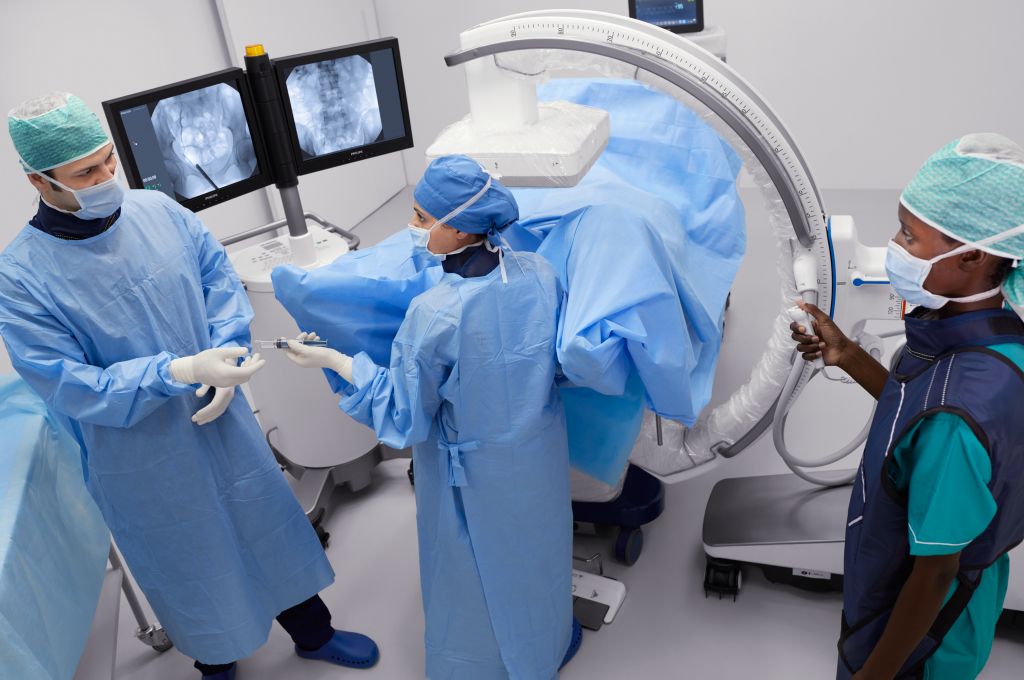

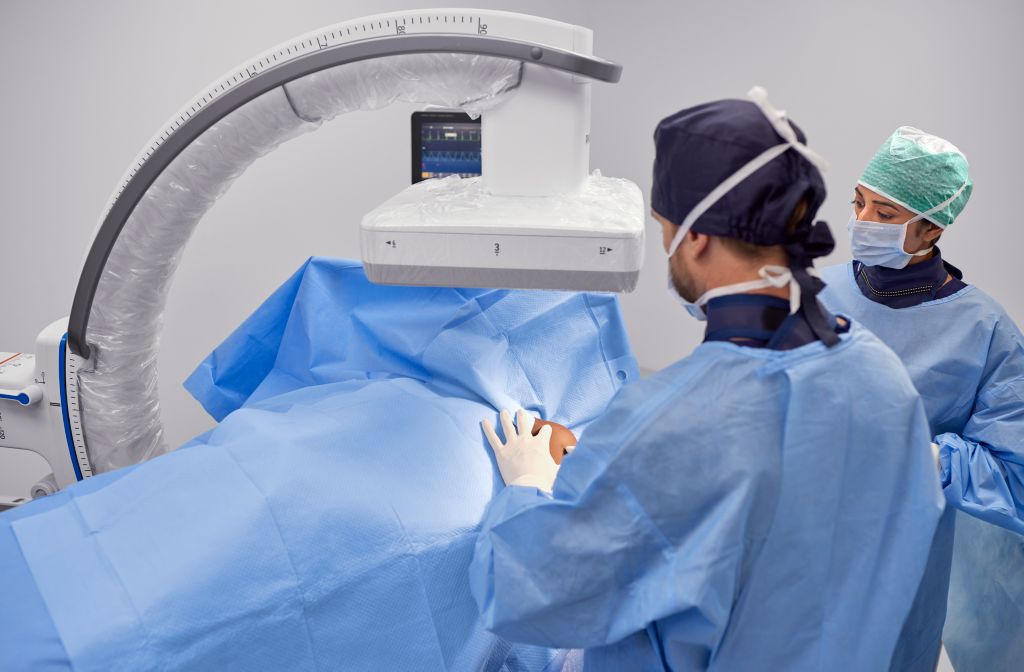

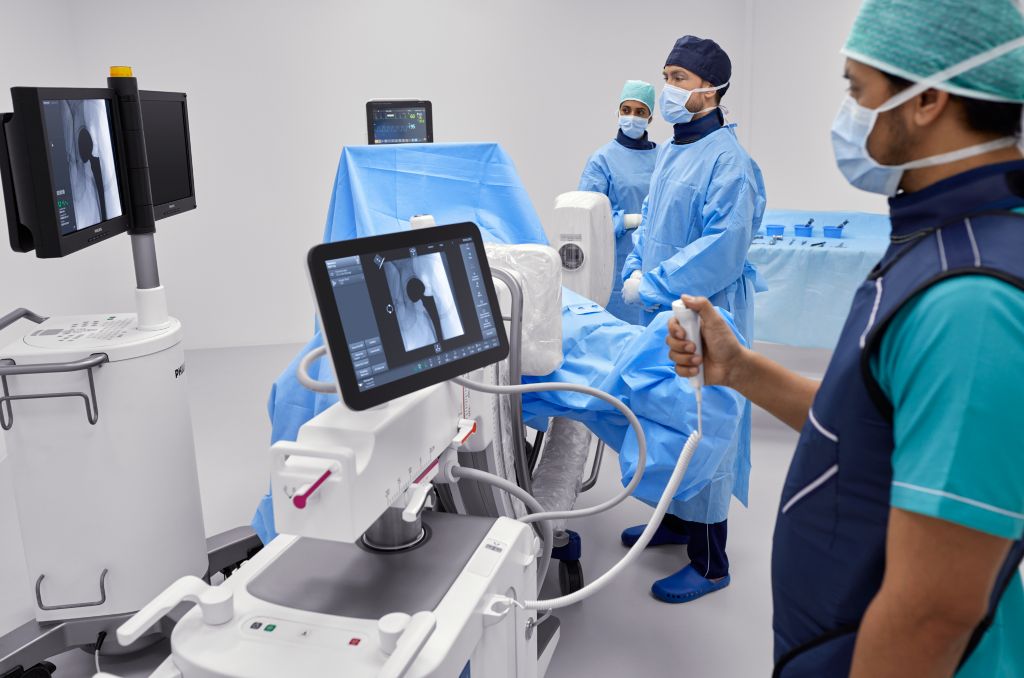

A fully counterbalanced C-arm enhances user independence while helping keep staffing costs under control. The system can be easily operated by a single surgeon. The Pedestal Trolley facilitates further OR workflow optimization, with the Touch Screen Module attached to it, creating an effective sterile mobile imaging station, away from the table.
A user-friendly interface

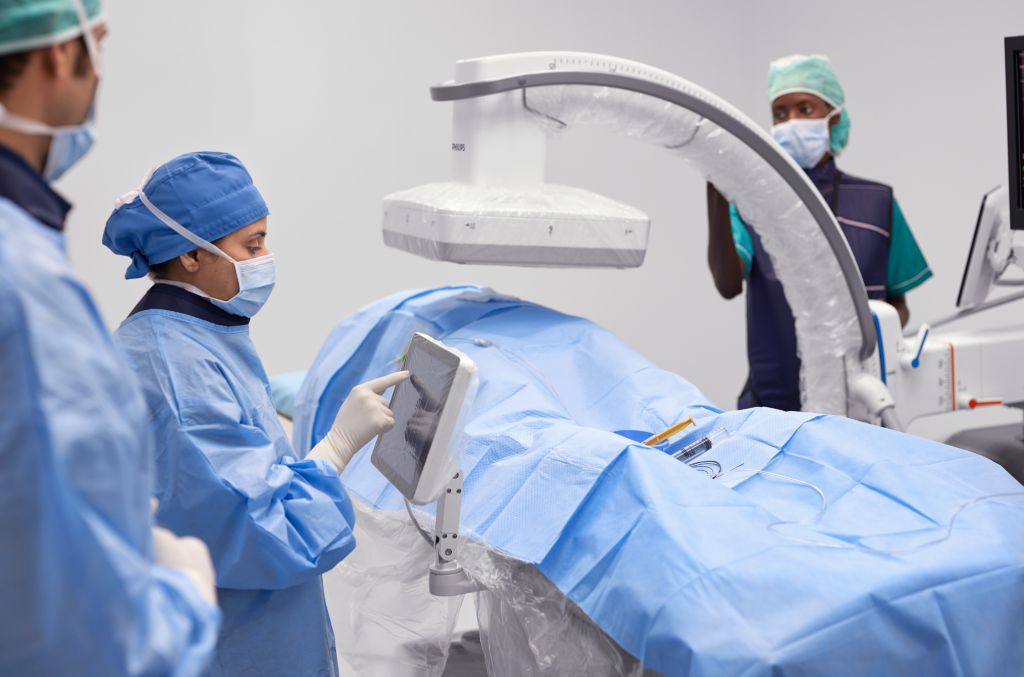

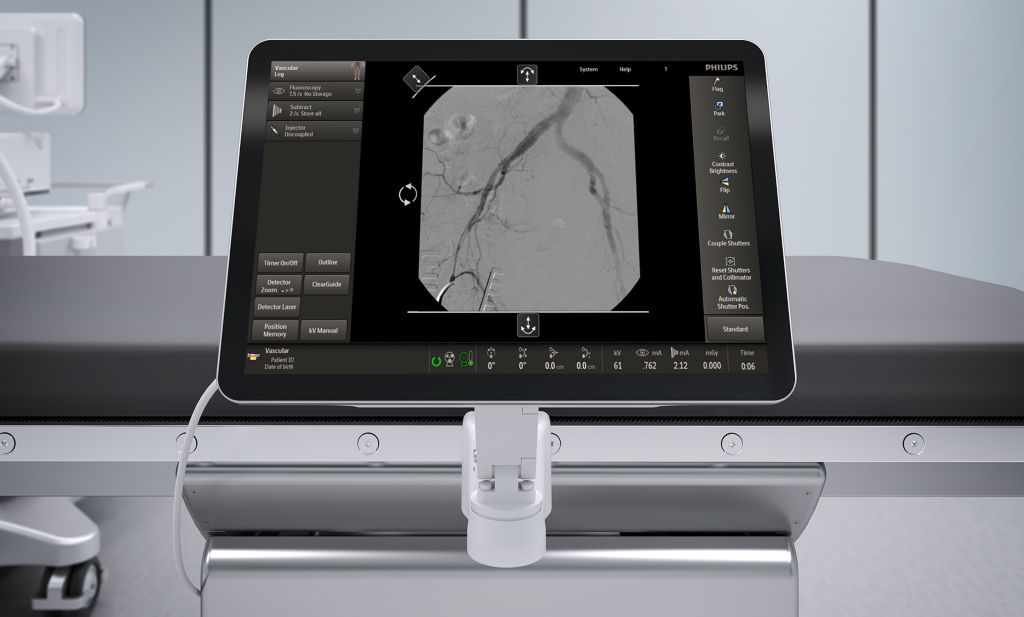

The Touch Screen Module provides a user-friendly experience with a familiar tablet-like interface. This results in hassle-free communications and greater control, with the ability to easily handle the C-arm image functions directly from the table-side. Adjust image parameters, collimate, rotate, and swipe through images all with a fingertip. 96% of physicians said that the Touch Screen Module gave them complete control over imaging parameters¹.
Specifications
- X-ray generation
- X-ray generator
- Monoblock 40 kHz high frequency generator
- X-ray tube
- Rotating Anode (tube)
- Maximum generator output
- 15
- Flat detector
- Flat detector
- Trixell amorphous silicon detector
- Matrix size
- FD12: 1344 x 1344 pixels, FD17: 1956 x 1956 pixels
- Detector Area
- FD12: 21 cm x 21 cm (8.15" x 8.15"), FD17: 30 cm x 30 cm (11.86" x 11.86")
- Pixel pitch
- 154
- Connectivity
- USB storage
- PNG, MP4, BMP
- Wireless data transfer
- Standard
- Video in (optional)
- S-Video, DVI (digital and analog), SDI
- Advanced DICOM/IHE package
- Modality Worklist Mgmt, Modality Performed Procedure Step, Storage Commit
- Digital video out
- 2 DVI connectors for the live and reference monitors
- Options
- Image Viewer
- Multi-Modality Viewer
- Tank laser aiming device
- Laser aimer projects a crosshair from the X-ray tank towards the flat detector
- Injector interface
- Available
- Automatic vascular outlining
- Automatically perform 2D detection and outlining of vessel tree structures on the image
- Position memory
- Available (up to three positions)
- Geometry
- C-arc
- Color coded, fully counterbalanced C-arc
- C-arc depth
- 73 cm / 28.7"
- Source Image Distance
- 99.3 cm / 39.1"
- Angulation
- 140° rotation (+90° / -50°)
- Lowest lateral position
- 103 cm / 40.6"
- C-arm brakes
- Manual brakes for all movements
Disclaimer
1. Results obtained during claims substantiation study performed in June 2022 and May 2023 by Use-Lab GmbH, an independent company. Based on responses from 25 physicians from the EU and the US, who answered a questionnaire after a usability study with additional hands-on time with the system.
2. Results obtained during claims substantiation study performed in June 2022 and May 2023 by Use-Lab GmbH, an independent company. Response is based on 44 clinicians from the EU and the US, who answered a questionnaire after a usability study with additional hands-on time with the system.
3. Results obtained during claims substantiation study performed in June 2022 and May 2023 by Use-Lab GmbH, an independent company. Response is based on 49 clinicians from the EU and the US, who answered a questionnaire after a usability study with additional hands-on time with the system.
4. Results obtained during user tests performed in November 2013 by Use-Lab GmbH, an independent company. The tests involved 30 USA-based clinicians (15 physicians teamed up with 15 nurses or X-ray technicians), who performed simulated procedures using Philips mobile X–ray systems in a simulated OR environment. None of them had worked with each other before.
The X-ray dose reductions refer to specific features and will vary depending on the dose parameters selected.
Some clinical images shown are from Zenition 70 and Veradius Unity and do not represent the final image quality of the Zenition 90.
Zenition 90 systems are available for sale in a limited number of countries. Please check with your local Philips representative.
Some features shown are optional for Zenition 90.
Actual product representation may vary.
