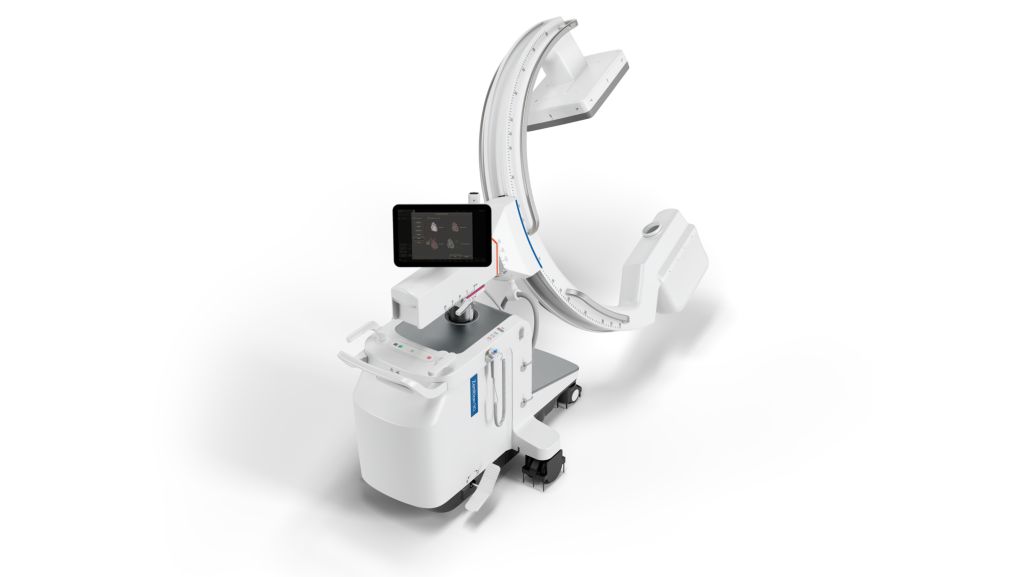

Zenition 90 Motorized

Motorized mobile C-arm with flat detector
Mobile C-arms
Motorized and impressively fast, the Philips Image Guided Therapy Mobile C-arm System 9000 – Zenition 90 Motorized is an intuitive C-arm that efficiently delivers state-of-the art image quality for the most challenging procedures. The system allows for automated workflows with its versatile motion, image controls and advanced software solutions.

Clinical image gallery

Features

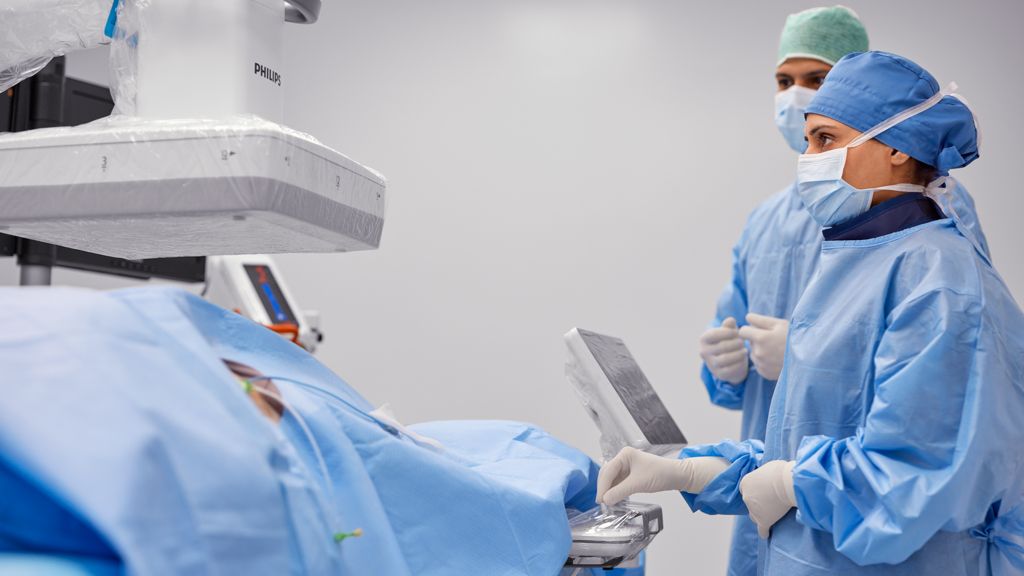

Independence in the OR
Gain flexibility and independence by controlling the C-arm's motion via the Table Side Operator. Operate the fast and smooth 4-axes motorization from the table-side, avoiding sterility breaks. Activate the angulation and rotation movements with a single joystick, for optimal control at variable speeds of up to 15 degrees per second. 90% of users believe motorized movement could help save time during procedures.¹
Independence in the OR
High power and endurance
Perform a variety of procedures even with steep angles and on dense anatomies, with 25 kW or 15 kW power, and achieve excellent image quality. Active oil circulation and improved heat management boost the system's performance even further, allowing for longer fluoroscopy and extended procedure times to better support demanding procedures.
High power and endurance

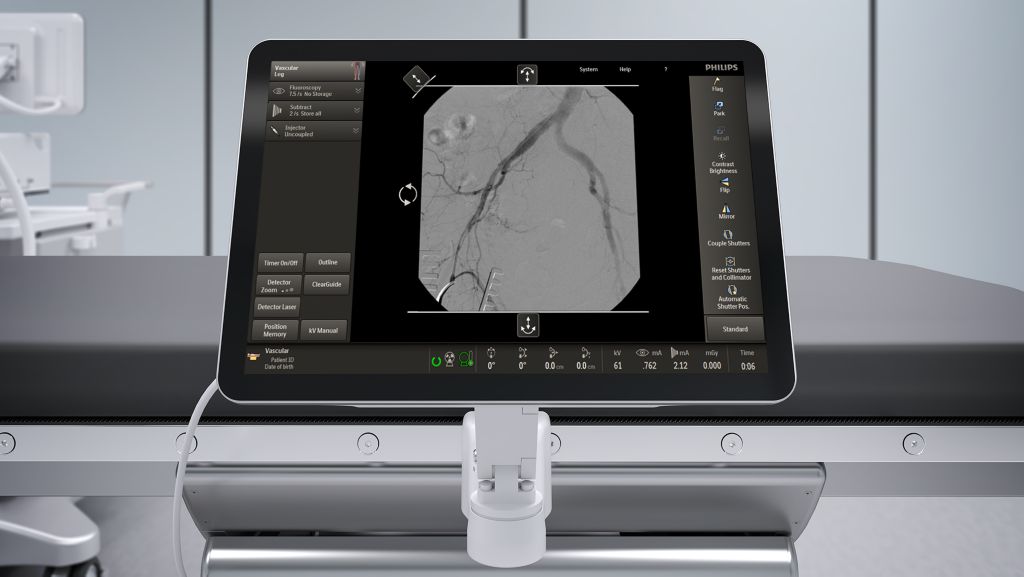

Greater control
The Touch Screen Module provides a user-friendly experience with a familiar tablet-like interface. This results in hassle-free communications and greater control, with the ability to easily handle the C-arm image functions directly from the table-side. Adjust image parameters, collimate, rotate and swipe through images, all with a fingertip. 96% of physicians believe the Table Side Operator and Touch Screen Module could help accelerate procedures.²
Greater control
Specifications
  • X-ray generation
    X-ray generator
    Monoblock 40 KHz high frequency generator
    X-ray tube
    Rotating Anode (tube)
    Maximum generator output
    15 kW or 25 kW
  • Flat detector
    Flat detector
    Trixell amorphous silicon detector
    Matrix size
    FD12: 1344 x 1344 pixels FD17: 1956 x 1956 pixels
    Detector Area
    FD12: 21 cm x 21 cm (8.15" x 8.15") FD17: 30 cm x 30 cm (11.86" x 11.86")
    Pixel pitch
    154 μm
  • Connectivity
    USB storage
    PNG, MP4, BMP
    Wireless data transfer
    Standard
    Video in (optional)
    S-Video, DVI (digital and analog), SDI
    Advanced DICOM/IHE package
    Modality Worklist Mgmt, Modality Performed Procedure Step, Storage Commit
    Digital video out
    2 DVI connectors for the live and reference monitor
  • Options
    Injector interface
    Available
    Automatic vascular outlining
    Automatically perform 2D detection and outlining of vessel tree structures on the image
  • Geometry
    Motorization
    Full control of the 4 axes motorization via Table Side Operator
    C-arc
    Color coded, fully counterbalanced C-arc
    C-arc depth
    73 cm / 28.7"
    Source Image Distance
    99.3 cm / 39.1"
    Angulation
    140° rotation (+90° / -50°), Max speed: 15°/s
    Lowest lateral position
    103 cm / 40.6"
    C-arm brakes
    Yes, electromagnetic brakes (angulation, rotation, longitudinal), wig-wag manual
    Collision prevention
    BodyGuard collision prevention sensors
Disclaimer
1. Results obtained during claims substantiation study performed in June 2022 and May 2023 by Use-Lab GmbH, an independent company. Response is based on 50 clinicians from the EU and the US, who answered a questionnaire after a usability study with additional hands-on time with the system.
2. Results obtained during claims substantiation study performed in June 2022 and May 2023 by Use-Lab GmbH, an independent company. Response is based on 25 physicians from the EU and the US, who answered a questionnaire after a usability study with additional hands-on time with the system.
3. Results obtained during claims substantiation study performed in June 2022 and May 2023 by Use-Lab GmbH, an independent company. Response is based on 49 clinicians from the EU and the US, who answered a questionnaire after a usability study with additional hands-on time with the system.
4. Results obtained during claims substantiation study performed in June 2022 and May 2023 by Use-Lab GmbH, an independent company. Response is based on 44 clinicians from the EU and the US, who answered a questionnaire after a usability study with additional hands-on time with the system
The X-ray dose reductions refer to specific features and will vary depending on the dose parameters selected.
Some clinical images shown are from Zenition 70 and Veradius Unity and do not represent the final image quality of the Zenition 90 Motorized.
Zenition 90 Motorized systems are available for sale in a limited number of countries. Please check with your local Philips representative.
Some features shown are optional for Zenition 90 Motorized.
Actual product representation may vary.
