Shear Wave Ultrasound Liver Assessment

The value of elastography

Philips shear wave elastography simplifies liver assessment, making obtaining liver stiffness measurements fast and easy. This non-invasive, reproducible, and easily performed method of assessing liver tissue stiffness may help reduce, or even avoid, the need for conventional liver biopsies¹. Research suggests that instead of a costly and painful biopsy procedure, an easy ultrasound exam could become routine for assessing liver disease status.

Philips shear wave elastography simplifies liver assessment, making obtaining liver stiffness measurements fast and easy.

This non-invasive, reproducible, and easily performed method of assessing liver tissue stiffness may help reduce, or even avoid, the need for conventional liver biopsies.

Research suggests that instead of a costly and painful biopsy procedure, an easy ultrasound exam could become routine for assessing liver disease status.

Philips shear wave elastography simplifies liver assessment, making obtaining liver stiffness measurements fast and easy.

This non-invasive, reproducible, and easily performed method of assessing liver tissue stiffness may help reduce, or even avoid, the need for conventional liver biopsies.

Research suggests that instead of a costly and painful biopsy procedure, an easy ultrasound exam could become routine for assessing liver disease status.

Philips shear wave elastography simplifies liver assessment, making obtaining liver stiffness measurements fast and easy.

This non-invasive, reproducible, and easily performed method of assessing liver tissue stiffness may help reduce, or even avoid, the need for conventional liver biopsies.

Research suggests that instead of a costly and painful biopsy procedure, an easy ultrasound exam could become routine for assessing liver disease status.

How can we help you?

*

Contact information

* This field is mandatory

Country

*

First name*

First name (phonetic)

*

Last name*

Last name (phonetic)

Salutation

Academic title

*

Email address*

Business phone number (ex. +1 (555) 123-4567)

*

Company*

Job title

Industry

*

Function

*

Specialty

*

Department

*

State or Province

City

Address

Zip or Postal Code

By specifying your reason for contact we will be able to provide you with a better service.

We work with partners and distributors who may contact you about this Philips product on our behalf.

Follow up information

*

Preferred method of contact

Best time to call

Estimated time of purchase

*

Kindly enter your comments regarding the inquiry

I hereby consent to processing of my personal data and sensitive personal data (if any) and transfer of such data abroad, in accordance with the Privacy Notice that can be found here.

What is cross border data transfer?

I agree on cross-border transfer of personal information.

I hereby agree to receive by email or telephone information about Philips products, services, events and promotions, including information by mail that is appropriate to me, taking into account my activities and preferences, including the Expectations I have indicated / and in this form.

I agree that Philips may share my personal information with authorized resellers of its Philips products and equipment in order to meet my expectations as stated in this form.

I would like to receive marketing related electronic communications about Philips products, services, events and promotions that may be relevant to me based on my user preferences and behavior. I can revoke my consent at any time.

Final CEE consent

ElastQ imaging

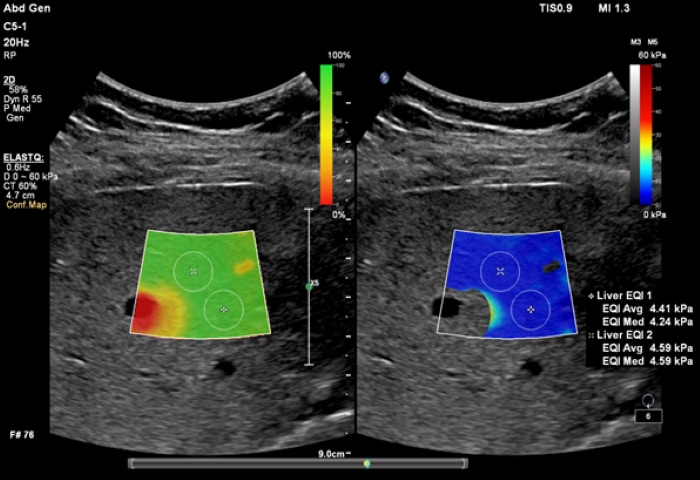

ElastQ imaging is a real-time, large Region of Interest (ROI), color-coded quantitative assessment of tissue stiffness. Clinicians can easily assess liver tissue stiffness using real-time feedback and make quantitative measurements with multiple sample points. ElastQ imaging includes the ability to make retrospective measurements on stored images as well. Unique confidence map display utilizes intelligent analysis that adds additional assurance that user measurements are obtained on tissue areas with adequate shear wave propagation. Imaging confidence map, used with the stiffness map, improve confidence of shear wave measurements. Both maps can be displayed side-by-side, which reduces workflow steps and allows for simultaneous map correlation during acquisition and measurement phases.

ElastPQ

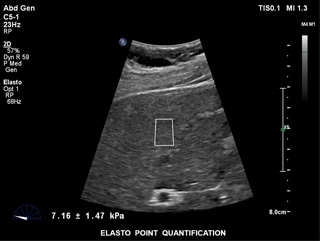

ElastPQ is an easy-to-use method of obtaining tissue stiffness values of the liver on a predefined ROI. Using real-time imaging as a guide, the ROI is placed over the area of interest and tissue stiffness data such as AVG, MEAN, and IQR are obtained and displayed in seconds. Multiple samples can be recorded and liver tissue report generated from the results.

Noninvasive liver fibrosis assessment

ElastPQ ultrasound shear wave elastography

Richard G. Barr, MD, PhD, FACR, Diagnostic Radiology,
Hitchcock Imaging, Youngstown, OH

Download now

Introducing next-generation shear wave elastography

ElastQ ultrasound shear wave elastography

Vijay Shamdasani, PhD and Hua Xie, PhD, Philips Ultrasound

Download now

Noninvasive liver assessment made easy

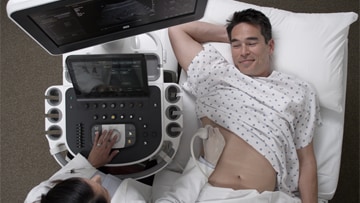

The liver stiffness measurement is captured in seconds through a simple noninvasive scan

Easily assess and monitor patients

When do you use it?
When do you use it?

When do you use it?

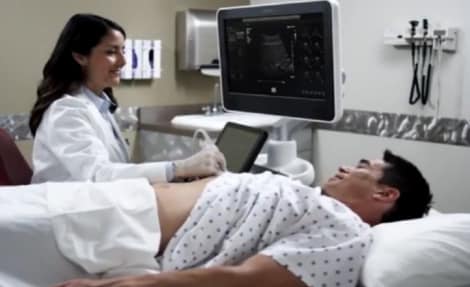

Liver shear wave elastography provides stiffness measurements for assessment of diffuse liver diseases and neoplastic lesions of the liver. It is noninvasive, so for some patients, shear wave elastography can turn painful, expensive biopsies into a well-tolerated method for follow up and monitoring of the disease.
How long does it take?
How long does it take?

How long does it take?

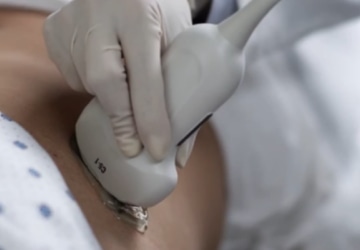

Perform a right intercostal scan of the liver, set the ROI between 1 and 2 cm below the liver capsule avoiding vessels, and at a total depth of <8 cm. Press ‘Update’. In less than a second, the measurement results are displayed on the image. It is that easy and fast. So fast, in fact, you can add it to your routine abdominal scans for critical data early in the diagnostic process, and without compromising your lab schedule.
What does it look like?
What does it look like?

What does it look like?

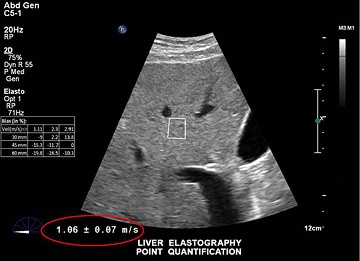

The image and measurement results are displayed, including the mean and median values, and the standard deviation, in kPa or m/s. If measurement reliability is low, 0.00 kPa will be displayed as the result. The Elastic Modulus E [kPa] is calculated using the equation E = 3ρVs where Vs [m/s] is defined as the shear wave propagation velocity and ρ as tissue density.

Chronic Hepatitis C worldwide

130-150 million people affected
4.7 million new cases annually
350,000-500,000 deaths annually

130-150 million people affected

4.7 million new cases annually

350,000-500,000 deaths annually

Shear wave elastography is supported on the EPIQ 7, EPIQ 5, and Affiniti 70 ultrasound systems.

1 Ferraioli G, et al. Point shear wave elastography method for assessing liver stiffness. World J Gastroenterology. 2014 April 28;20(16):4787-4796.
