VeriSight Pro
3D ICE Catheter
  • ergonomic handle designed for single-handed manipulation and four-way steering
  • 4-foot sterile, disposable connector
  • ICE system overview
  • working length 90 cm
  • Single product shot
  • Standard product photograph
  • Soft tip and flexible shaft help minimize risk
  • 8-foot, non-sterile, reusable PIM connector
  • VeriSight Pro 3D ICE Catheter

VeriSight Pro

3D ICE Catheter
Philips VeriSight Pro 3D Intracardiac Echocardiography (ICE) Catheter was developed to challenge the standard of care for electrophysiology and structural heart disease. As the first ICE catheter to miniaturize the same 3D imaging technology that powers transesophageal echocardiogram (TEE), VeriSight Pro clearly guides physicians in 2D and 3D imaging giving them more confidence and control in interventional procedures.

Clinical image gallery

  • Visualizing TriClip device flexing towards the TV using elevation tilt
    Visualizing TriClip device flexing towards the TV using elevation tilt
  • Transseptal puncture in traditional 3D rendering
    Transseptal puncture in traditional 3D rendering
  • Interatrial septum flow using color
    Interatrial septum flow using color
  • 3D Volume of tricuspid valve with MultiVue
    3D Volume of tricuspid valve with MultiVue
  • 3D imaging mapping device
    3D imaging mapping device
  • Aligning TriClip device arms for grasping with MultiVue
    Aligning TriClip device arms for grasping with MultiVue
  • LAAO view via VeriSight Pro TrueVue 3D rendering and MPRs
    LAAO view via VeriSight Pro TrueVue 3D rendering and MPRs
  • Home view of tricuspid valve and right ventricular outflow track
    Home view of tricuspid valve and right ventricular outflow track
  • 3D imaging of a left atrial appendage (LAA) with TrueVue and MultiVue
    3D imaging of a left atrial appendage (LAA) with TrueVue and MultiVue
  • Left atrial appendage (LAA) AMPLATZER AMULET deployment in xPlane
    Left atrial appendage (LAA) AMPLATZER AMULET deployment in xPlane
  • PFA device in the left pulmonary vein
    PFA device in the left pulmonary vein
  • 2D imaging mapping using xPlane
    2D imaging mapping using xPlane
  • PFO closure using TrueVue and MultiVue
    PFO closure using TrueVue and MultiVue
  • Left atrial appendage 3D Auto LAA
    Left atrial appendage 3D Auto LAA
  • Assessing position and orientation of TriClip device below leaflets using xPlane
    Assessing position and orientation of TriClip device below leaflets using xPlane
  • WATCHMAN FLX with color compare of the LAA
    WATCHMAN FLX with color compare of the LAA
  • Left atrial appendage occlusion (LAAO) device with MultiVue view
    Left atrial appendage occlusion (LAAO) device with MultiVue view
  • 3D imaging of a left atrial appendage (LAA) from the RA with TrueVue Glass
    3D imaging of a left atrial appendage (LAA) from the RA with TrueVue Glass
  • RF ablation using xPlane elevation tilt
    RF ablation using xPlane elevation tilt
Features
Increase your control in every procedure
Philips VeriSight Pro uses the same 3D imaging technology as TEE, miniaturized to fit on the tip of a 9 French catheter, delivering powerful 3D imaging capabilities. From streamlining LAAO procedures, to enabling tricuspid interventions, VeriSight Pro is an important solution for SHD and EP programs.
Increase your control in every procedure
Streamline LAAO procedures
VeriSight Pro helps you create a moderate sedation program that streamlines left atrial appendageocclusion (LAAO) procedures, while reducing costs and improving the patient experience. ¹ ² ³Save an average of 28 minutes in LAAO procedures¹, effectively streamlining the scheduling process and room utilization to maximize your facility's productivity.
Streamline LAAO procedures
Enhance tricuspid care
Using 3D ICE with TEE helps improve access-to-care for tricuspid patients and improves leaflet imaging. Our Recall Settings provide the ability to seamless and quickly switch between TEE and 3D ICE during procedures for more efficient care without losing image optimization and views.
Enhance tricuspid care


Specifications
  • Product Specs
    Catalog number
    VSICE3D
    Outer diameter
    9 F
    Minimum sheath size
    10 F
    Working length
    90 cm
    Articulating segment length
    7.5 cm
    Fixed distal tip length
    2 cm
    Deflection range
    120° 4-way deflection
    Compatibility
    • EPIQ 7C
    • EPIQ CVx
    • EPIQ CVxi
    Broadband frequency range
    4 - 10 MHz
    Type of array
    xMATRIX
    Number of elements
    840
    Field of view
    90°
    Volume field of view
    90° x 90°
  • Imaging modes
    2D imaging
    Y
    Live 3D echo (3D Volume imaging)
    Y
    Live 3D Color Flow imaging
    Y
    Spectral doppler (PW/CW)
    Y
    iRotate echo (digital steering)
    Y
    Live xPlane imaging
    Y
    New adult pre-set card
    Y
    Easy quick angles and 2D/3D fly outs
    Y
    2D Echo image boost
    Y – 3 options
    3D Echo image quality
    Y – 5 options
    xPlane Quick Angle
    Y – 5 options
    Real-time 1 beat acquisition for 3D color volume
    Y

Documentation

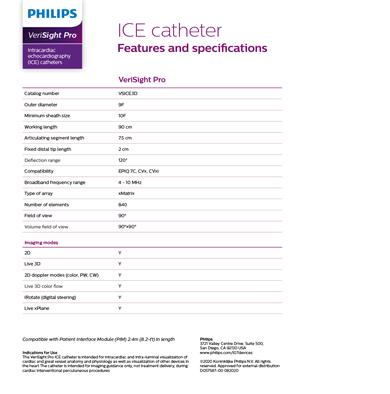

VeriSight Pro specifications
PDF|467.09 KB
VeriSight Pro brochure
PDF|2.29 MB
VeriSight Pro Transcend Updates
PDF|1.10 MB
