Philips vascular ultrasound systems

The ultimate ultrasound solution for vascular assessment

XL14-3 xMATRIX Linear Array transducer properties graph

Ultrasound is ideal for helping vascular clinicians make decisions that positively impact patient care and outcomes. However, there hasn't been a vascular ultrasound solution in decades that has elevated vascular assessment to the next level... until now.

Watch our video to learn more about Philips' ultimate ultrasound solution for vascular assessment.

The world's first xMATRIX linear array transducer

The XL14-3 xMATRIX Linear Array transducer for vascular assessment is the biggest advance in vascular ultrasound in 20 years.

Watch the demo video to learn more.

xl14-3-xmatrix-linear-array-transducer-video

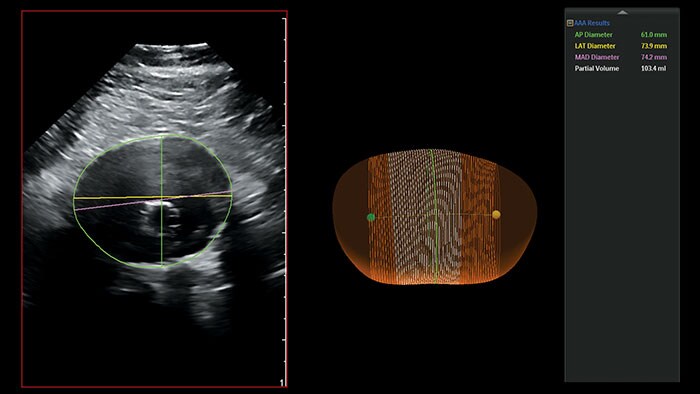

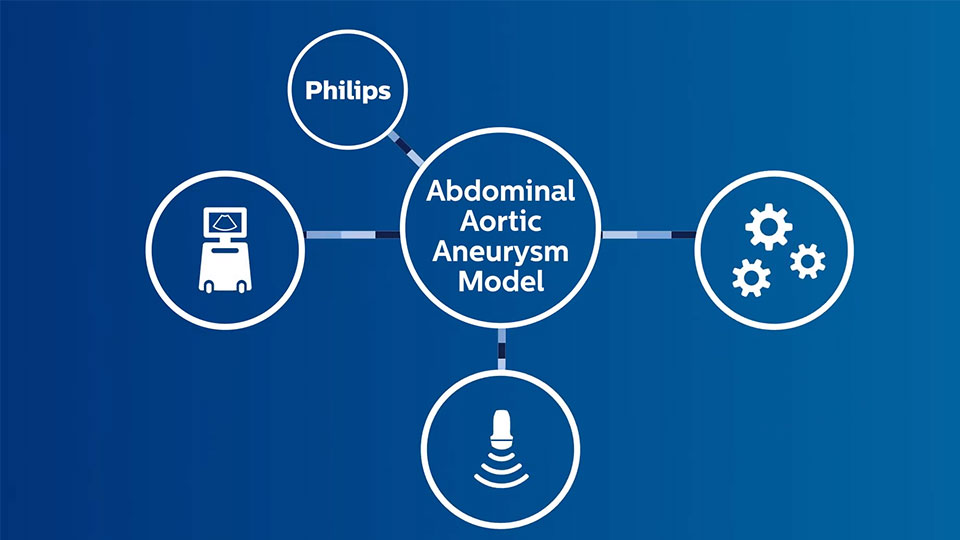

Philips AAA Model offers increased diagnostic confidence and improved patient experience without the drawbacks of 2D ultrasound and CT angiography in the current standard of care.

Learn more about Philips AAA Model

Want to talk to a sales rep or just stay informed?

Complete the form and someone will get back to you.

Stay up-to-date

Connect with sales

The Philips vascular ultrasound solution is comprised of four key features that work together to aid clinicians in the diagnosis and treatment of vascular disease.

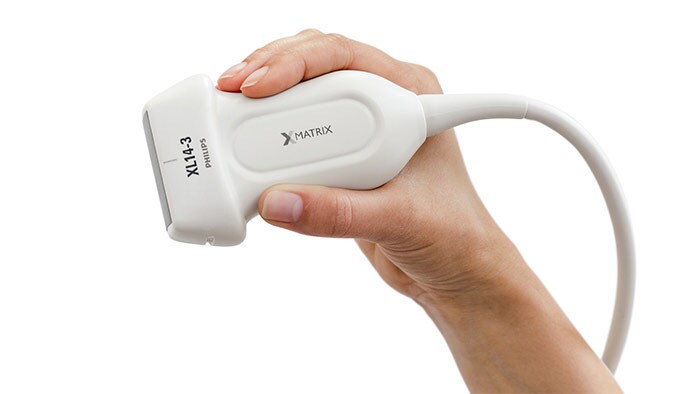

XL14-3 xMATRIX linear array transducer: key features

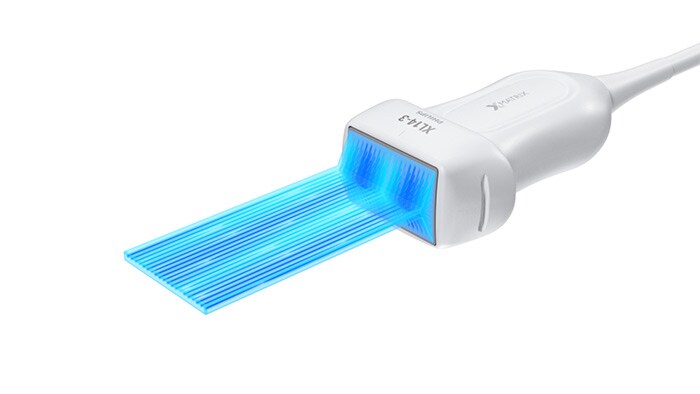

Thin Slice Imaging

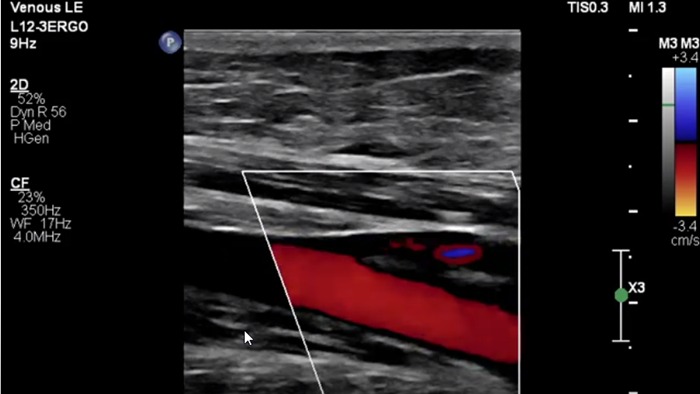

The XL14-3 xMATRIX transducer incorporates an amazing 56,000 elements, all connected to a separate micro-channel. The XL14-3 transducer features multi-dimensional electronic focusing for ultra-thin slice imaging of vascular anatomy and plaque morphology. The key benefit: exceptional diagnostic confidence when assessing stenosis and vulnerable plaque.

The Philips XL14-3 xMATRIX linear array transducer vascular ultrasound

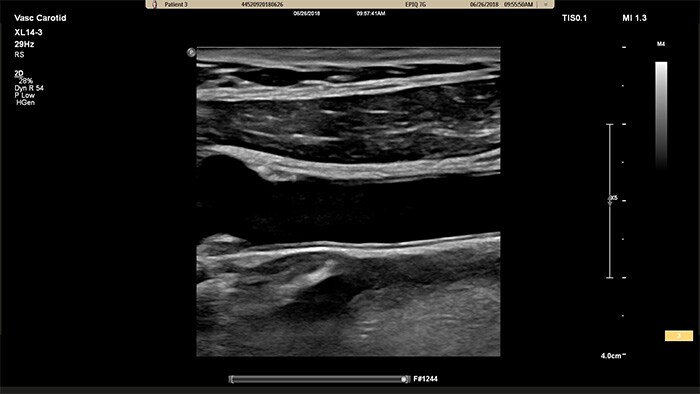

Example of an image retrieved with Philips XL14-3 xMATRIX linear array transducer vascular ultrasound

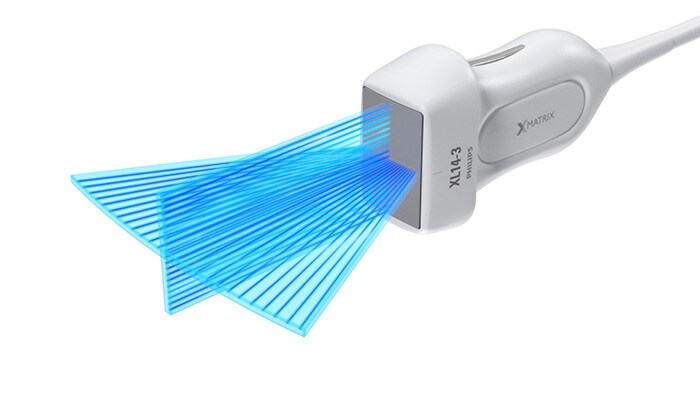

xPlane Imaging

The XL14-3 xMATRIX transducer offers xPlane imaging that goes beyond the conventional approach to vascular exams by offering real-time images in both the longitudinal and transverse planes simultaneously. The key benefit: xPlane imaging eliminates the need to rotate the transducer to acquire orthogonal views. A simple move of the trackball can provide complete anatomical evaluation – saving exam time.

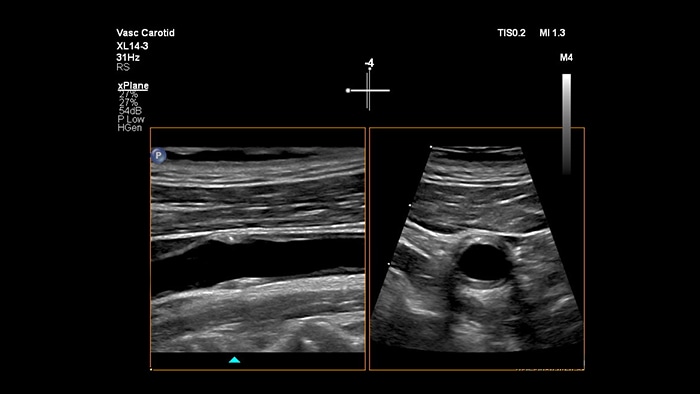

Example of an image retrieved with xPlane imaging vascular ultrasound Philips

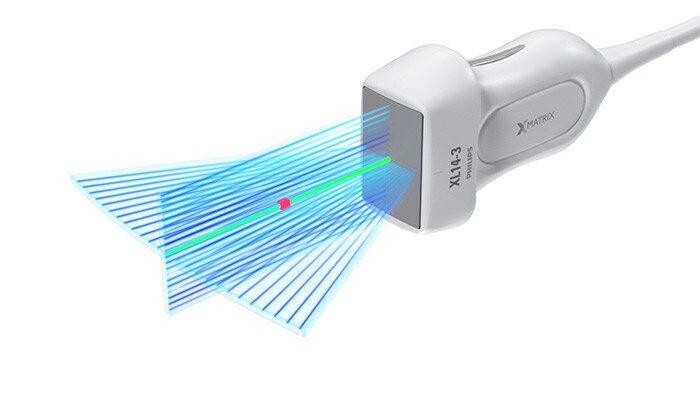

xPlane Doppler

The XL14-3 xMATRIX also offers xPlane Doppler capabilities. xPlane pulse Doppler allows precise placement of the Doppler sample volume using both longitudinal and transverse reference images. The key benefit: xPlane Doppler reduces sample volume placement errors and provides greater reproducibility and consistency when sampling significant stenosis.

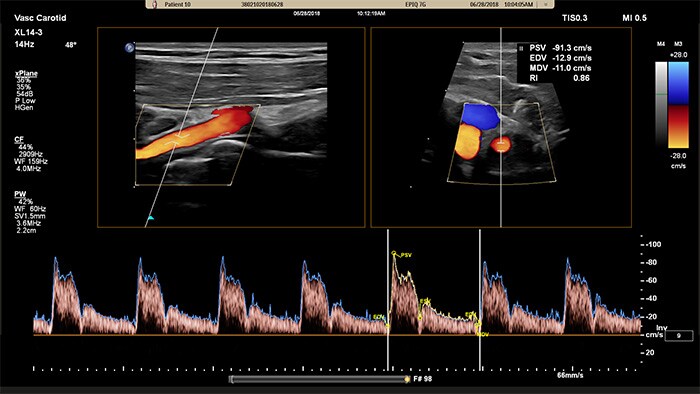

Example of an image retrieved with xPlane Doppler vascular ultrasound Philips

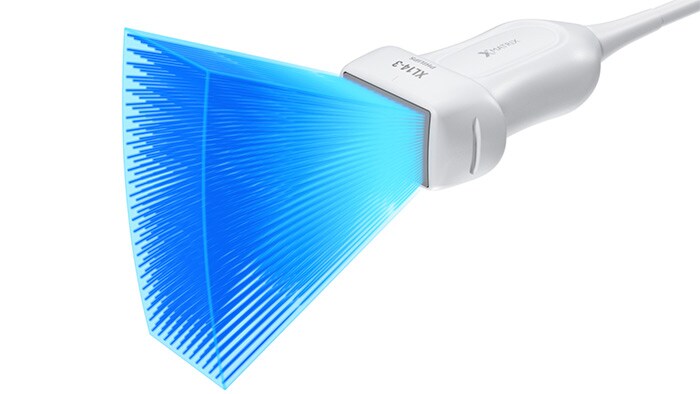

Philips XL14-3 xMATRIX linear array transducer: Easy 3D/4D visualization

The XL14-3 xMATRIX also has the ability to visualize anatomy in amazing 3D/4D with an easy-to-use ICON-driven workflow. Clinicians can see directly into a vessel to evaluate plaque spatial location and composition, as well as 3D flow data to assess stenotic or tortuous conditions.

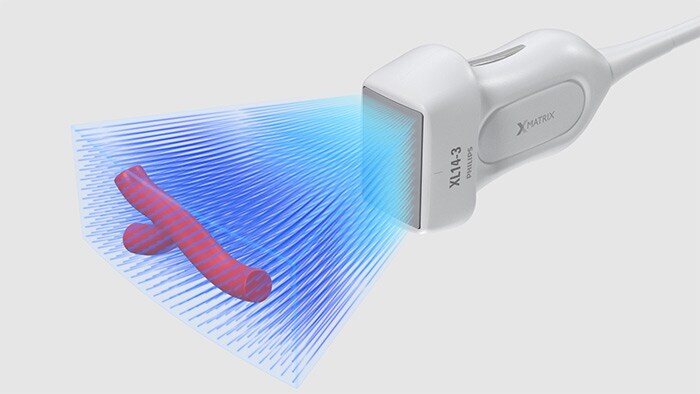

The Philips XL14-3 xMATRIX linear array transducer vascular ultrasound 3D/4D capabilities

Image retrieved with the easy 3D/4D capabilities of Philips XL14-3 xMATRIX linear array transducer vascular ultrasound

The 3D/4D user interface also offers the ability to generate a vessel cast using flow data. 3D vessel casting allows the direct visualization of flow for further analysis of stenosis or tortuous conditions. The key benefit: high-quality 4D/3D visualization of vascular anatomy provides an ideal communication tool to facilitate clinical decisions among providers and enhance consultation with patients to help them understand their condition.

The Philips XL14-3 xMATRIX linear array transducer vascular ultrasound with easy 3D/4D capability

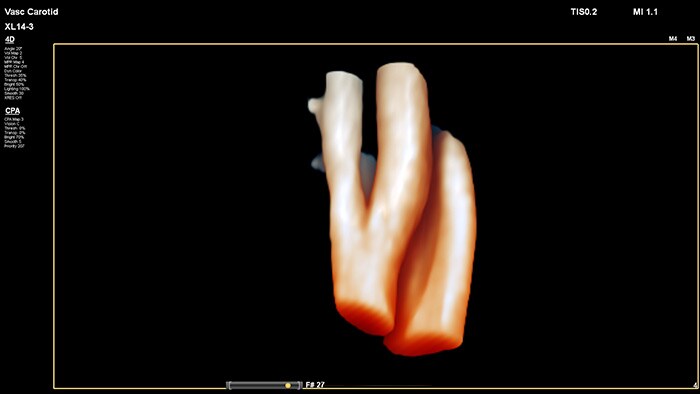

Example of a 3D vessel cast image retrieved with Philips XL14-3 xMATRIX linear array transducer vascular ultrasound

XRES Pro for high-quality image processing

Philips next-generation image processing elevates vascular imaging to new levels by providing superb delineation of vessel interfaces and enhanced plaque texture conspicuity. By reducing vessel haze and artifacts, XRES Pro elevates diagnostic confidence during vascular imaging of patients, including those that are technically challenging.

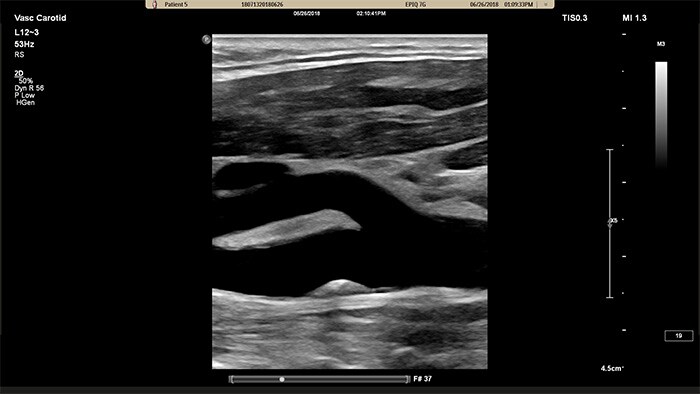

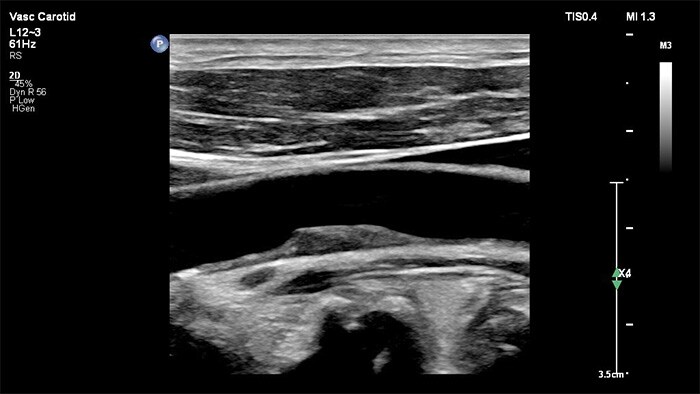

Image with the XRES Pro vascular ultrasound

Example of an image retrieved with the XRES Pro vascular ultrasound

MicroFlow Imaging

Philips MicroFlow Imaging is designed to detect slow and weak blood flow anatomy in tissue with remarkable sensitivity and enhances the resolution of flow in vascular exams. With high resolution and minimal artifacts, clinicians can visualize and characterize subtle flow disturbances around stenotic plaque to make confident diagnoses.

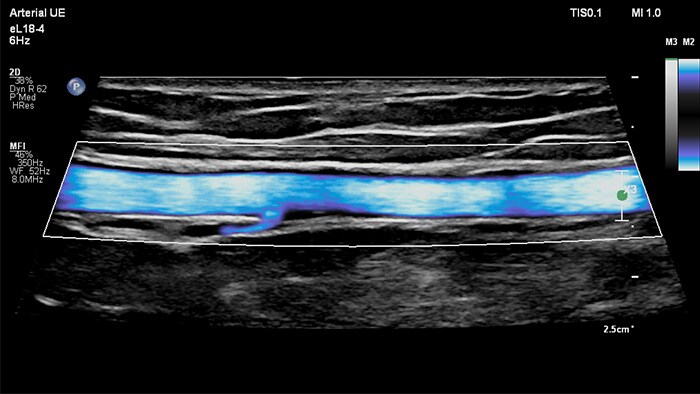

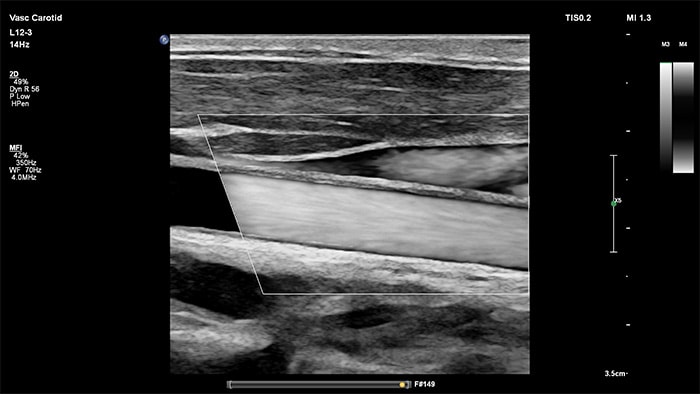

Image with MicroFlow Imaging vascular ultrasound

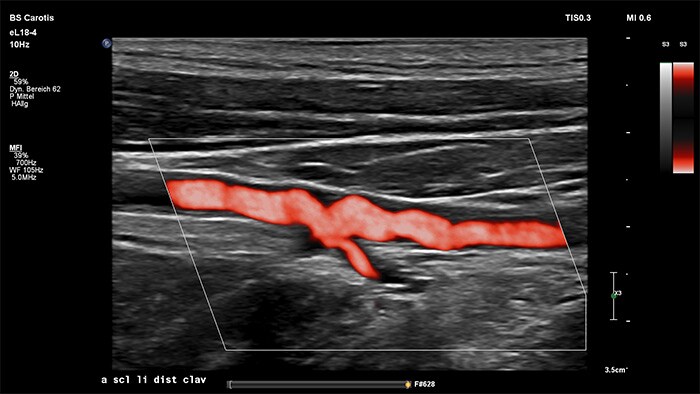

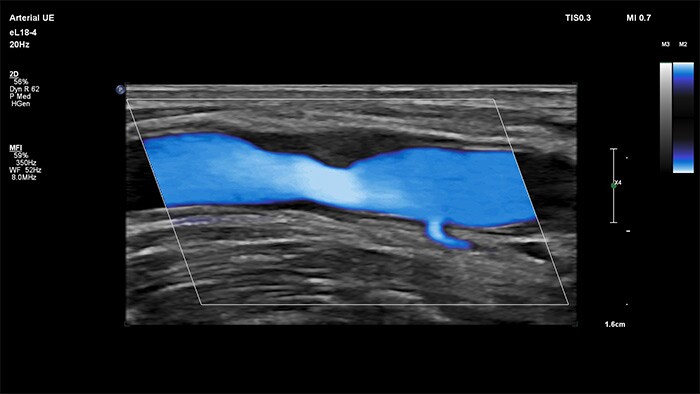

MicroFlow Imaging vascular ultrasound Arterial example

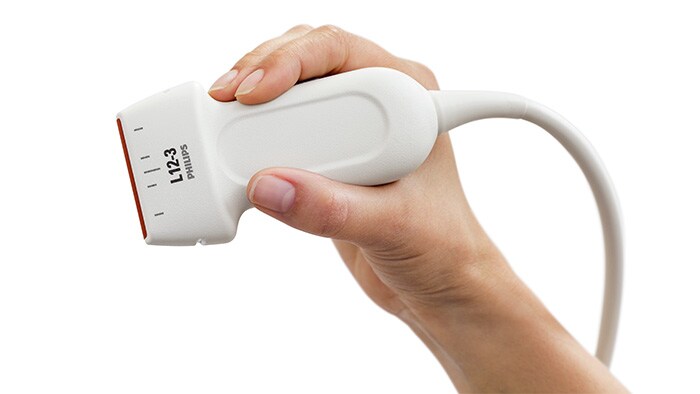

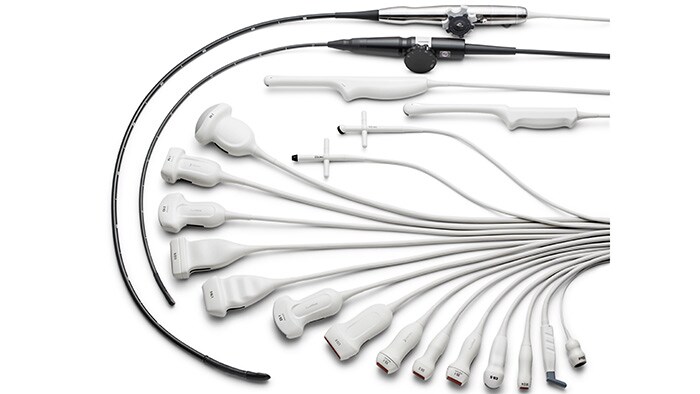

Find the right transducer for your system

Ergonomic and lightweight, our broad range of transducers is available in multiple configurations, enabling better penetration with less artifacts. Click the link below to learn more about our full range of transducers, and to download detailed instructions on care and maintenance.

View transducers

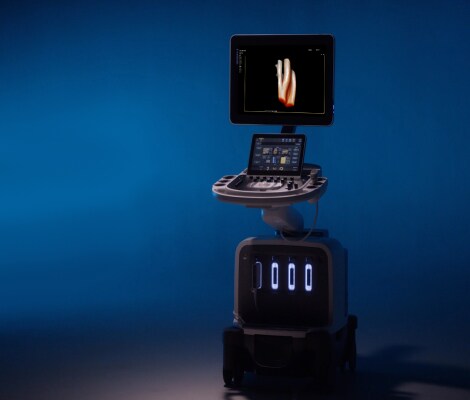

Our vascular ultrasound machine portfolio

Unprecedented advances in premium ultrasound performance can help address the strains on overburdened hospitals and healthcare systems, which are continually being challenged to provide a higher quality of care, in a cost-effective manner. The goal remains the same: to facilitate fast, accurate diagnosis.

Philips vascular ultrasound machines provide you and your clinical teams with the information and insights you need. Our vascular solutions pave the way for you to easily perform exams in a fast and consistent way. As a result, you gain a high level of confidence in diagnosis, even for technically difficult patients.

Learn more about our vascular ultrasound products
