Lumify portable ultrasound transducers (probes) & accessories

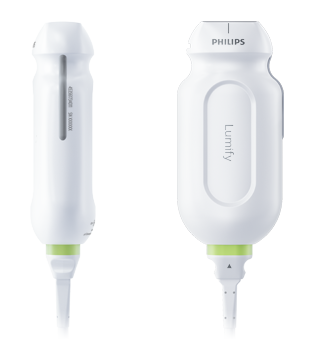

Philips ultrasound product S4-1

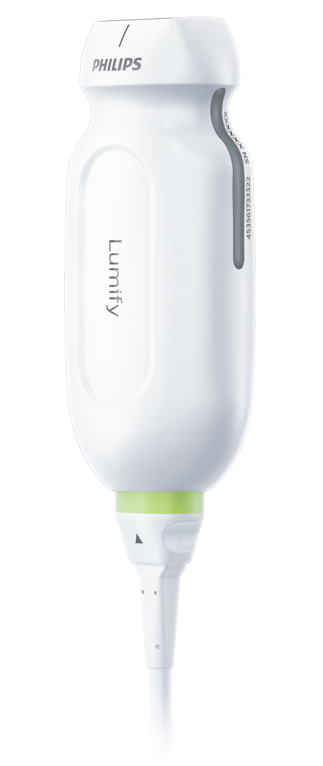

Lumify S4-1 broadband phased array



  • 4 to 1 MHz extended operating frequency range
  • 2D, color Doppler, M-mode, advanced XRES and multivariate harmonic imaging
  • High resolution imaging for abdominal and cardiac applications: Cardiac, OB/GYN, Lung, Abdomen and FAST imaging preset optimizations
  • Center line marker
  • USB-C transducer with replaceable cable
Philips ultrasound product s4-1

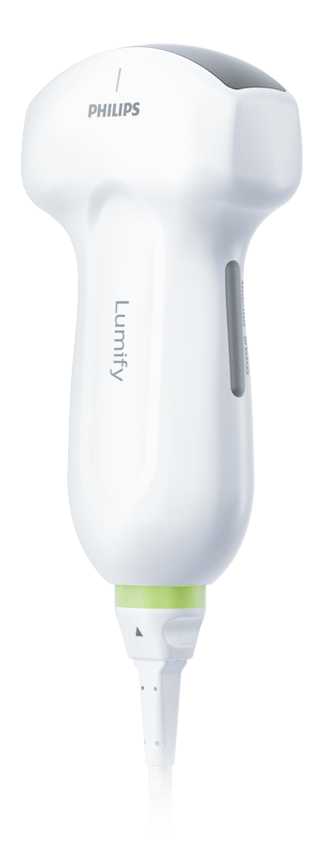

Lumify C5-2 broadband curved array transducer



  • 5 to 2 MHz extended operating frequency range
  • 50mm radius of curvature
  • 2D, color Doppler, M-mode, advanced XRES and multivariate harmonic imaging, SonoCT
  • High resolution imaging for deeper applications: abdominal, gall bladder, OB/GYN and lung imaging preset optimizations
  • Center line marker
  • USB-C transducer with replaceable cable
Philips ultrasound product s5-2
Philips ultrasound product c5-2

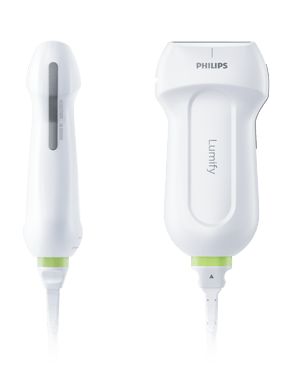

Philips ultrasound product L12-4

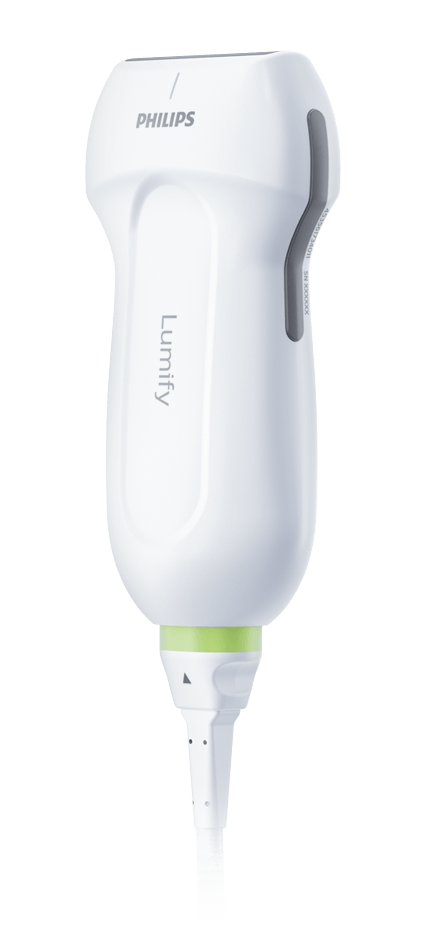

Lumify L12-4 broadband linear array transducer



  • 12 to 4 MHz extended operating frequency range
  • Aperture size: 34mm
  • 2D, steerable color Doppler, M-mode, advanced XRES and multivariate harmonic imaging, SonoCT
  • High resolution imaging for shallow applications: Soft Tissue, Vascular, Superficial, Musculoskeletal, and Lung
  • Center line marker
  • USB-C transducer with replaceable cable
Philips ultrasound product L12-4

Your device. Philips ultrasound.



Lumify works with your compatible smart device, giving you an incredible ultrasound system on top of the device's full functionality. Just download the app via the Google Play Store, connect the USB ultrasound transducer, and start scanning.



Apple does not support Lumify at this time, but we are always exploring opportunities to expand support for all platforms.

Lumify ultrasound compatible tablet

Compatible devices



Click here to reference a range of compatible tablets and their specifications.

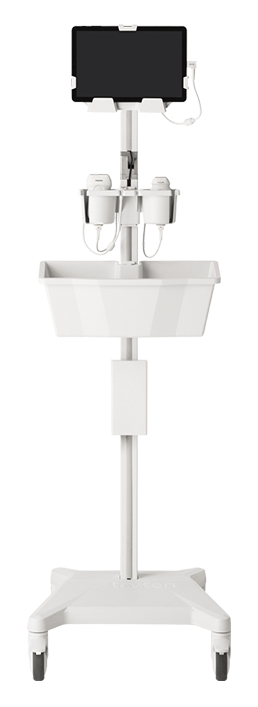

Mounting solutions



To learn more about possible mounting solutions for Lumify visit the Tryten or GCX websites.

Philips ultrasound with cable

The Lumify rugged Android system is a turnkey solution

The Lumify rugged system

Components

  • 1, 2 or 3 transducers with
  • quick-release cables
  • Samsung Galaxy Tab S2 8”
  • Rugged tablet case
  • Rugged carry case
  • Charging cables
  • User manual (paper and digital)
  • Quick-start guide
  • Ultrasound gel bottle (0.25L)
  • Lumify carry bag
  • Rugged components made for demanding environments.



Specifications

  • IP67 rating; protection against dust and liquid immersion to 1 meter for 30 minutes.
  • Tablet tested to withstand 3’ drop to a hard surface.
  • Contents tested in carry case to withstand 4’ drop to a hard surface.
  • Tested to withstand high and low temps ranging from -40°C to +71°C.
  • Tests conducted to meet MIL-STD-810G, IEC 60529, IEC 60601-1 and RTCA DO-160G

The Lumify rugged system is a turnkey solution

The Lumify rugged system

Components

  • 1, 2 or 3 transducers with
  • quick-release cables
  • Samsung Galaxy Tab S2 8”
  • Rugged tablet case
  • Rugged carry case
  • Charging cables
  • User manual (paper and digital)
  • Quick-start guide
  • Ultrasound gel bottle (0.25L)
  • Lumify carry bag
  • Rugged components made for demanding environment

Specifications

  • IP67 rating; protection against dust and liquid immersion to 1 meter for 30 minutes.
  • Tablet tested to withstand 3’ drop to a hard surface.
  • Contents tested in carry case to withstand 4’ drop to a hard surface.
  • Tested to withstand high and low temps ranging from -40°C to +71°C.
  • Tests conducted to meet MIL-STD-810G, IEC 60529, IEC 60601-1 and RTCA DO-160G

Lumify is always at your side

The Lumify custom carry case is designed to be lightweight, comfortable, and cleanable so that the Lumify USB ultrasound machine easily goes where you do.

Designed to fit:

Philips ultrasound accessory bag specifications white
*
