Assess leaflet orientation for grasping with 3D Navigation
- By Philips
- May 20 2026
- Duration 6: 28
Philips VeriSight Pro 3D ICE Catheter helps users achieve excellent image quality for tricuspid grasping procedures. When anatomy limits conventional views, our 3D navigation technique enables the highest resolution grasping views in 3D MPRs, and improves 2D or xPlane imaging, supporting grasping with any mode desired. [1-4] Quickly learn how to optimize views with our 3D Navigation technique in this step-by-step video using a cardiac bio-simulator and tricuspid repair device.
At-a-glance:
- 0:39: Complement TEE imaging with 3D ICE for clearer views of valve anatomy
- 2:17: Demonstration of 3D Navigation plane manipulation to enhance image quality, resulting in high-resolution xPlane views
- 3:57: Track catheter maneuvers with 3D (advancing, retracting, clocking, and using left/right flex) for precise alignment and enhanced grasping views
- 5:25: Using 3D Navigation technique in real-time
Goal of 3D Navigation

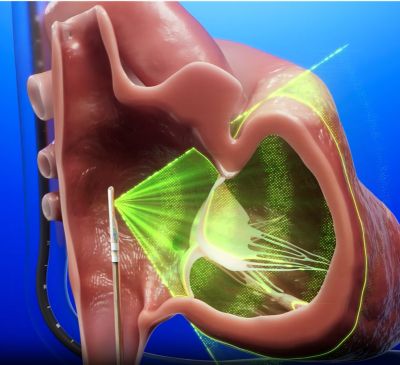

Use the 3D environment to intentionally align a high-resolution elevation plane (red plane in MPR) with the arms of the device so optimized xPlane views can be utilized to assess grasp and adequate leaflet insertion.
Common catheter movements
- Advance: Planes move toward aorta (anterior)
- Retract: Planes move toward IVC (posterior)
- Clock: Planes move to “look” septal
- Counter-clock: Planes move to “look” lateral
- Flex left: Turns volume left
- Flex right: Turns volume right

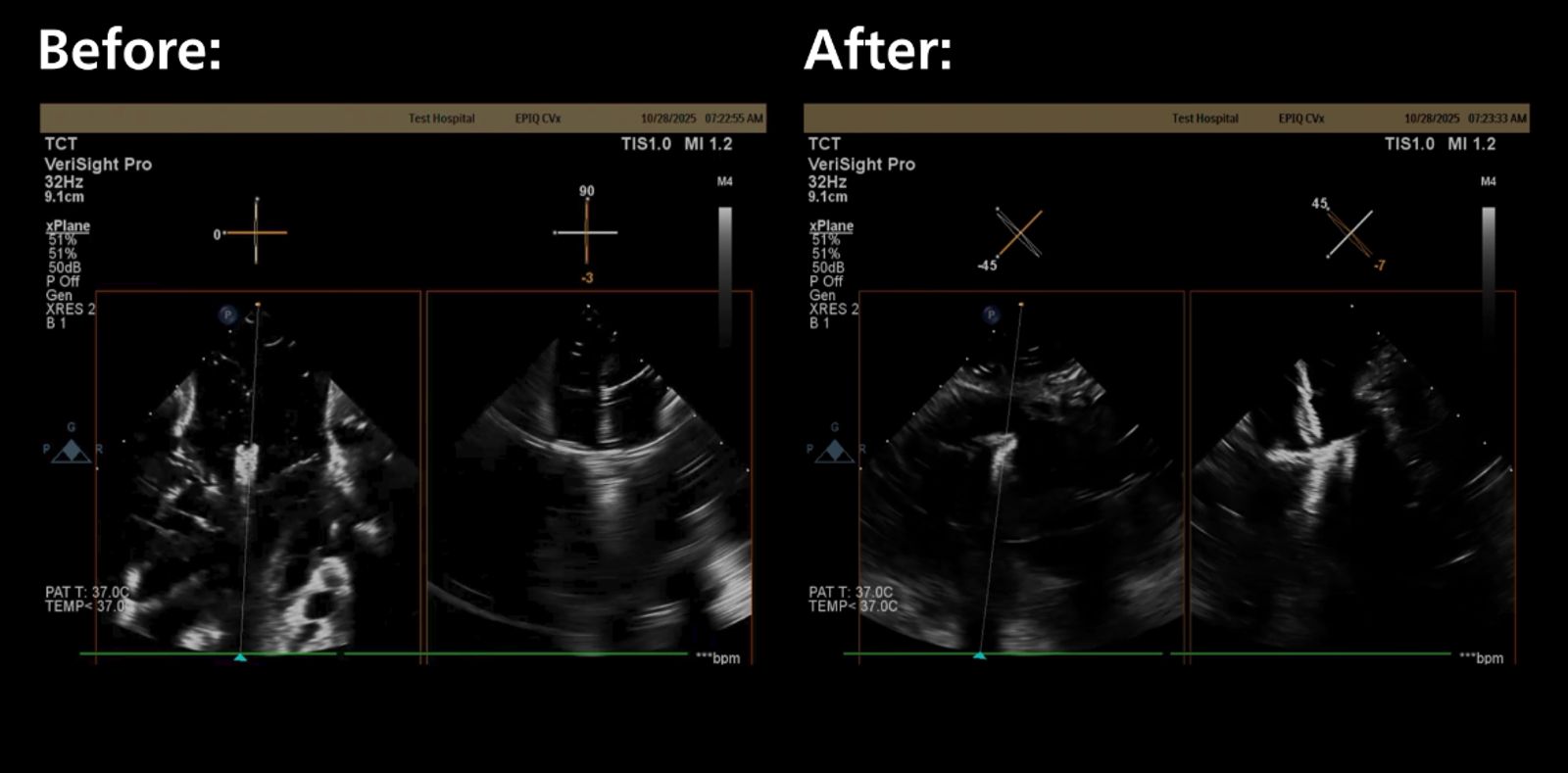

ICE image before and after 3D navigation technique is applied
Transform your tricuspid procedures
Detailed anatomic visualization is essential for both T-TEER and TTVR procedural success, but visualization of leaflet grasp or anchor capture can be challenging with transesophageal echocardiography (TEE) alone. [2-4] The integration of Philips VeriSight Pro 3D ICE imaging with TEE supports accurate, real-time guidance during device deployment. Utilizing the 3D Navigation technique provides a flexible method to enhance image quality, allowing for quick adjustments to improve grasping views.
