Pathology Scanner SG60
Fully automated pathology scanner*
Pathology Scanner SG60
Fully automated pathology scanner*
SG60 is designed to accommodate laboratories with a lean workflow and need to scan small batches of slides to achieve operational excellence and short turnaround times by scanning batches in parallel. With a high throughput, high first time right rate and load and walk away scanning, the SG60 enables you to digitize your histology samples and obtain high quality clinical diagnostic images for routine use and integrated pathology networks.
Clinical image gallery
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
- Clinical image digital pathology
Features
3D ready technology
The Pathology Scanner Second Generation hardware solution prepared for multi-layer scanning.
Affordable total cost of ownership per digitized slide
The SG300 is designed to for medium to large laboratories that are running a traditional workflow with large batches of slides are processed for scanning at a few occasions per day. Offering high image quality, full automation and same first time right rate as the SG60, the SG300 enables high, clinical representative, throughput through it's scan speed, slide handling and non-rectangular ROI optimization. This results in n short turnaround times and a very low total cost of ownership (TCO/slide) as overnight scanning enables high utilization of the SG300.

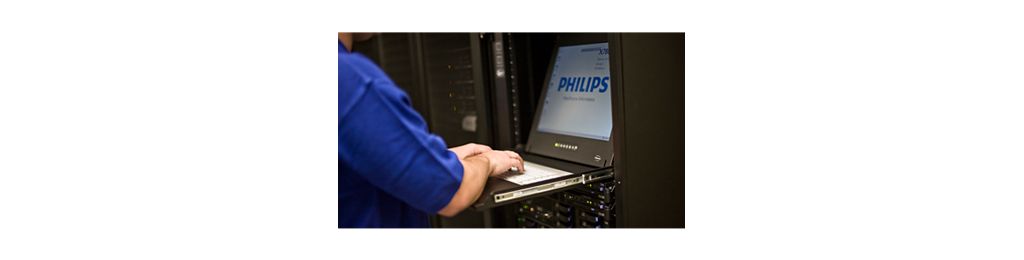

Application server and storage software
The backbone of the Philips IntelliSite Pathology Solution* is a customizable server and storage configuration that offers management of image repositories, comprehensive LIS interoperability, and tailored network options. This component enables comprehensive integration with your institute’s information systems, creating a network for histology image sharing with features like automatic data management that positively impact laboratory effectiveness.
Specifications
- Pathology Scanner Second Generation
- Slide Capacity
- 60
- Scanning method
- TDI line scanning
- Focus method
- Autofocus
- Output format
- iSyntax Philips proprietary file format with either RAW or iSyntax compression
- Slide rack
- Winlab LS-20/ Winlab LSM-20, Sakura 4768 20-slide basket (max. number of slides 20)
- Operating temperature
- 10 to 35°C
- Dimensions (LxWxH in mm) doors closed
- 680x800x675
- Scan time (excluding handling and pre-scan per slide)
- SG60 ≤ 43 seconds at 40x equivalent (15x15mm scan area)
- Total scan time (including handling and pre-scan) per slide
- SG60 ≤ 62 seconds at 40x equivalent (15x15mm scan area)
- Average percentage of tissue detected and scanned
- ≥ 99.5%
- Power supply
- 100-240 V AC, 50/60 Hz, 700 Watt
- Magnification objective
- NA of 0.75 plan Apo
- Pixel size/ resolution
- 0.25 μm/ pixel
- Compliance to standards
- EN IEC 61010-1:2010 /A1:2016, EN IEC 61010-2-101:2018, EN IEC 61326-1:2013 FCC Part 15, The IEC 6132
- The IEC 61326-2-6 (IVD), IEC 61326-1:2012 IEC 61326-2-6:2012
- Barcode support
- 1D code type: Code 39 with mod 43 checksum (ISO/IEC 16388:2007)
- Code 128 (ISO/IEC 15417:2007)
- 2D code type: Data Matrix ECC 200 - Code 39,
- Code 128 (ISO/IEC16022:2006) Recommended barcode type for all glass slides.
- Relative humidity (no condensation)
- Between 50% at 40 °C and 80% at 31 °C
- Weight (kg)
- 145
- SG connectivity ports
- Ethernet cable for 10GB (required CAT 6 Cable) / and 1GB/s network cable with RJ45
- connector (preferable CAT 6)
- Image Management System Review Application
- CPU
- Intel Xeon E5-1620 v3 @ GHz or similar
- RAM
- 8 GB physical memory
- Connectivity
- 100 Mbit/s Ethernet
- Video card
- GPU Memory: 4GB GeForce GTX 1050 Ti or similar*
- *Updating the graphics card driver on the client computer to the latest version is recommended.
- Software requirements on client computer
- Operating system
- Microsoft Windows 8, 8.1 or 10-64 bit
- Browser software supporting HTML 5 standard
- 100 Mbit/s Ethernet
- Connectivity
- Chrome (recommended), Internet Explorer***
- *** Chrome is required for the feature Use my computer for image processing.
- Video card
- GPU Memory: 4GB
- GeForce GTX 1050 Ti or similar*
- Other software
- *Updating the graphics card driver on the client computer to the latest version is recommended.
- Image Management System Application Server and Storage Software
- CPU
- Dual socket Intel 6-core @ 2.3GHz
- RAM
- 32GB
- Storage
- Protection against a single disk failure, e.g. RAID configuration or data replication.
- For usage with 5 scanners or more: Flash Disks
Disclaimer
*It has market clearance in EEA (European Economic Area), United Kingdom, Ireland and Singapore. Specific conditions apply to the USA market.
Philips Intellisite Pathology Solution (PIPS) is 510k pending.
Philips IntelliSite Pathology Solution is in conformance with Regulation (EU) 201 7/746 of the European Parliament and of the Council of 5 April 2017 on In Vitro Diagnostics (IVDR).
