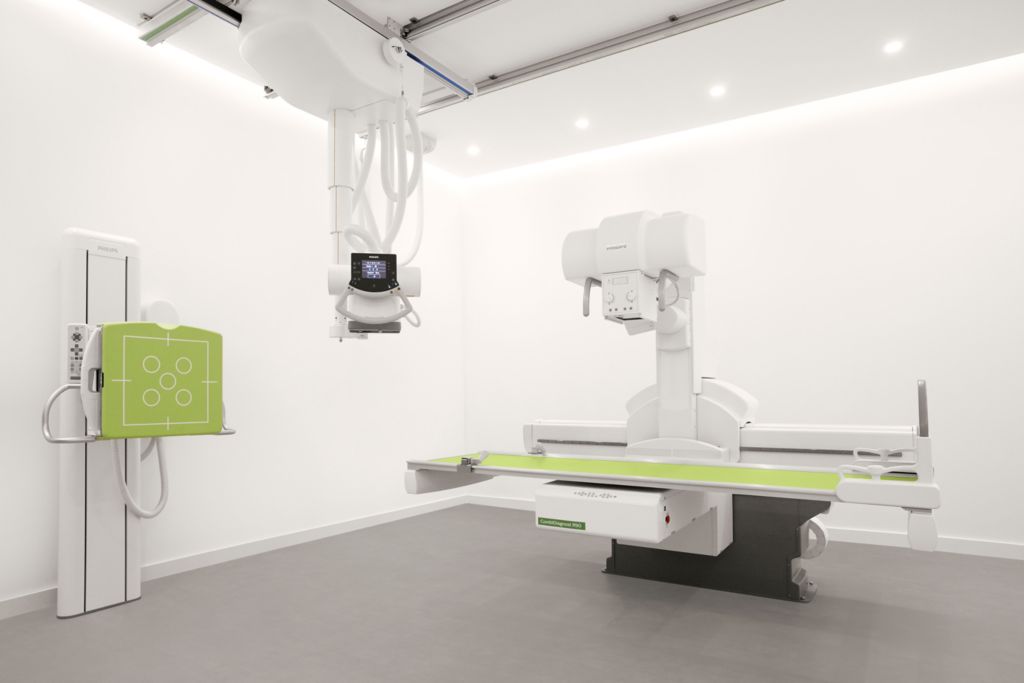

CombiDiagnost R90
Cross functional DRF system

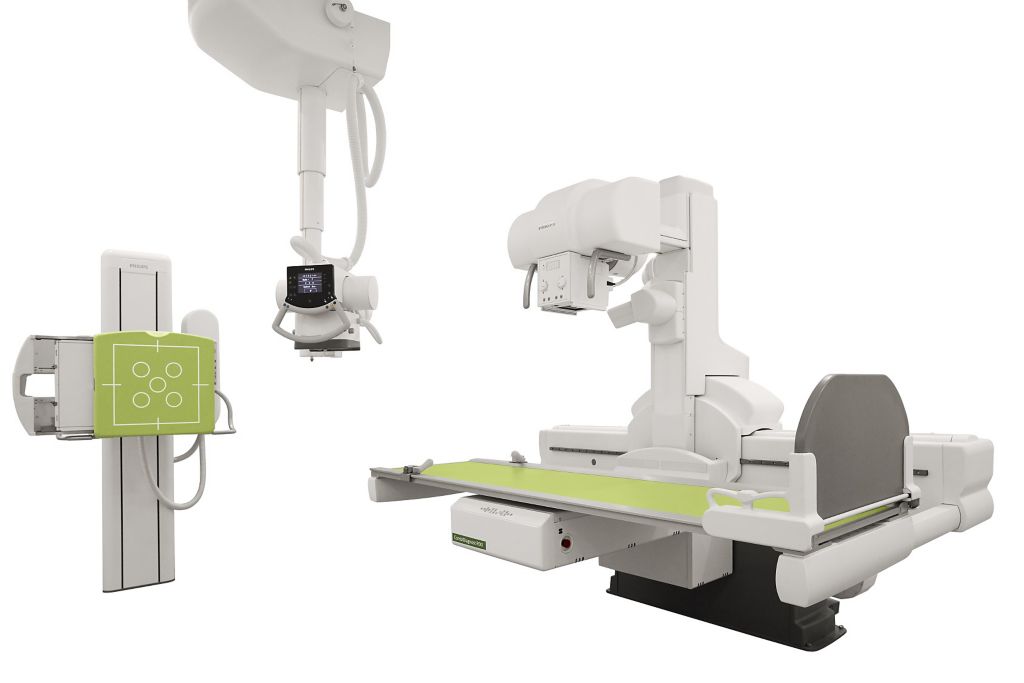

CombiDiagnost R90
Cross functional DRF system
This remote controlled fluoroscopy system in combination with high-end digital radiography is designed for consistent, superb image quality and high room utilization, in a cost effective manner.
Features

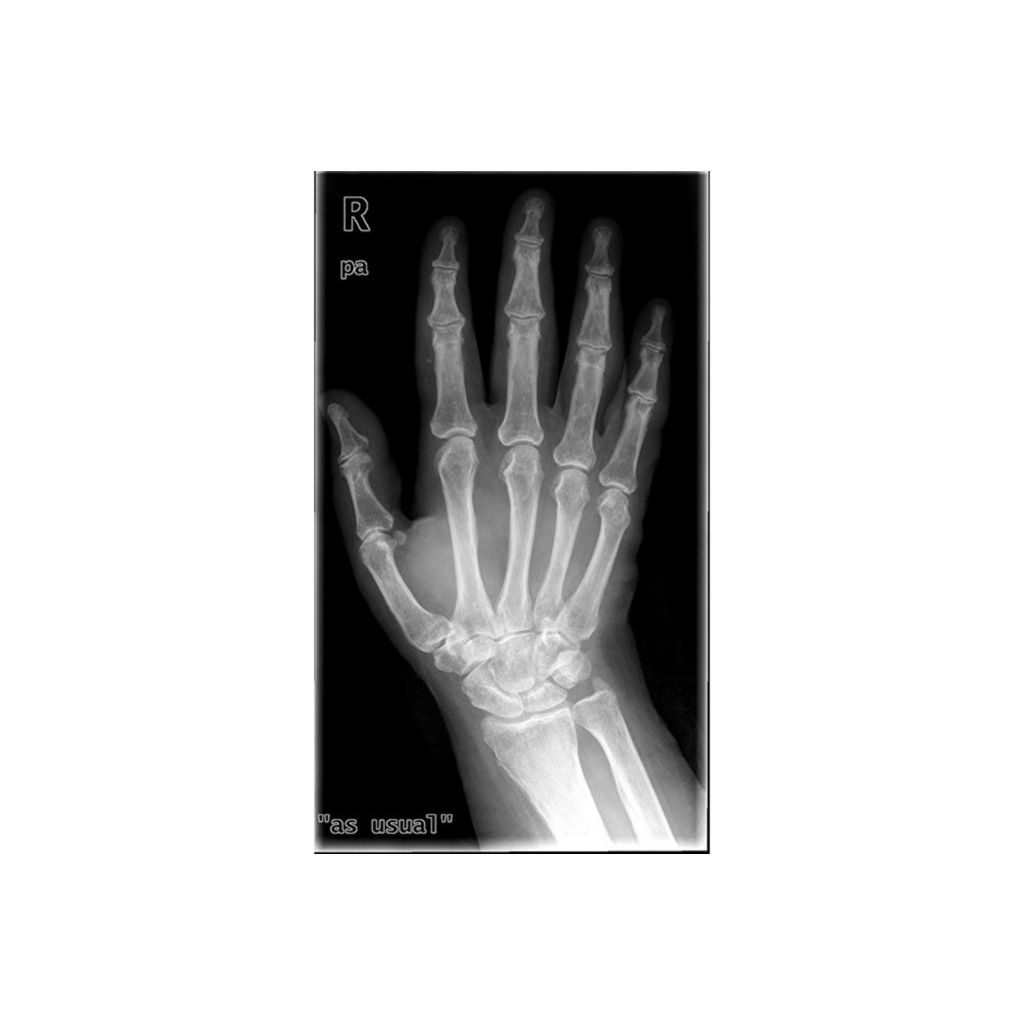

Hidden details revealed
Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.

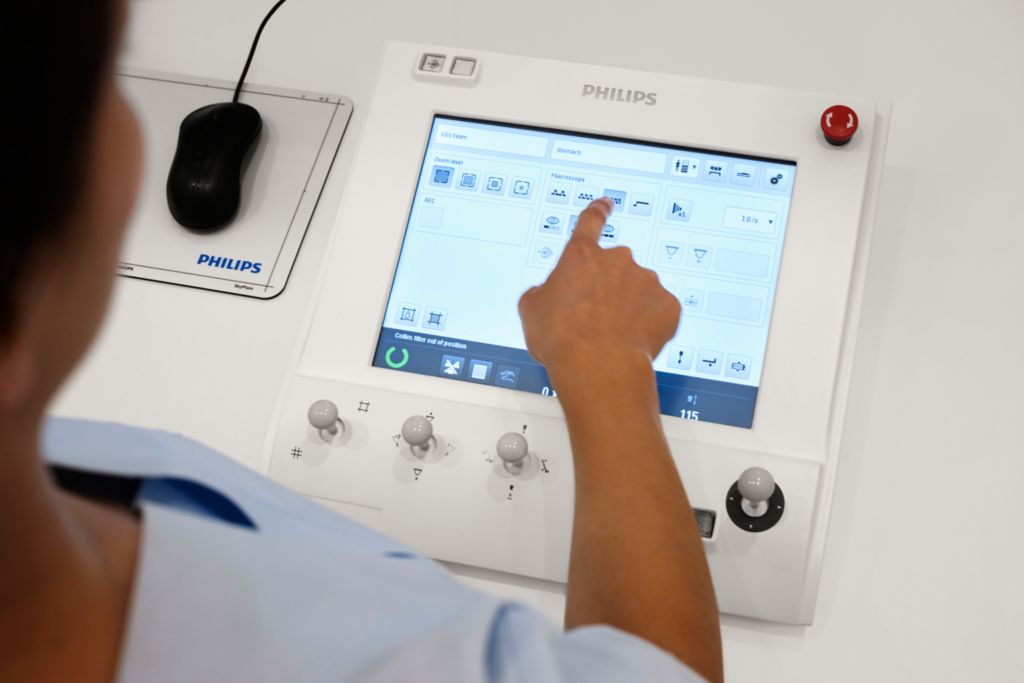

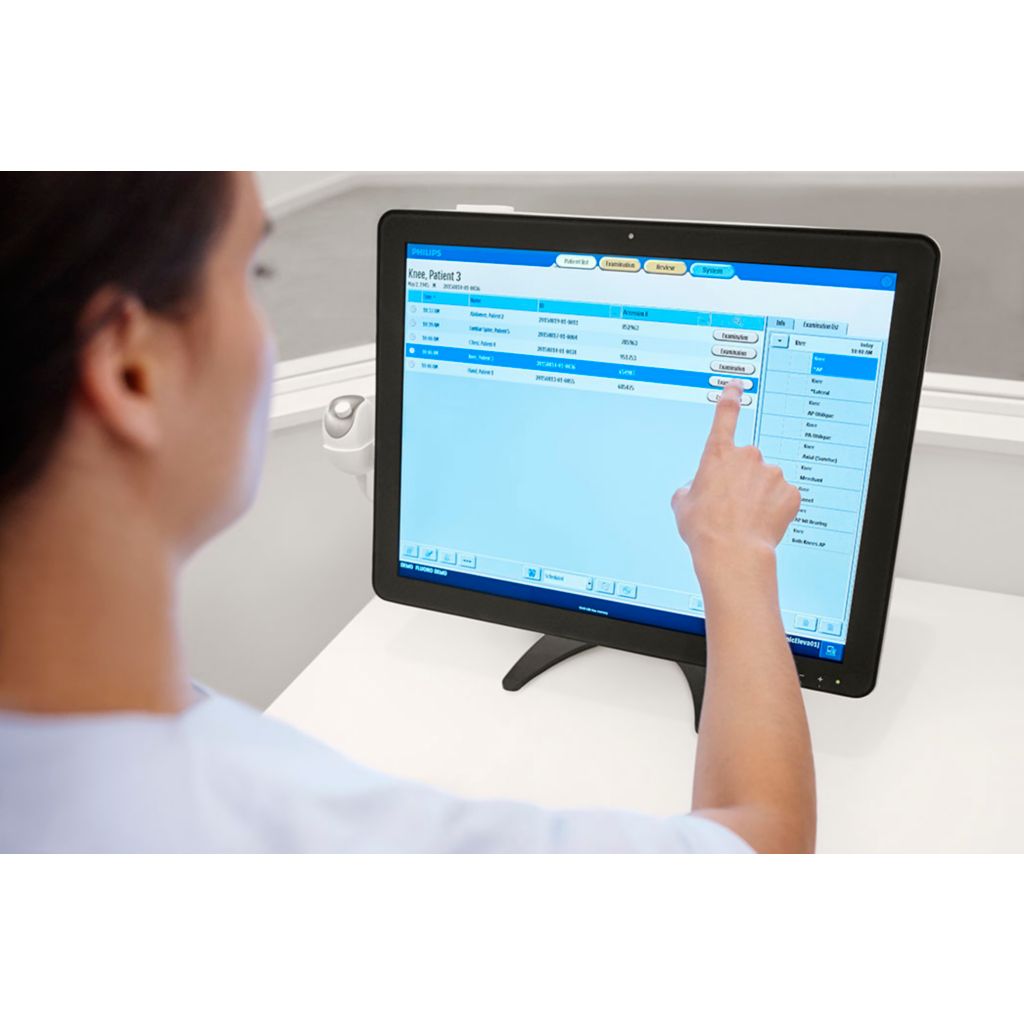

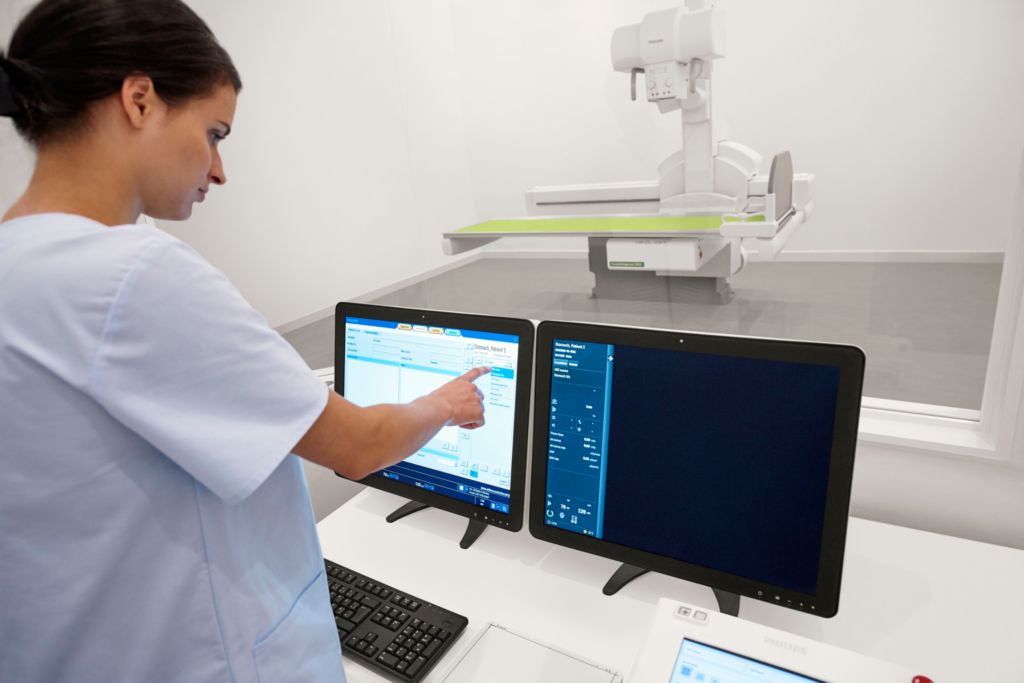

Quick, intuitive workflow

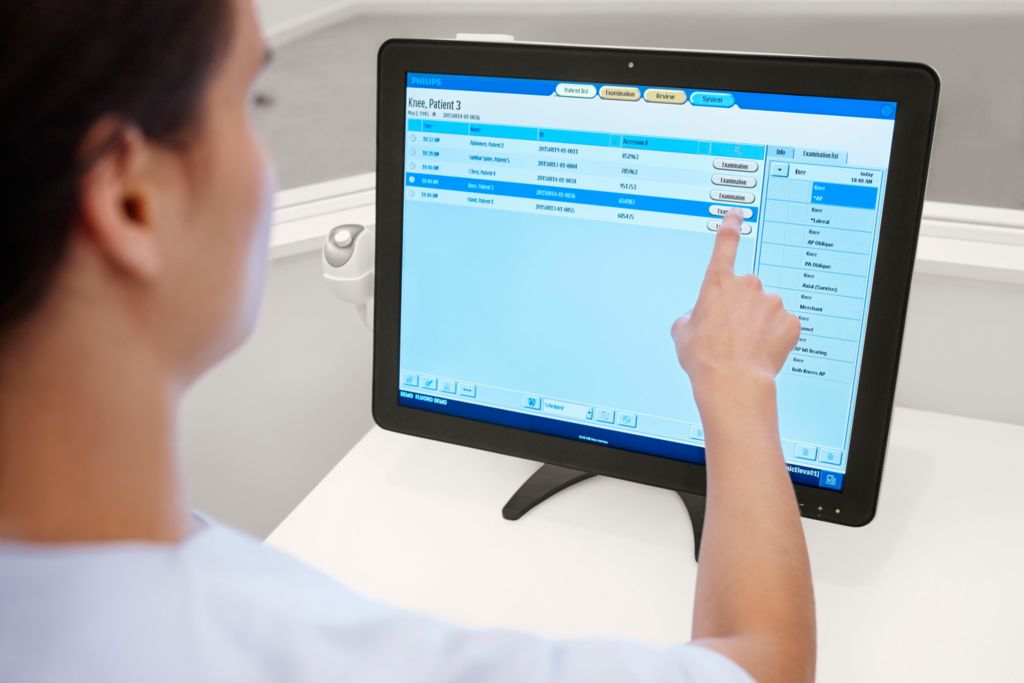

The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.
Supports diagnostic confidence
Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.
Specifications
- Tube: SRO 33100 ROT380 (for CS)
- focal spot
- 0.6 /1.2
- Maximum voltage
- 150 kV
- Anode heat storage capacity
- 300 kHU (200kJ)
- Ceiling Suspension
- Ceiling height at SID 110 cm (44")
- 2.83 m to 3.21 m (8'8.3" - 10'5.9")
- Type
- Four-part telescopic column
- Collimator
- Motorized, automatic

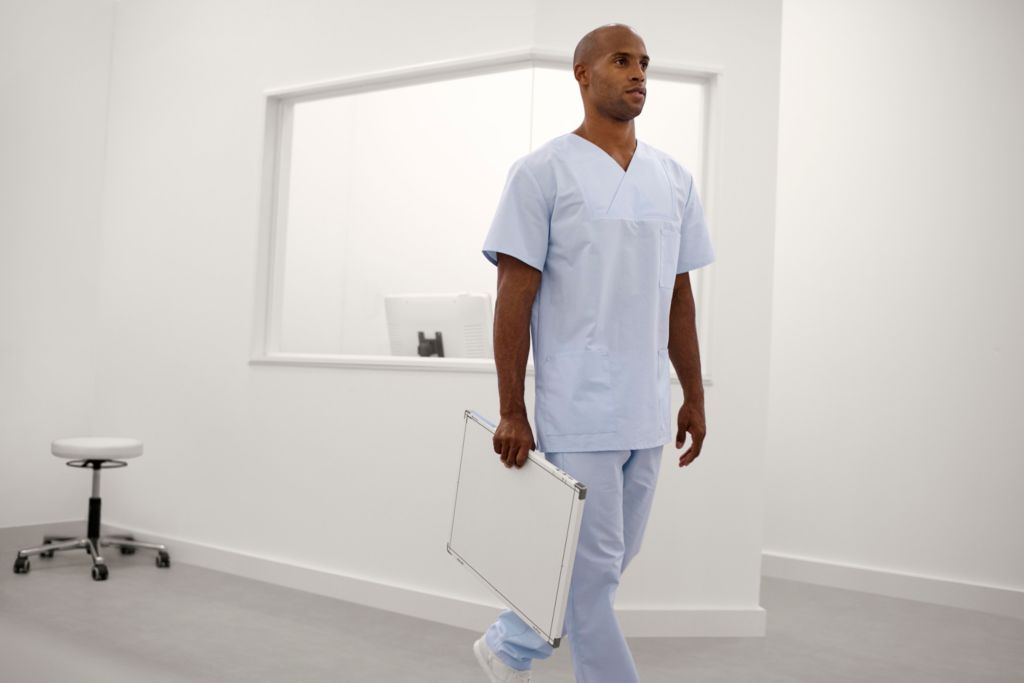

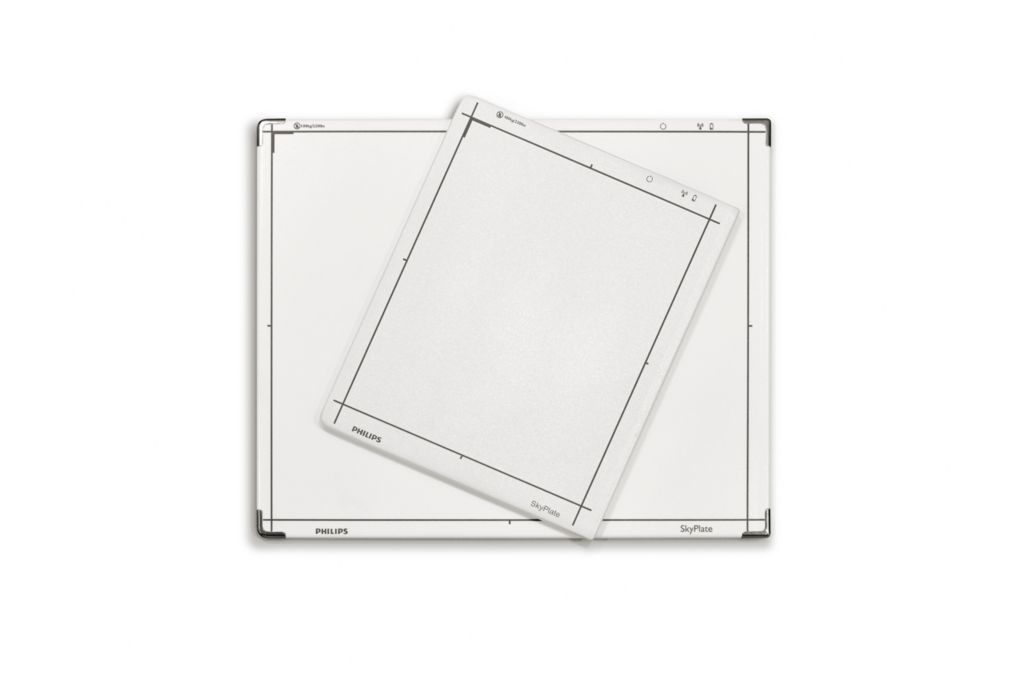

- Wireless detector: SkyPlate Large
- Image matrix size
- 2330 x 2846 pixel
- Active area
- 34.48 cm x 42.12 cm (13.6" x 16.6")
- Type
- Digital Csl (Cesium Iodide) flat detector
- Detector size
- 35 cm x 43 cm (14" x 17")
- Wireless detector: SkyPlate Small
- Type
- Digital Csl (Cesium Iodide) flat detector
- Active area
- 22.2 cm x 28.4 cm (8.7" x 11.2")
- Image matrix size
- 1500 x 1920 pixel
- Detector size
- 24 cm x 30 cm (app. 10" x 12")
- Tube: SRO 33100 ROT380
- focal spot
- 0.6 /1.6
- Anode heat storage capacity
- 300 kHU (200kJ)
- Maximum voltage
- 150 kV
- Tube: SRM 0608 ROT GS 505
- Anode heat storage capacity
- 800 kHU (593kJ)
- Maximum voltage
- 125 kV (110 kV in GCF)
- focal spot
- 0.6 /0.8
- Dynamic Flat Detector
- Detector Size
- 43 cm x 43 cm (17"x17")
- Acquisition mode pulsed fluoroscopy
- Up to 20 per second
- Image matrix size
- 2,874 pixel x 2,840 pixel
- Pixel size
- 148 µm
- Acquisition mode continious fluoroscopy
- Up to 30 frames per second
- Generator
- Tube voltage exposure
- 40 - 150 kV
- Power
- 65 kW, 80kW optional
- Exposure techniques
- Manual: kV-mAs or kV-mA-s
- Automatic Exposure Control (AEC) - Intelligent Exporuse (IQX), In-Pulse controlled
- Automatic kV reduction techniques
- Fluoroscopy techniques
- Pulsed fluoroscopy (PF), in-pulse controlled
- Grid-controlled fluoroscopy (GCF), in-pulse controlled
- Tube voltage flouroscopy
- 40 - 125 kV
- Geometry
- Table height
- 62 cm - 142 cm (24.4"-59.9")
- Tube column movement range
- 160 cm (63")

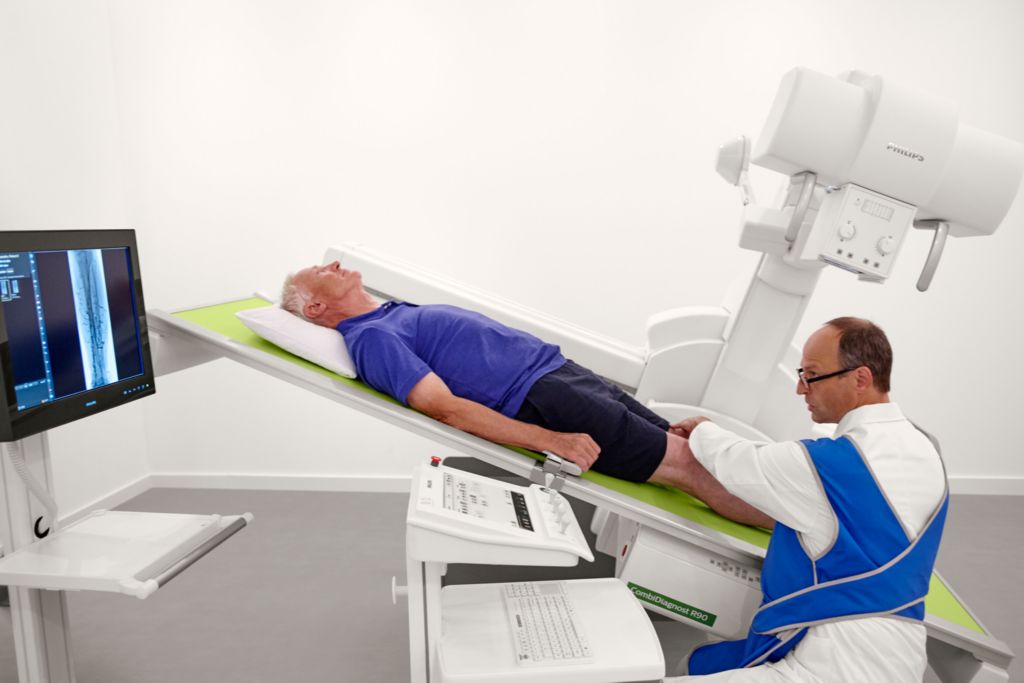

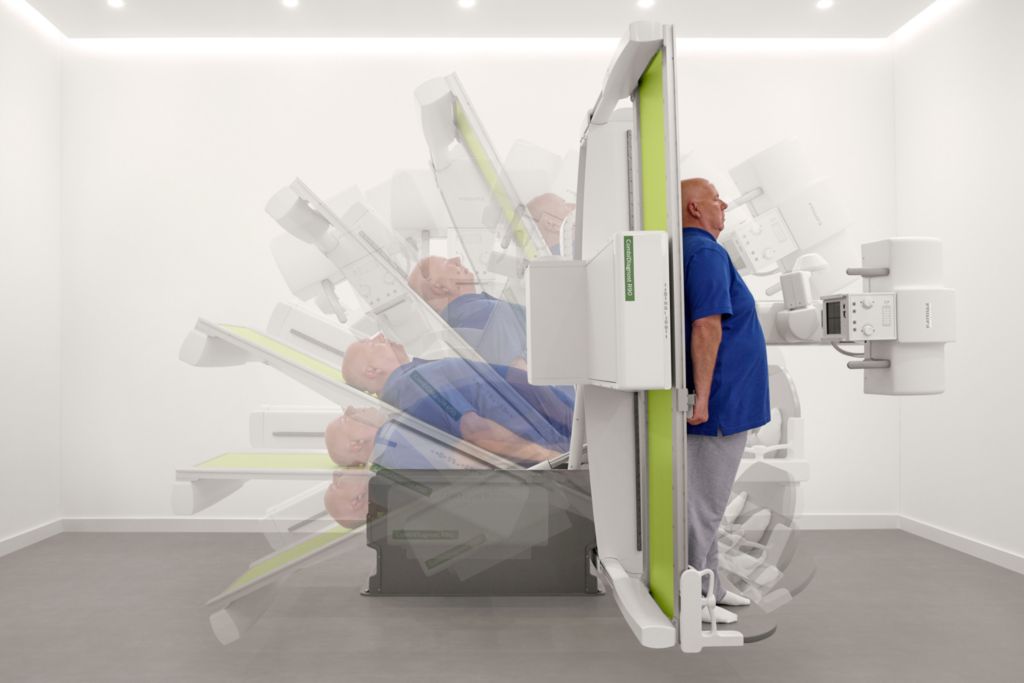

- Table tilt angle
- -90°/+90°
- Motorized compressor
- 3 kg - 15 kg (6.6 lbs - 33.1 lbs) compression force
- Maximum patient weight
- 284 kg (626 lbs) without limitations

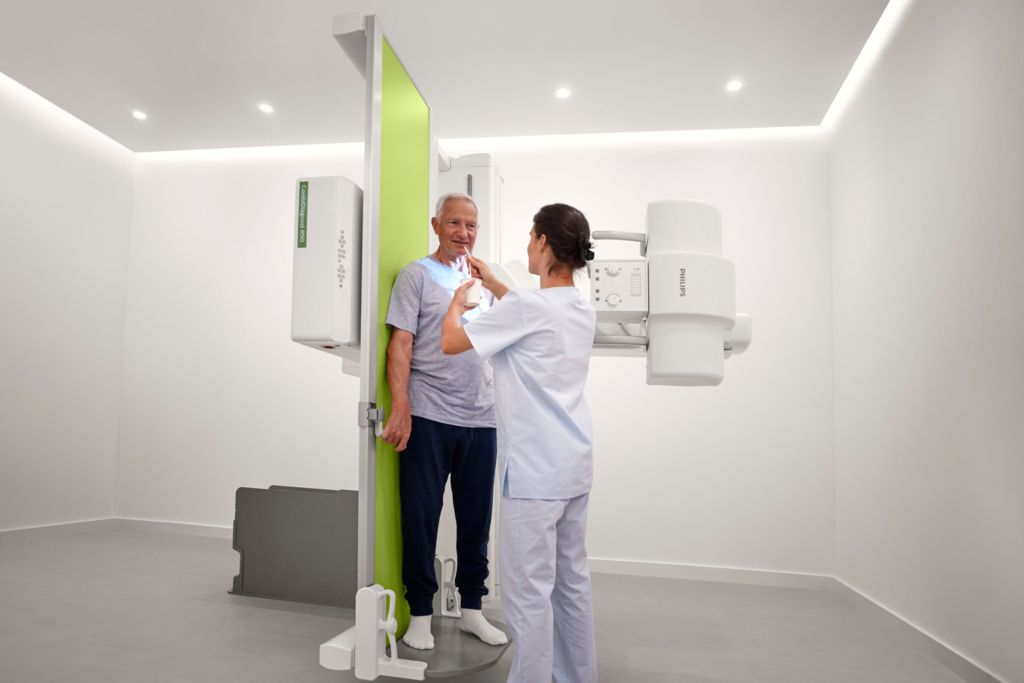

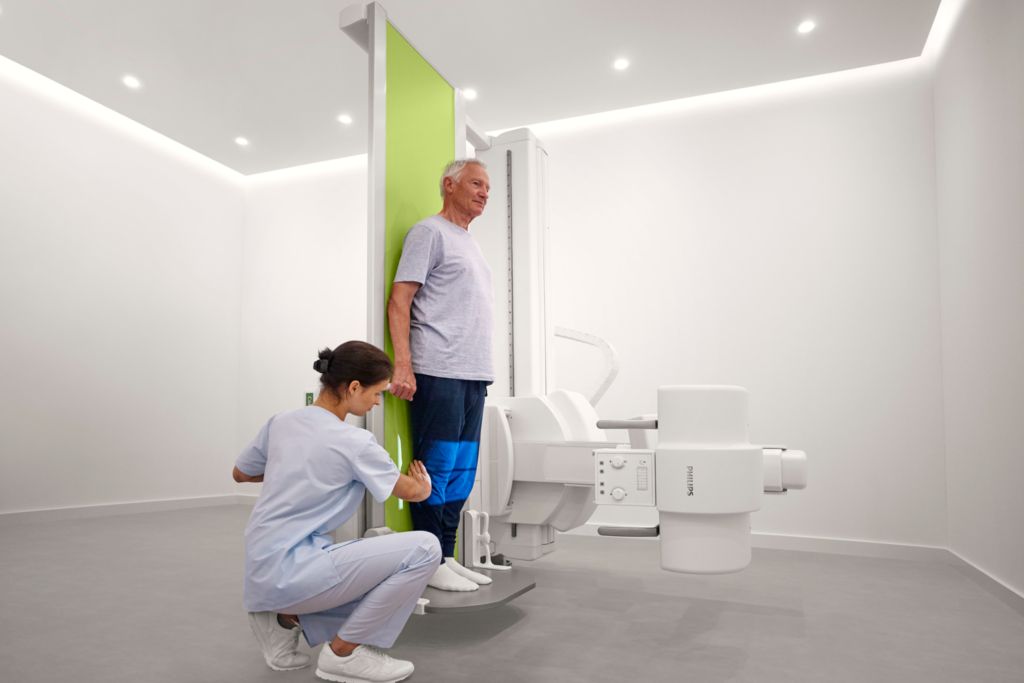

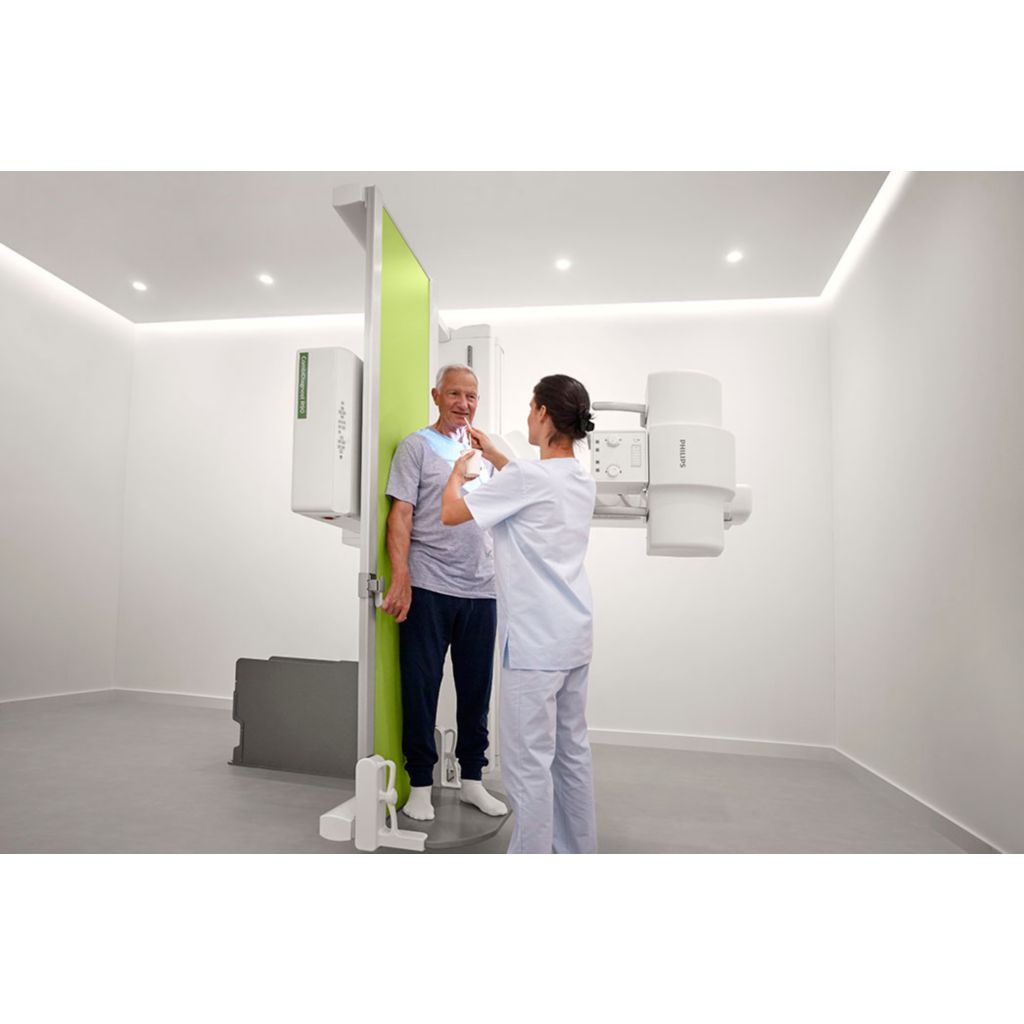

- Digital vertical stand
- Detector Size
- SkyPlate detector
- Vertical travel
- 30 cm - 180 cm (11.8" - 5'11")

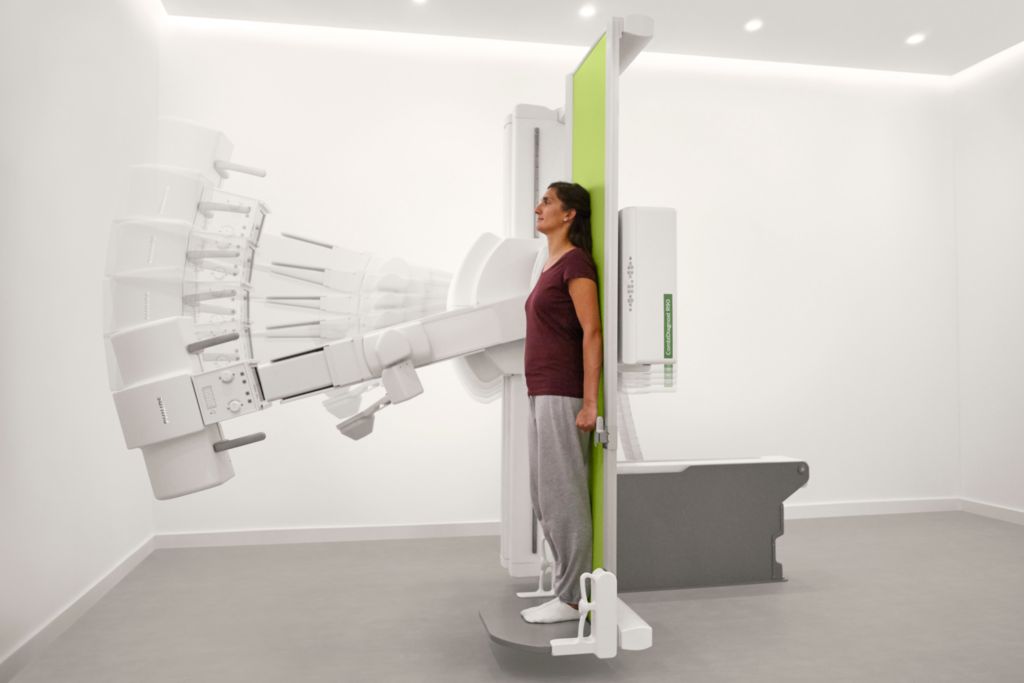

- Motorized tilting
- Optional, -20° to +90°
