Quick-Cross Select Support catheter

Quick-Cross Select

Support catheter

Find similar products

Designed to support the most extreme cases with the ability to navigate and select. Its 45° angle provides directed access to branched anatomy and allows navigation through complex and diffuse disease. Its low-profile tapered tip ensures seamless catheter-to-guidewire transition.

Features
Stainless steel braid

Stainless steel braid

Provides additional strength, torque and pushability.

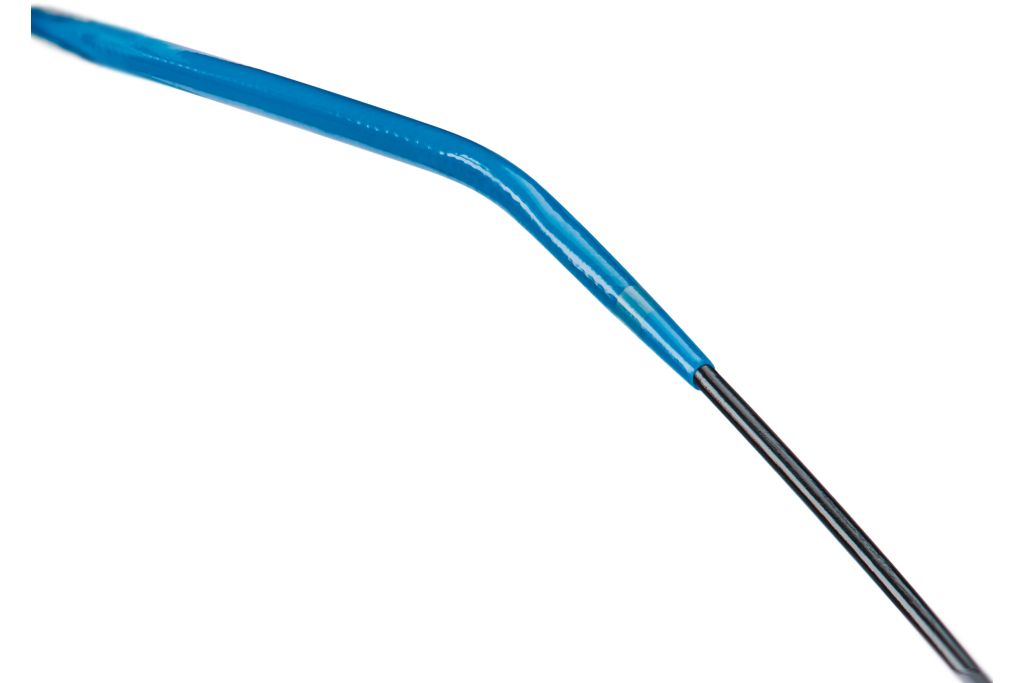

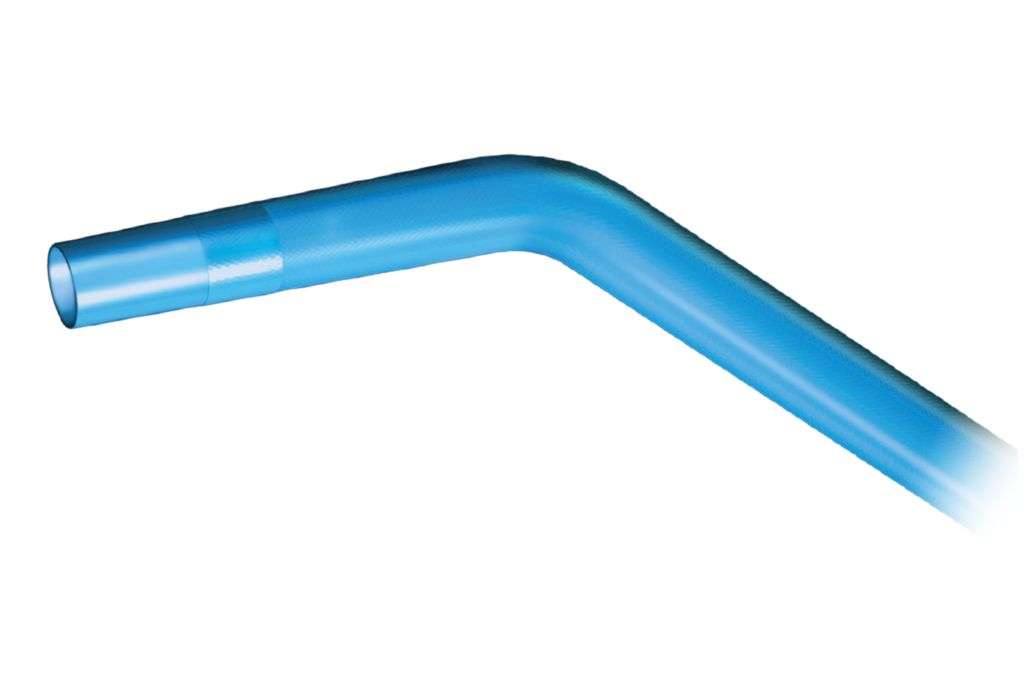

45˚ angled tip

45˚ angled tip

Allows the ability to navigate through complex anatomy and diffuse disease.
Three radiopaque markers

Three radiopaque markers

Distinct radiopaque markers confirms catheter positioning.
Hydrophilic coating

Hydrophilic coating

The hydrophilic coating allows for smooth tracking.
Low profile tapered tip

Low profile tapered tip

Seamless catheter-to-guidewire transition facilitates crossing of challenging lesions, and allows for tracking through tortuous anatomy and diffuse disease.
  • Stainless steel braid
  • 45˚ angled tip
  • Three radiopaque markers
  • Hydrophilic coating
See all features
Stainless steel braid

Stainless steel braid

Provides additional strength, torque and pushability.
45˚ angled tip

45˚ angled tip

Allows the ability to navigate through complex anatomy and diffuse disease.
Three radiopaque markers

Three radiopaque markers

Distinct radiopaque markers confirms catheter positioning.
Hydrophilic coating

Hydrophilic coating

The hydrophilic coating allows for smooth tracking.
Low profile tapered tip

Low profile tapered tip

Seamless catheter-to-guidewire transition facilitates crossing of challenging lesions, and allows for tracking through tortuous anatomy and diffuse disease.

Specifications

Model number 518-093
Model number 518-093
Proximal shaft diameter
  • 0.044"
Radiopaque marker spacing
  • 15 mm
Working length
  • 150 cm
Guidewire compatibility
  • 0.018"
Throw angle
  • 45°
Distal shaft outer diameter
  • 0.038"
Distal tip profile
  • 2.1F / 0.028"
Sheath compatibility
  • 4F
Guide compatibility
  • 5F
Model number 518-091
Model number 518-091
Guide compatibility
  • 5F
Throw angle
  • 45°
Proximal shaft diameter
  • 0.044"
Distal tip profile
  • 2.1F / 0.028"
Working length
  • 135 cm
Sheath compatibility
  • 4F
Distal shaft outer diameter
  • 0.038"
Radiopaque marker spacing
  • 15 mm
Guidewire compatibility
  • 0.018"
Model number 518-077
Model number 518-077
Working length
  • 65 cm
Distal tip profile
  • 3.2F / 0.042"
Guidewire compatibility
  • 0.035"
Proximal shaft diameter
  • 0.059"
Guide compatibility
  • N/A
Sheath compatibility
  • 5F
Radiopaque marker spacing
  • 50 mm
Throw angle
  • 45°
Distal shaft outer diameter
  • 0.052"
Model number 518-087
Model number 518-087
Radiopaque marker spacing
  • 15 mm
Guidewire compatibility
  • 0.014"
Guide compatibility
  • 5F
Working length
  • 150 cm
Proximal shaft diameter
  • 0.042"
Distal shaft outer diameter
  • 0.034"
Distal tip profile
  • 1.9F / 0.025"
Throw angle
  • 45°
Sheath compatibility
  • 4F
Model number 518-089
Model number 518-089
Radiopaque marker spacing
  • 15 mm
Proximal shaft diameter
  • 0.044"
Guide compatibility
  • 5F
Distal tip profile
  • 2.1F / 0.028"
Throw angle
  • 45°
Guidewire compatibility
  • 0.018"
Distal shaft outer diameter
  • 0.038"
Working length
  • 90 cm
Sheath compatibility
  • 4F
Model number 518-079
Model number 518-079
Guide compatibility
  • N/A
Distal tip profile
  • 3.2F / 0.042"
Throw angle
  • 45°
Working length
  • 90 cm
Distal shaft outer diameter
  • 0.052"
Sheath compatibility
  • 5F
Radiopaque marker spacing
  • 50 mm
Guidewire compatibility
  • 0.035"
Proximal shaft diameter
  • 0.059"
Model number 518-085
Model number 518-085
Working length
  • 135 cm
Radiopaque marker spacing
  • 15 mm
Sheath compatibility
  • 4F
Guide compatibility
  • 5F
Throw angle
  • 15 mm
Guidewire compatibility
  • 0.014"
Proximal shaft diameter
  • 0.042"
Distal tip profile
  • 1.9F / 0.025"
Distal shaft outer diameter
  • 0.034"
Model number 518-081
Model number 518-081
Working length
  • 135 cm
Radiopaque marker spacing
  • 50 mm
Guidewire compatibility
  • 0.035"
Guide compatibility
  • N/A
Distal tip profile
  • 3.2F / 0.042"
Distal shaft outer diameter
  • 0.052"
Sheath compatibility
  • 5F
Throw angle
  • 45°
Proximal shaft diameter
  • 0.059"
Model number 518-083
Model number 518-083
Guide compatibility
  • N/A
Distal shaft outer diameter
  • 0.052"
Sheath compatibility
  • 5F
Distal tip profile
  • 3.2F / 0.042"
Working length
  • 150 cm
Proximal shaft diameter
  • 0.059"
Guidewire compatibility
  • 0.035"
Radiopaque marker spacing
  • 50 mm
Throw angle
  • 45°
Model number 518-093
Model number 518-093
Proximal shaft diameter
  • 0.044"
Radiopaque marker spacing
  • 15 mm
Model number 518-091
Model number 518-091
Guide compatibility
  • 5F
Throw angle
  • 45°
See all specifications
Model number 518-093
Model number 518-093
Proximal shaft diameter
  • 0.044"
Radiopaque marker spacing
  • 15 mm
Working length
  • 150 cm
Guidewire compatibility
  • 0.018"
Throw angle
  • 45°
Distal shaft outer diameter
  • 0.038"
Distal tip profile
  • 2.1F / 0.028"
Sheath compatibility
  • 4F
Guide compatibility
  • 5F
Model number 518-091
Model number 518-091
Guide compatibility
  • 5F
Throw angle
  • 45°
Proximal shaft diameter
  • 0.044"
Distal tip profile
  • 2.1F / 0.028"
Working length
  • 135 cm
Sheath compatibility
  • 4F
Distal shaft outer diameter
  • 0.038"
Radiopaque marker spacing
  • 15 mm
Guidewire compatibility
  • 0.018"
Model number 518-077
Model number 518-077
Working length
  • 65 cm
Distal tip profile
  • 3.2F / 0.042"
Guidewire compatibility
  • 0.035"
Proximal shaft diameter
  • 0.059"
Guide compatibility
  • N/A
Sheath compatibility
  • 5F
Radiopaque marker spacing
  • 50 mm
Throw angle
  • 45°
Distal shaft outer diameter
  • 0.052"
Model number 518-087
Model number 518-087
Radiopaque marker spacing
  • 15 mm
Guidewire compatibility
  • 0.014"
Guide compatibility
  • 5F
Working length
  • 150 cm
Proximal shaft diameter
  • 0.042"
Distal shaft outer diameter
  • 0.034"
Distal tip profile
  • 1.9F / 0.025"
Throw angle
  • 45°
Sheath compatibility
  • 4F
Model number 518-089
Model number 518-089
Radiopaque marker spacing
  • 15 mm
Proximal shaft diameter
  • 0.044"
Guide compatibility
  • 5F
Distal tip profile
  • 2.1F / 0.028"
Throw angle
  • 45°
Guidewire compatibility
  • 0.018"
Distal shaft outer diameter
  • 0.038"
Working length
  • 90 cm
Sheath compatibility
  • 4F
Model number 518-079
Model number 518-079
Guide compatibility
  • N/A
Distal tip profile
  • 3.2F / 0.042"
Throw angle
  • 45°
Working length
  • 90 cm
Distal shaft outer diameter
  • 0.052"
Sheath compatibility
  • 5F
Radiopaque marker spacing
  • 50 mm
Guidewire compatibility
  • 0.035"
Proximal shaft diameter
  • 0.059"
Model number 518-085
Model number 518-085
Working length
  • 135 cm
Radiopaque marker spacing
  • 15 mm
Sheath compatibility
  • 4F
Guide compatibility
  • 5F
Throw angle
  • 15 mm
Guidewire compatibility
  • 0.014"
Proximal shaft diameter
  • 0.042"
Distal tip profile
  • 1.9F / 0.025"
Distal shaft outer diameter
  • 0.034"
Model number 518-081
Model number 518-081
Working length
  • 135 cm
Radiopaque marker spacing
  • 50 mm
Guidewire compatibility
  • 0.035"
Guide compatibility
  • N/A
Distal tip profile
  • 3.2F / 0.042"
Distal shaft outer diameter
  • 0.052"
Sheath compatibility
  • 5F
Throw angle
  • 45°
Proximal shaft diameter
  • 0.059"
Model number 518-083
Model number 518-083
Guide compatibility
  • N/A
Distal shaft outer diameter
  • 0.052"
Sheath compatibility
  • 5F
Distal tip profile
  • 3.2F / 0.042"
Working length
  • 150 cm
Proximal shaft diameter
  • 0.059"
Guidewire compatibility
  • 0.035"
Radiopaque marker spacing
  • 50 mm
Throw angle
  • 45°
  • *Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
