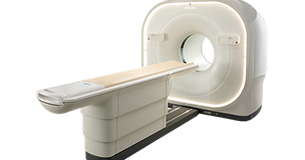

Your diagnosis depends on the details. Change the way you see them with the Philips Vereos PET/CT, the world's first digital PET scanner.
Neurology Imaging
See how Vereos PET/CT shows exceptional detail and outstanding anatomical imagery in this brain picture.
Cardiology Imaging
Compare heart scans for image quality and contrast.
Oncology Imaging
See the difference in image quality in this chest image.
Key features
How Digital Photon Counting works
The Digital Photon Counter (DPC) converts scintillating light directly to a digital signal.

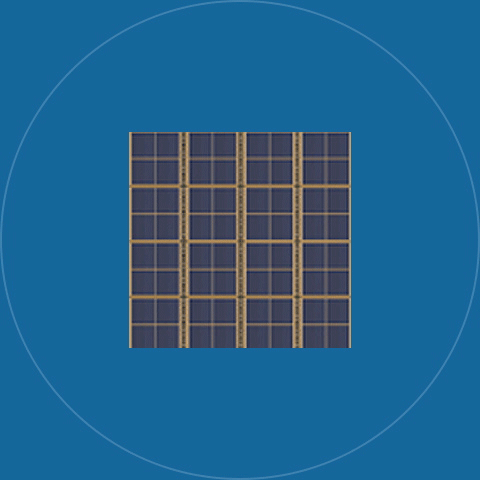

The DPC detector tile consists of an array of 64 pixels. Each pixel couples directly to a single scintillation crystal.
*GEMINI TF 16

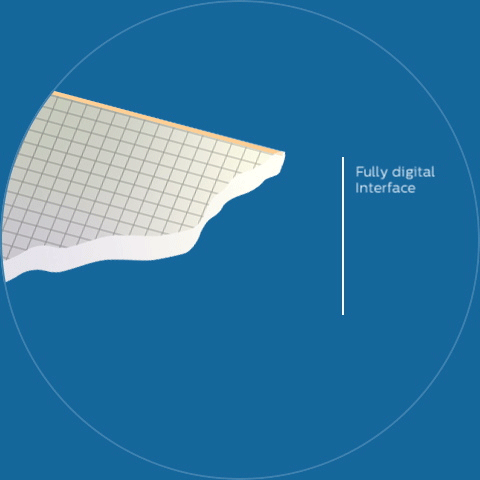

Each pixel contains thousands of microcells that enable detection of single photons. Each photon is converted directly into a pure binary output signal.

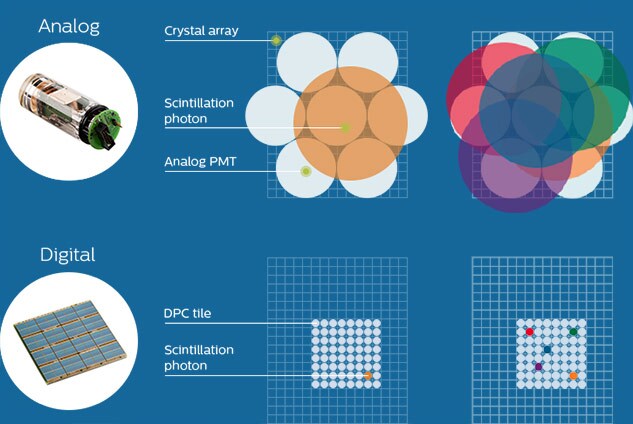

Advantages of digital detection
In conventional analog PET scanning, photomultipliers that are used to detect light output from the scintillator are limited in counting capabilities due to size and processing capabilities. To count photon events, light emitted from the scintillator is dispersed to multiple photomultiplier detectors. This sharing of information limits the capability of the PET detector to accurately process count rate information and location of the origin of the photon.
The Philips difference is digital. Unlike analog PET/CT scanners that use photomultipliers to detect light, the Vereos PET/CT scanner uses proprietary Digital Photon Counting (DPC) technology. It detects photons emitted from radiotracers individually by converting the scintillating light that collects them directly into a digital signal. This 1:1 coupling of crystals to light sensors provides faster time-of-flight than analog,* and approximately twice the sensitivity gain, volumetric resolution and quantitative accuracy.
Each scintillating light crystal is converted to a single digital pixel for approximately twice the sensitivity, volumetric resolution and quantitative accuracy of analog.*
*GEMINI TF 16
Digital that's really digital

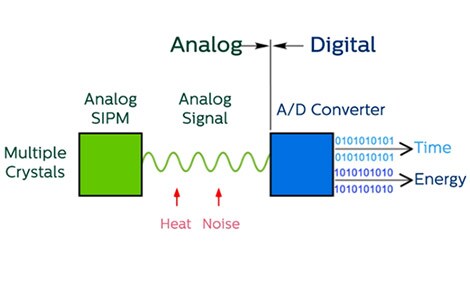

Analog SiPM
● Limited integration
● Analog signals to be digitized
● A/D converted needed

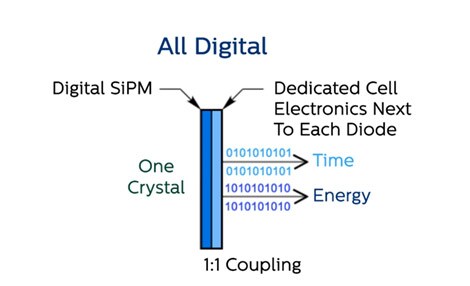

Digital photon counting Digital SiPMs
●●● Fully integrated
●●● Fully digital signals
●●● No A/D converted
Philips Digital Photon Counting
Redefine light detectors with digital SiPMs
Digital SiPMs create a new class of light detectors for ultra-low light levels down to single photons, by integrating both the sensor and the data processing into a single silicon chip.
Photomultiplier Tube
Avalanche Photodiode
Analog SiPM
Digital photon counting Digital SiPMs
TOF capability*
●● analog, time-of-flight
● N/A
●● analog, time-of-flight
●●● digital, time-of-flight
Operational stability
●● medium
● low
●● medium
●●● high
Signal amplification
●● 106
● 102-3
●● 106
●●● not needed
Level of integration
● low
●● medium
●● medium
●●● high
Signal readout
● analog● analog● analog●●● digital
Performance data*
Number of Detectors
23,040
System spatial resolution
4.1mm
Effective system sensitivity
> 23.4 kcps/MBq at center
> 23.4 kcps/MBq at 10 cm
Effective peak NECR
> 687 kcps @ 50 kBq/mL
Maximum trues
>800 kcps
System timing resolution
310 psQuantitative accuracy
+/- 5%*Preliminary performance is subject to change
Please contact us for more information about the Vereos Digital PET/CT scanner.
