Soft silicone frame designed for excellent fit and comfort2
Open field of vision2
Innovative design prevents red marks and discomfort on the nose bridge4

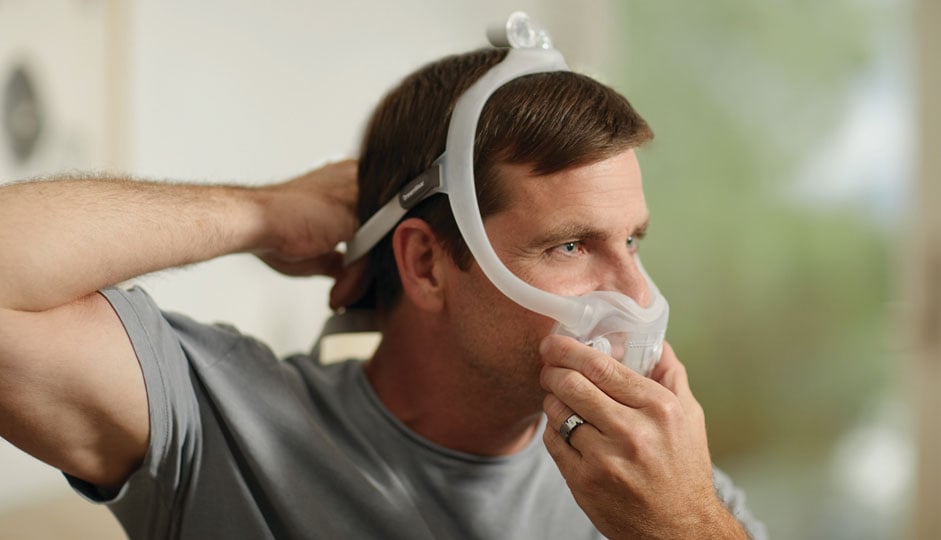

Discover the DreamWear difference
If your sleep isn’t everything it could be because of your current sleep apnea therapy, dare to dream of a better way. Philips DreamWear system of CPAP masks7 are designed to help you get the most satisfying sleep possible. Ask your physician or sleep therapist about DreamWear today.
Learn more about the Philips DreamWear system of masks.
See how Jesús* discovered the benefits of the DreamWear mask with Full Face Cushion.
Learn Cheryl’s* perspective on how the DreamWear mask with Full Face Cushion is different from other masks she has tried.
Hear how Cheryl* avoids “Mask Face” by sleeping with DreamWear mask with Full Face Cushion.
*People featured in videos are paid endorsers.
DreamWear in 360°
See why DreamWear masks are the closest thing to wearing no mask at all.1-3
Philips Respironics DreamWear mask with Silicone Pillows Cushion is available at a number of retailers. Contact your homecare provider and request our mask or visit one of these online retailers below.
The DreamWear mask Full Face Cushion comes in four sizes to provide you with your best fit (small, medium, medium-wide and large), so you can find the fit that works best for you. This video will show how easy it is. Or follow the handy fitting guide instructions below.
Using the full face sizing gauge (included with the mask or download at the link above), hold horizontally under the nose and select the cushion size based on where the outer edge of your nostrils and tip of your nose contact the gauge.
Note: Four cushion sizes (small, medium, large, medium-wide) are available.
Philips always recommends consulting a sleep or respiratory therapist in fitting a mask to ensure a proper size and fit.
The cushion opening will be directly under the nostrils. The cushion will hug the nose and mouth, and leak will be minimal.
Note: At no time should the nose be inside of the cushion opening. If any part of the cushion overlaps the nose, the cushion is being worn incorrectly. A different size cushion may be needed.

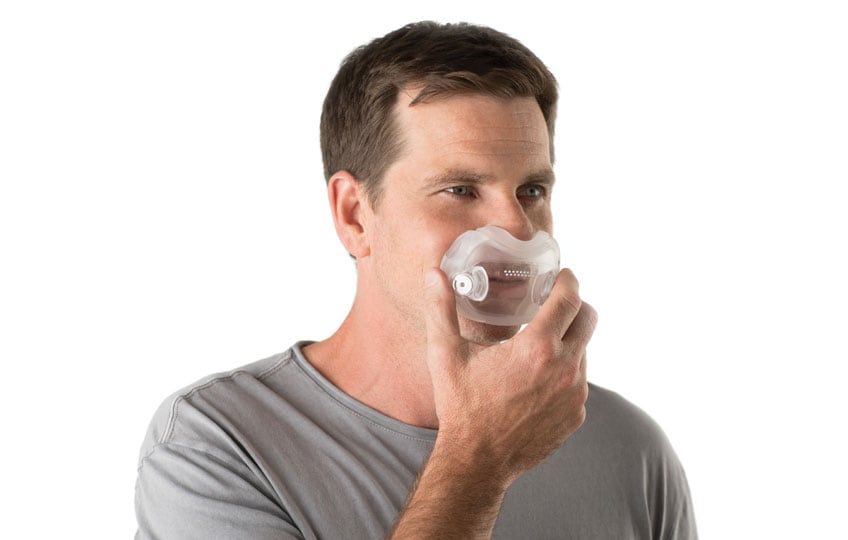

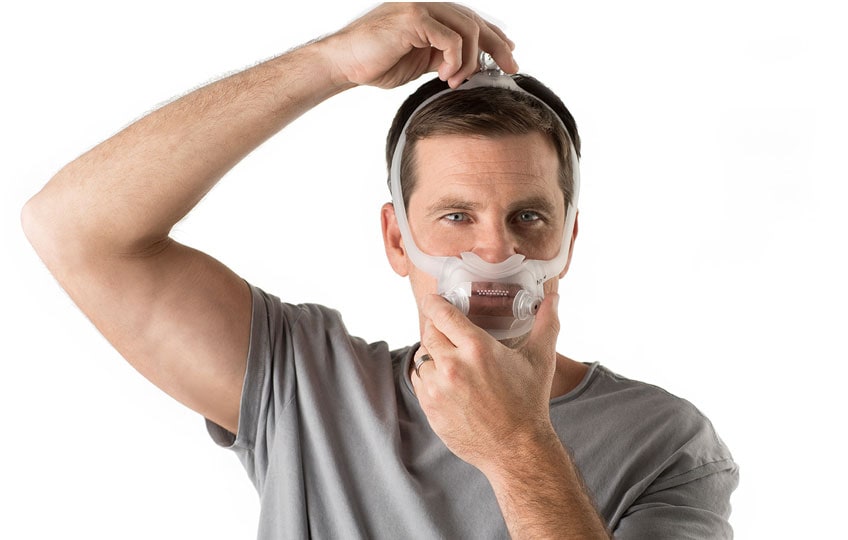

With the mask assembled, place the cushion under the nose.
See Assembly instructional video above.

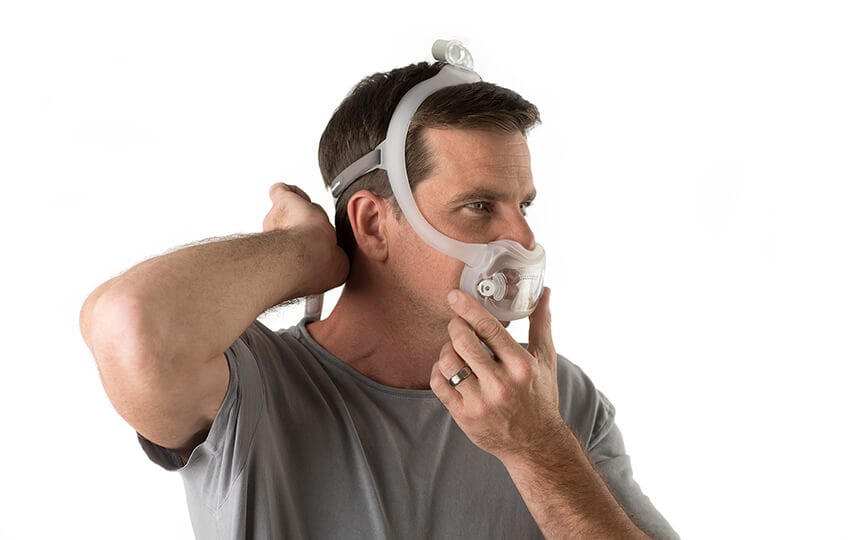

Position the frame on the top of the head. Pull the headgear over the back of the head.

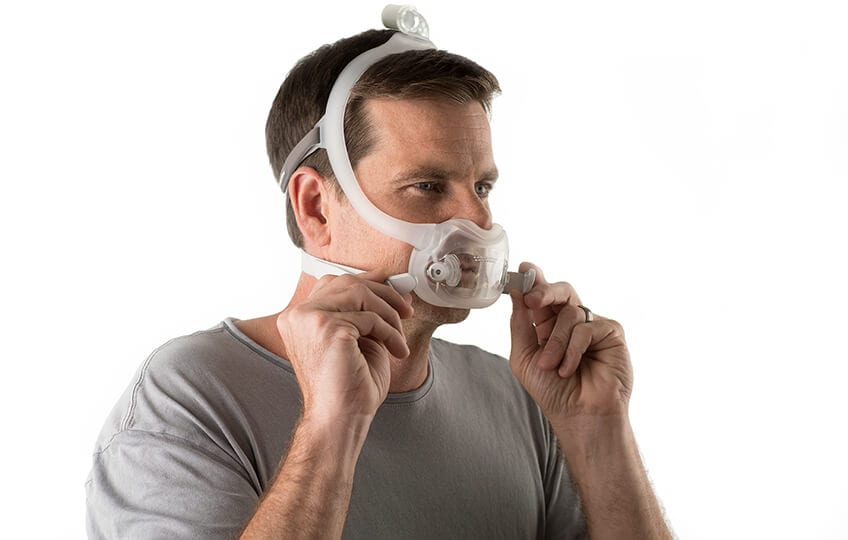

Attach the magnetic headgear clips to the mask cushion.

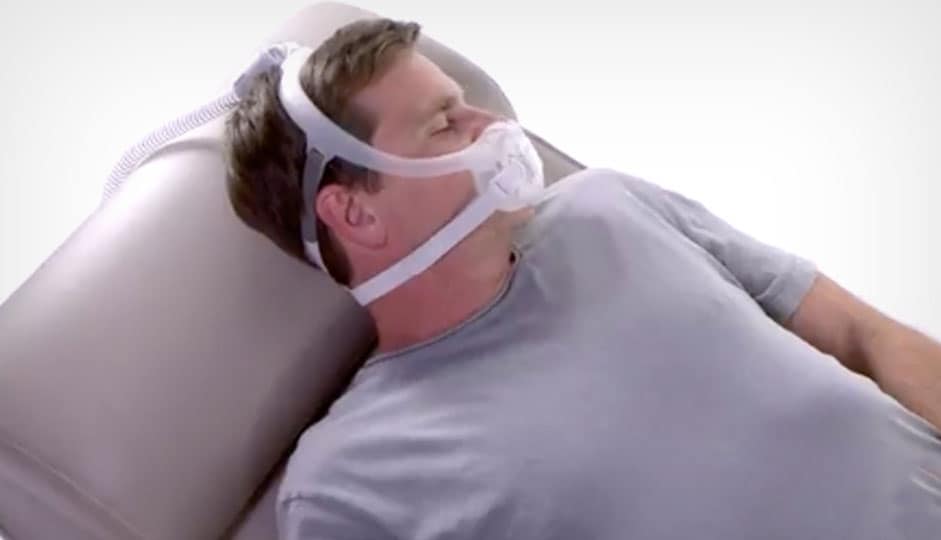

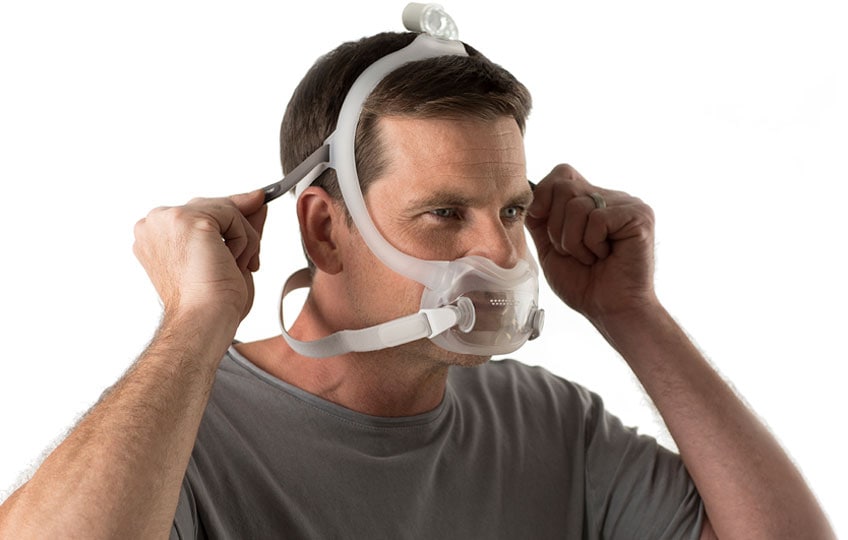

To adjust the mask, peel the headgear tabs away from the fabric. Adjust the length of the top straps. Press the tabs back against the fabric to reattach. Repeat this step with the bottom straps.
Note: Do not overtighten the headgear.
Position the mask until it fits comfortably. When finished, the elbow should rest at the top of the head.
If a person lays on their side and closes off one side of the tubing, will the mask still provide therapy? Will it create a pressure spike?
The mask will continue to provide the prescribed therapy. Every other mask on the market operates with one tube running to the cushion and this mask operates in the same way. No increase of pressure or noise will occur.
With the tubing right next to the ear, will DreamWear Full Face be noisier than other masks?
From a sound level perspective, the DreamWear Full face mask is a quiet full-face mask. However, since the airflow is located closer to the ears with this design and not routing downward in front, some people may notice the airflow noise more than a traditional mask. For most users, the experience is quiet and comfortable with the unique design offering more freedom of movement. However, since this is such a different design, it may take some people some time to get used to the difference in the noise. It’s not louder, simply different.
There are 3 sizes of frames. How do I choose the right size?
Always start with the medium frame. If the mask is too small, the frame will sit too close to the eyes. If the mask is too big, it will sit too close to the ears. Please refer to the quick start guide or instructions manual for pictures and a thorough description. In most cases, it will be obvious if a different size frame is needed. However, if there are leaks at night or the mask seems to move too much, a different size frame and/or cushion should be tried.

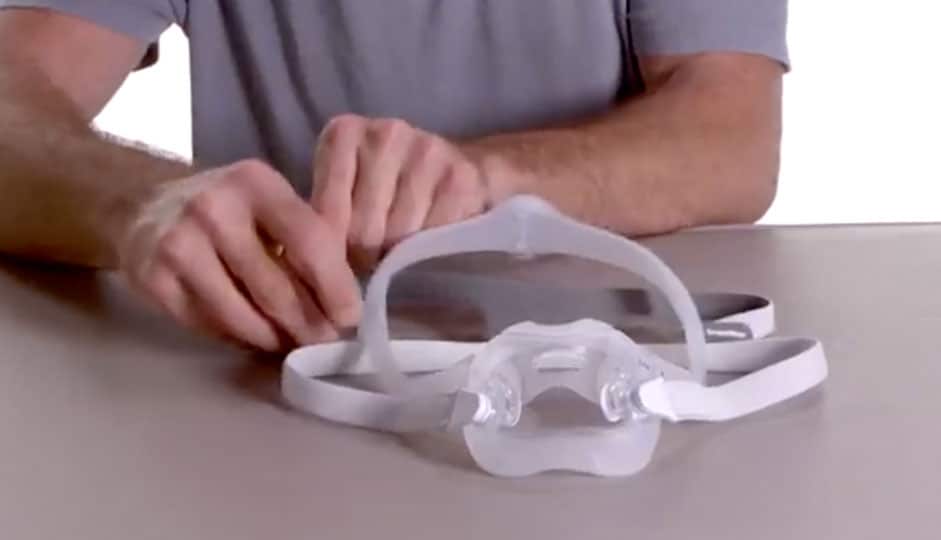

How do I clean the mask?
If you remove the headgear, cushion and swivel, the frame is essentially one tube. This can be cleaned the same way the short tubing on other masks or the longer CPAP tubing is cleaned. Wash with warm soapy water, it can be rinsed through the swivel connection as well. Set to dry and if there happens to be any remaining moisture in the tube before therapy is started, connecting it to the CPAP with pressure can help to remove this.
The mask may also be cleaned in the dishwasher once a week. The non-fabric parts can be washed on the top shelf of the dishwasher and air dried. Please refer to the instructions manual that came with the mask.
What are the cushion sizes? Does it size the same as DreamWear under the nose nasal cushions? Does it size the same as Amara View?

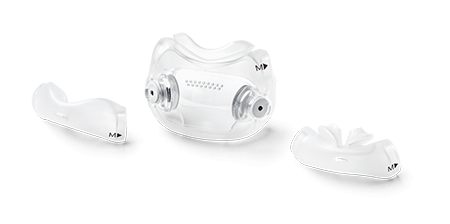

DreamWear Full Face cushions come in four sizes: small, medium, large, and medium-wide. The full face cushion, while covering both the nose and mouth, is sized based on the nasal opening, just like the under-the- nose cushions. The nasal opening is the exact same design and shape as the DreamWear under the nose cushion which means, there is a direct correlation between DreamWear full face and DreamWear under-the-nose sizing – a medium in the full face is a medium in the nasal, etc. However, the DreamWear full face nasal opening is a different design and shape than the Amara View opening and the two masks size differently.
Therefore, there is not a direct correlation between DreamWear full face and Amara View.
How can you tell the difference between cushion and frame sizes?
The cushion indicator is on the front of the cushion next to the arrow that points to the arrow on the frame for the connection. The frame size indicator is on the top of the frame behind the elbow connection.
Why is it that a person measures one size on the sizing gauge but works better with another size cushion?
The sizing gauge is a guideline to indicate which cushion to start with. However, it is only a guideline and will never be 100% accurate. It is always best to start with the size suggested by the gauge but then fit for comfort if another cushion and frame size combination works better for you.
Philips Respironics now offers Mask Selector 3D and 2D tools. Philips Respironics Mask Selector is rooted in science and data:
Pioneering tool for achieving CPAP mask personalization
Proprietary software based on over 10 years of facial scanning research for mask design
Mask type, sizing and fitting algorithm built upon a wide range of ethnicities and geographies
Ask your home healthcare equipment provider if they are a certified provider of this service.
Is it on DreamMapper?
All DreamWear masks are supported by the DreamMapper sleep apnea app.
More from the Dream family

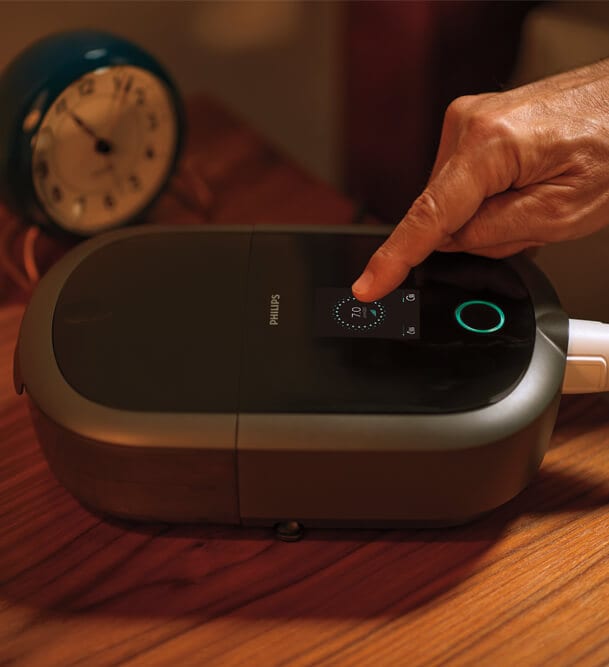

DreamStation 2 Auto CPAP Advancedsleep therapy system
Data analysis at 30 days of use of 2015 Philips sponsored patient preference trial (n=98). Prescribed masks include ResMed Swift FX, ResMed Mirage FX, Philips Wisp, and ResMed P10.
Data analysis at 10 days of use of 2019 Philips sponsored patient preference trial (n=81). Prescribed masks include ResMed Airfit N10, N20, Mirage Fx, Philips Wisp, Pico, ComfortGel Blue, F&P Eson & Eson 2
2 DreamWear mask with Full Face Cushion:
Data analysis of Aug 2017 Patient Preference trial where n = 85 and prescribed masks include Resmed Airfit F10 and F20, Respironics Amara View and F&P Simplus.
3 DreamWear mask with Silicone Pillows Cushion: Analysis after 30 day of use during Jul/Aug 2020. Pillows preference trial with n = 127. Prescribed masks include ResMed Airfit PlO, P30i, Swift Fx, F&P Brevida, Philips DreamWear Gel Pillows, Nuance / Pro
4 Design claim - The design of the mask is such that it does not contact the nasal bridge. 5 Patient Preference study with DreamWear Nasal with original headgear users; (n=140), Jan/March 2019, at 30 days versus the original DreamWear nasal mask headgear. Original headgear refers to the slit headgear design on DreamWear UTN nasal mask. 6 Switching from Nasal or Silicone Pillow Cushion to a Full Face Cushionrequires different headgear and instructions and may result in additional cost. Consumers must consult their provider before making adjustments. 7 A 30 day Patient Preference study with DreamWear UTN nasal original headgear users; n = 121 conducted April / May 2019
