How to connect a playback device to my Philips TV using an ‘AV’ input

Unplug the TV and playback device before you make any connection.

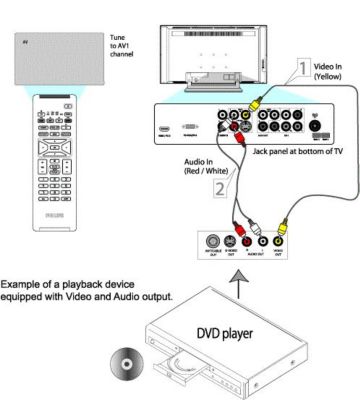

Use a video cable and connect one end of the video (yellow) cable to the video output jack of the accessory device and the other end to the ‘AV VIDEO IN' input jack on the bottom of the television.
Use a set of audio cable and connect one end of the audio cables (red and white) to the audio left and right output jacks of the playback device and the other end to the audio ‘AV L/R' jacks on the bottom of the television.
Turn the TV and the playback device ON and press the [AV+] button on the remote control to show the [Source] list menu.
Press the cursor [Up] or [Down] button to select [AV/SVHS] and press cursor [Right] to activate.
With the playback device ON, press the [Play] button to activate the playback on the TV.

The information on this page applies to the following models: 26PF5320/28, 32PF5320/28.
