Other items in the box
- Audio Cable
- Batteries for remote control
- Coax digital audio cable
- Quick start guide
- Remote Control
- User Manual
- Audio/Video cable
- Power cord

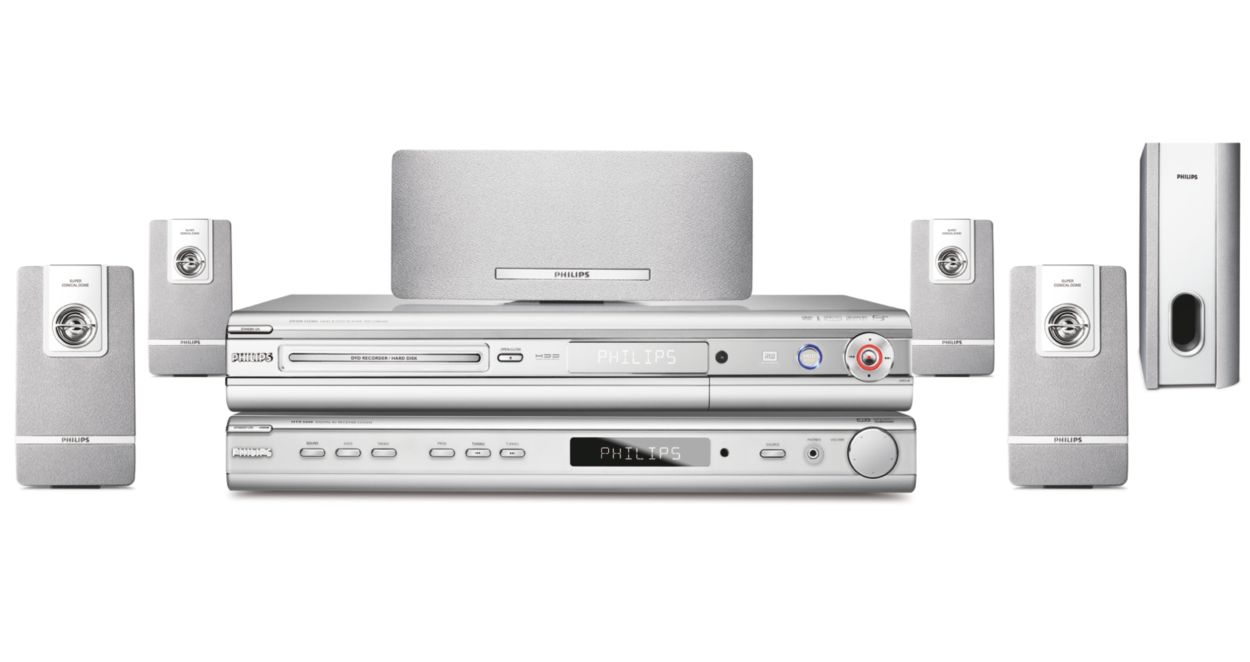

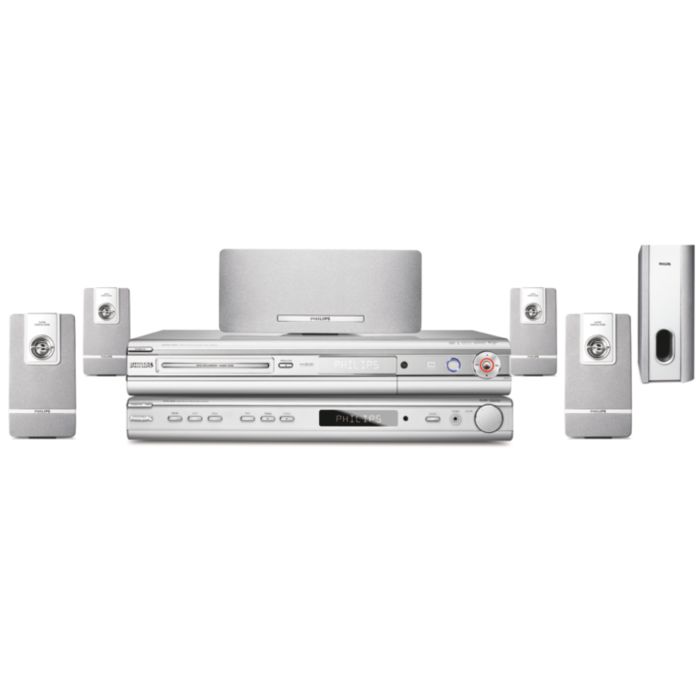

HDD/DVD recorder home theater
HTS5800H/37
See, hear, record everything
Record your favorite TV programs in digital quality and play any movie format including DivX with full surround sound on this complete and unique HDD & DVD Recorder Home Theater System.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all Home TheaterBundle bonus Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
HDD/DVD recorder home theater
Total
recurring payment
i.LINK digital input for perfect digital camcorder copies
Also known as IEEE 1394 and FireWire, i.Link carries all audio and video signals via a single cable digitally, with no loss in picture and sound quality. With i.Link digital video input, you can copy your home videos in their original digital picture quality.

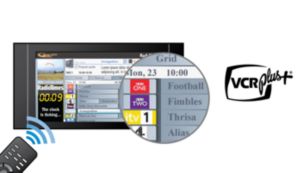

VCR Plus+ for quick and easy programming
With the VCR Plus+ system, all you need to do to program your video recorder is to enter the ‘Pluscode’ – a single code of up to nine digits (but usually less) that is printed next to each TV program in most TV guides.
DTS, Dolby Digital and Pro Logic II surround sound
A built-in DTS and Dolby Digital decoder eliminates the need for an external decoder by processing all six channels of audio information to provide a surround sound experience and an astoundingly natural sense of ambience and dynamic realism. Dolby Pro Logic II provides five channels of surround processing from any stereo source.
Progressive Scan component video for optimized image quality
Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.
Movies: DVD, DVD+R/RW, DVD-R/RW, (S)VCD, DivX
Multi-format playability allows you to play most disc formats for maximum disc compatibility and viewing pleasure.
Music: CD, MP3-CD, CD-R/RW & Windows Media™ Audio
Multi-format playability allows you to play most disc formats for maximum disc compatibility and listening pleasure.
FlexTime to watch the beginning while recording the end
With FlexTime you can watch a program while it’s still being recorded, thanks to the extreme speed of a Hard Disk.
One Touch Pause Live TV freezes the action instantly
Pause Live TV puts you in absolute control. Once the recorder is turned on, a large built-in memory automatically starts recording the program you are watching -- allowing you to pause, replay or save the program, anytime. If you need to take a break, you can pause your 'live' TV program with just one touch of a button, and resume watching when it suits you.
Dual Media conveniently records on both DVD+R/RW & DVD-R/RW
Philips DVD Recorders support ‘dual media’ recording – the ability to create recordings on DVD+R/RW and DVD-R/RW discs. Now you can buy any disc and your Philips recorder will always create fully compatible recordings, which can be played on any DVD player.
Picture CD (JPEG) with music (MP3) playback
Picture CD is a CD-R or CD-RW disc on which you can store your MP3 and digital pictures. When inserting a Picture CD in the DVD player, a screen menu will pop up, showing your JPEG's and/or MP3 files on the disc. Just select the music and pictures files you wish to enjoy and press play or OK. You can watch your pictures on TV with your music playing simultaneously.
Technical Specifications
-
Sound
- A/D converter
- 24 bit, 96 kHz
- D/A converter
- 24 bit, 96 kHz (Recorder) 24 bit, 192kHz (Receiver)
- Frequency response
- 150 - 20 000 Hz
- Output power (RMS)
- (4 x 115 + 2 x 120) W
- Sound Enhancement
-
- Class "D" Digital Amplifier
- Treble and Bass Control
-
- Sound System
-
- Dolby Digital
- Dolby Prologic II
- DTS
-
- Signal to noise ratio
- >60 dB
- Total Power (RMS)
- 700 W
-
Storage Media
- Hard Disk Capacity
- 80 GB
- HDD recording enhancements
-
- FlexTime
- Instant Replay
- Pause Live TV
-
-
Loudspeakers
- Center freq range
- 140-20000 Hz
- Center Speaker
- Magnetically shielded
- Satellite Speaker
- Magnetically shielded front
- Center speaker drivers
-
- 2 x 3" full range woofers
- 1" conical dome tweeter
-
- Satellite speaker freq range
- 140-20000 Hz
- Satellite speaker impedance
- 3 ohm
- Subwoofer freq range
- 40-140 Hz
- Center speaker impedance
- 3 ohm
- Satellite speaker drivers
-
- 3" full range woofer
- 1" conical dome tweeter
-
- Subwoofer driver
- 6.5" wOOx passive radiator
- Subwoofer type
- Passive
- Subwoofer impedance
- 3 ohm
-
Connectivity
- Front / Side connections
-
- Audio L/R in
- i.LINK DV in (IEEE1394, 4-pin)
- S-video in
- Video in
-
- Rear Connections
-
- 6-channel speaker terminals
- AM/MW Antenna
- Analog audio Left/Right in 2x
- Analog audio Left/Right out
- Click-Fit Multich Connectors
- Digital coaxial in 2x
- Digital coaxial out
- Digital optical in 2x
- FM Antenna
-
- Other connections
-
- Analog audio Left/Right in
- Analog audio Left/Right out 2x
- ComponentVideo out Progressive
- Composite video (CVBS) input
- Composite video (CVBS) out
- Digital coaxial out
- RF antenna in / TV out
-
-
Tuner/Reception/Transmission
- No. of preset Audio Channels
- 40
- Tuner Bands
-
- AM
- FM
-
- TV system
- NTSC
-
Power
- Power supply
- 120V, 60Hz
- Standby power consumption
- 3.5W
-
Accessories
- Included accessories
-
- Audio Cable
- Batteries for remote control
- Coax digital audio cable
- Quick start guide
- Remote Control
- User Manual
- Audio/Video cable
- Power cord
-
-
Dimensions
- Center Speaker Depth
- 75 mm
- Product depth
- 340 mm
- Set Width
- 435 mm
- Center Speaker Height
- 95 mm
- Set Height
- 53 mm
- Center Speaker Weight
- 0.8 kg
- Center Speaker Width
- 220 mm
- Set Depth
- 359 mm
- Set weight
- 4 kg
- Surround Speaker Width
- 95 mm
- Surround Speaker Height
- 175 mm
- Surround Speaker Depth
- 65 mm
- Product width
- 435 mm
- Subwoofer Weight
- 5.11 kg
- Surround speaker Weight
- 0.76 kg
- Product height
- 65 mm
- Subwoofer Depth
- 360 mm
- Product weight
- 4.3 kg
- Subwoofer Height
- 340 mm
- Subwoofer Width
- 130 mm
-
Audio Playback
- Compression format
-
- Dolby Digital
- MP3
- MPEG2 Multichannel
- PCM
- WMA
-
- Playback Media
-
- Audio CD
- CD-R/RW
-
-
Picture/Display
- A/D converter
- 10 bit, 54 MHz
- D/A converter
- 10 bit, 54 MHz
- Picture enhancement
- Progressive scan
-
Still Picture Playback
- Picture Compression Format
- JPEG
- Playback Media
-
- DVD+R/+RW
- DVD-R/-RW
- CD-R/RW
-
- Picture Enhancement
-
- Slideshow with MP3 playback
- Zoom
-
-
Video Playback
- Playback Media
-
- CD-R/CD-RW
- DVD+R/+RW
- DVD-R/-RW
- DVD-Video
- Video CD/SVCD
-
- Compression formats
-
- DivX 3.11
- DivX 4.x
- DivX 5.x
- MPEG1
- MPEG2
-
- Video disc playback system
-
- NTSC
- PAL
-
-
Video Recording
- Audio compression
- Dolby Digital
- Recording enhancements
-
- Auto Chapter Marking
- Chapter Marker Insertion
- Divide
- Erase
- Manual Chapter Marking
-
- Recording Media
-
- DVD+R/+RW
- DVD-R/-RW
-
- Recording system
- NTSC
- Recording Modes
-
- High Quality (HQ)
- Standard Play (SP)
- Standard Play Plus (SPP)
- Long Play (LP)
- Extended Play (EP)
- Super Long Play (SLP)
-
- Compression formats
- MPEG2
