View a region several different ways, using the exclusive Spectral Magic Glass viewer to isolate material composition.
MonoE

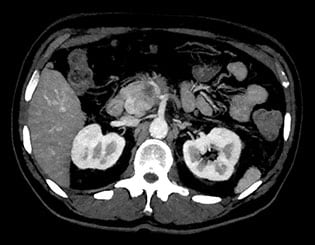

This view shows a synthesized monoenergetic image at a predefined keV value.
MonoE
Iodine no H2O
H2O no iodine
Effective Z
Iodine no H20

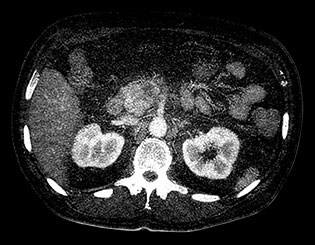

Here, pixel values represent the iodine concentration of the displayed tissue in mg/cc. Water-like tissues are identified and suppressed to let the viewer focus on the distribution of iodine-enhanced tissue.
MonoE
Iodine no H2O
H2O no iodine
Effective Z
H20 no iodine

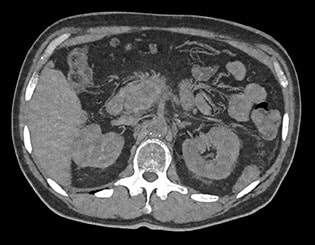

This view shows iodine-free images in which the pixel values represent water-like tissue concentration in mg/cc. Iodine is identified and suppressed to let the viewer focus on tissue without the iodine.
MonoE
Iodine no H2O
H2O no iodine
Effective Z
Effective Z

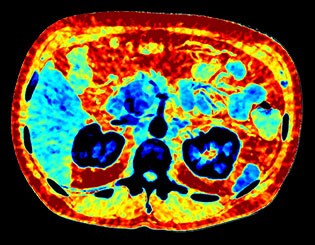

Here we have a series of images where voxel values represent effective atomic number. Effective atomic number can be a fractional number, representing any element, compound or mixture. The number may be different than the atomic number as defined in the Periodic Table. The unit is simply Z.
