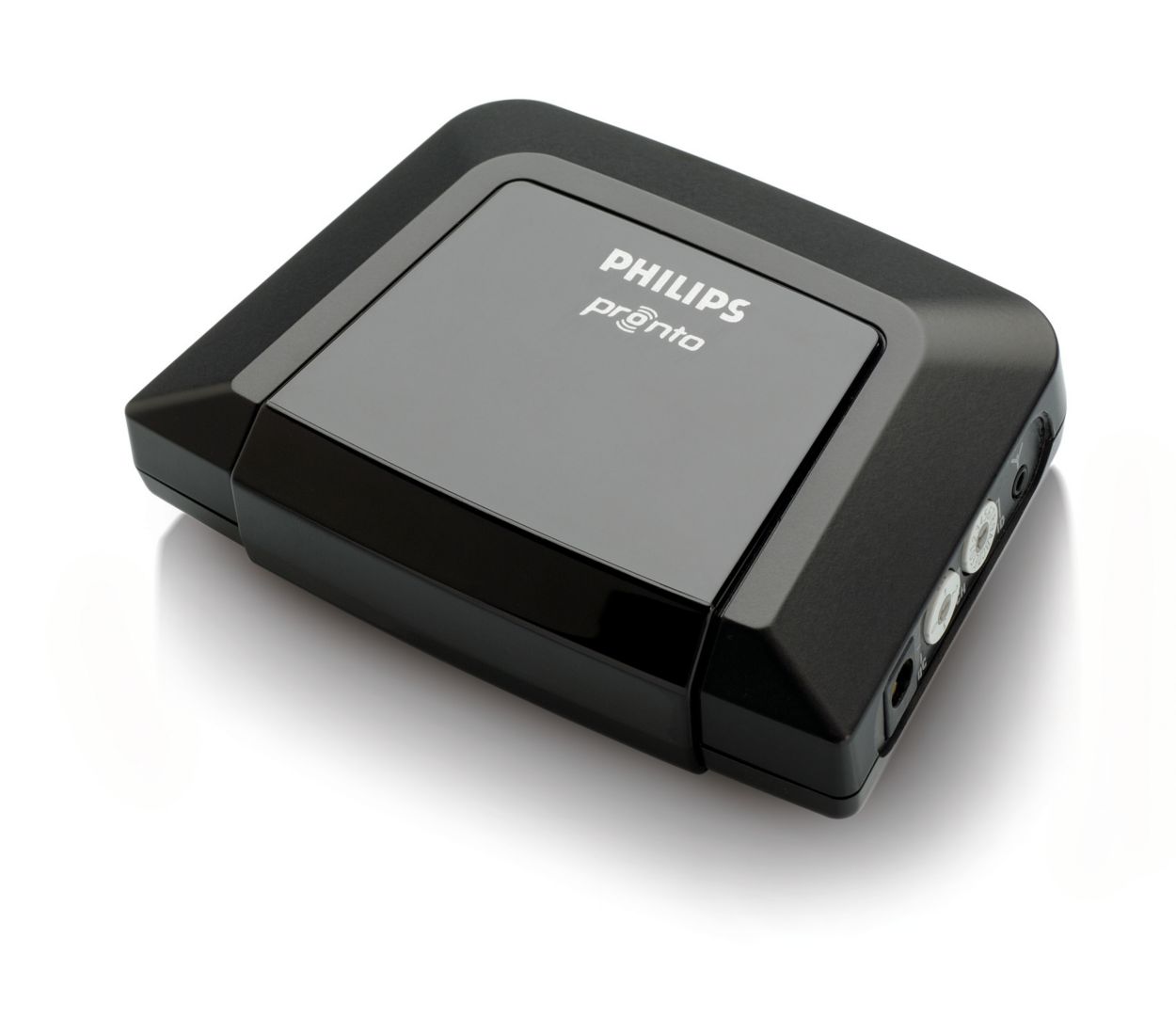

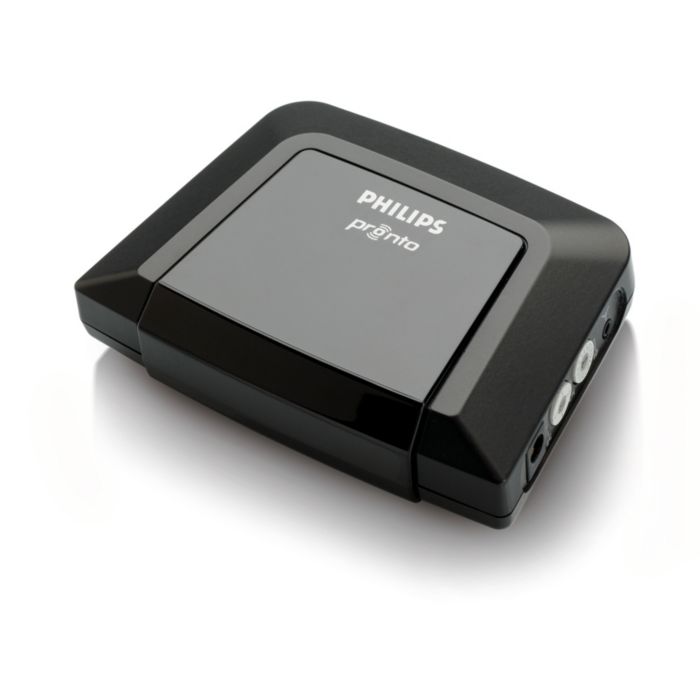

Pronto RF extender
RFX6500/17
Extended range, reliable control
Easy to install RF extender for Pronto and ProntoPro guarantees virtually interference-free operation in multi-room configurations or non-line-of-sight environments.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all Universal remote controlsBundle bonus Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
Pronto
RF extender
Total
recurring payment
Optional IR extension module controls hidden equipment
An infrared extension module allows you to control traditional infrared equipment over a radio frequency network.
Radio frequency works through walls and from other rooms
A radio technology that allows you to control components not in direct line-of-sight, such as through walls or other obstacles. There are two types of RF used in remote controls: RF to component, and RF to infrared.
Adjustable antenna to reliably position RF extender
A separate adjustable antenna determines the most reliable position of an RF extender and therefore enables virtually interference-free operation of multi-room systems or devices in concealed environments. The antenna has a built-in interference indicator that blinks when detecting an other RF device or other interference source (e.g. microwave oven). The harder the indicator blinks, the less reliable the position of the antenna.
Indicator detecting interference sources to an RF signal
An interference indicator is a red blinking light that indicates the presence of interference sources in the home, that can interfere with the operation of an RF extender. The indicator is built into an antenna, and starts blinking as soon as the antenna picks up interference from RF devices, besides the RF extender, or other sources e.g microwave oven. The harder the light blinks, the less reliable the antenna is positioned, therefore, the less reliable the RF extender will work.
Technical Specifications
-
Connectivity
- Connector
- 2.5 mm Blaster- Receiver connector
- IR emitter connectors
- 4
-
Convenience
- Error indication
- Yes
-
Power
- Mains power
- 120V (+/-10/-15%)/60Hz
-
Accessories
- AC/DC Adaptor
- 12V DC 400mA
- Printed User Guide
- Yes
- Dual IR emitter wires
- 4
-
Dimensions
- Master carton quantity
- 1
- Product dimension (WxDxH) inch
- 4.5" x 3.2" x 1.2" inch
- Product weight (lb)
- 0.132 lb
- Master carton weight
- 0.84 kg
- Temperature range (operation)
- 32°F to 122°F
-
Infrared Capabilities
- Transmitting LEDs
- 4
- IR emitter connectors
- 4
-
RF Capabilities
- Adresses (ID's)
- 16
- Channels
- 4
- Communication
- 1-way
- Frequency (MHz)
- 418
