Other items in the box
- Table top stand
- DVI-D cable
- VGA cable
- Remote Control
- Battery
- AC Power Cord

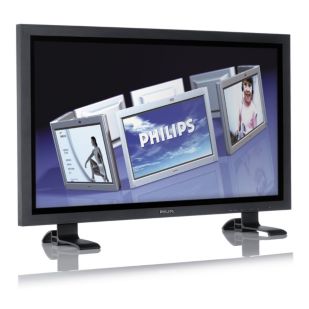

plasma monitor
BDS4241V/27
Multi-Purpose Public Display Solution
State of the art, cost effective plasma monitor specially designed for indoor public display applications. The high class scaler, advanced digital video processing and the latest plasma technology guarantee optimal display of your message.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all UnmappedBundle bonus Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
plasma monitor
Total
recurring payment
DVI cable included to provide highest picture quality
A DVI cable is standard included with the display to provide the highest possible picture quality.
3D combfilter separates colors for a razor-sharp image
The 3D comb filter separates brightness and color signals better in 3D domain to eliminate cross-color, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital comb filter performs field-by-field comparisons of the television image to accurately separate the color from the black-and-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.
Remote Management and Configuration via RS232
Remote Management allows the user to control and adjust the displays remotely via the RS232 protocol. Using CEC commands, you are able to have full control over all the displays in your signage network at any time.
Multiple PC input formats up to WXGA
The product supports PC compatibility for VGA, SVGA, XGA and WXGA. A universal public display solution requires versatile PC input support.
Multiple video input formats up to SXGA and HDTV compatible
In common use video content is often supplied in various formats in different resolutions and aspect ratios. Thus the content needs to be reformatted for optimal display on given screen resolution. A high class scaler guarantees optimal reformatting of any video format up to SXGA.
Long expected panel lifetime of over 60.000 hours
In public display applications 24/7 operation is often required. Even after 60000 hours of operation the brightness level of the display will be at least 50% of the initial value.
Quiet and reliable fanless operation
Fanless operation is quiet and doesn't collect dust inside the monitor thus improving product reliability.
Extremely high contrast (10000:1) & brightness (1500 cd/m²)
High brightness and contrast values are extremely beneficial in public environments where lighting conditions are variable and often beyond control.
Motion compensated deinterlacing
Motion compensated deinterlacing employs a smart deinterlacing algorithm that uses the images in a digital memory to measure and estimate the motion speed and direction of objects to creates new fields with corrected motion positions so video content has perfectly smooth, judder-free, and razor-sharp moving images.
Technical Specifications
-
Connectivity
- Audio output
- Speaker output 2x 6.3mm jack
- PC
-
- DVI-D x1
- RS232 D-Sub9
- VGA-in D-Sub 15HD
-
- AV input
-
- Component (YPbPr) x1
- Audio (L/R) for YPbPr x1
- Composite (CVBS) x1
- Audio (L/R) x1
- S-video x1
-
- AV output
-
- Composite (CVBS) x1
- Audio (L/R) x1
-
- Audio input for PC
- Audio Left/Right (RCA 2x)
- Audio input for DVI
- Audio Left/Right (RCA 2x)
- AV 1
-
- Audio L/R in
- CVBS in
-
- AV 2
-
- Audio L/R in
- CVBS in
-
-
Picture/Display
- Panel Size
- 42" / 106.7cm
- Aspect ratio
- 16:9
- Panel resolution
- 852 x 480p
- Pixel pitch
- 1.08 x 1.08 mm
- Brightness
- 1500 cd/m²
- Display colors
- 16.7 Million colors
- Contrast ratio (typical)
- 10000:1
- Viewing angle (horizontal)
- >160 degree
- Viewing angle (vertical)
- >160 degree
- Picture enhancement
-
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- Progressive scan
-
- Horizontal Scanning Frequency
- 30-80 kHz
- Vertical Scanning Frequency
- 50 - 85 Hz
- Effective viewing area
- 920 x 518mm
- Display screen type
- WVGA Plasma panel
-
Convenience
- Placement
-
- Portrait
- Landscape
-
- Built-in Audio
- Built-in amplifier and 10 Watts RMSx2 stereo speakers
- Screen saving functions
- Pixel shift, Image reverse
- User convenience
- On-screen Display
- Monitor Controls
-
- Left/Right
- Menu (OK)
- Power On/Off
- Source Select
- Up/Down
- Volume control
-
- Regulatory approvals
-
- FCC Class B
- TÜV
- UL/cUL
- RoHS
-
- OSD Languages
-
- English
- French
- German
- Italian
- Spanish
- Dutch
-
- Network controllable
- RS232
-
Power
- Power supply
- 100-240VAC, 50/60Hz
- Consumption (On mode)
- 240 Watts (typical)
- Sleep Mode
- 5 Watts Max.
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60, 72, 75Hz
- 800 x 600, 60, 72, 75Hz
- 848 x 480, 60Hz
- 1024 x 768, 60, 70, 75Hz
- 1280 x 1024, 60Hz
-
- Video formats
-
- 480i, 60Hz
- 480p, 60Hz
- 576p, 50Hz
- 576i, 50Hz
- 720p, 50, 60Hz
- 1080i, 50, 60Hz
-
-
Dimensions
- Lifetime to 50% brightness
- 60000 hour(s)
- Product weight
- 29 kg
- Set Width (inch)
- 40.472 inch
- Temperature range (operation)
- +32°F to+104°F
- Set Height (inch)
- 24.606 inch
- Temperature range (storage)
- -4°F to 140°F
- Set Depth (inch)
- 3.535 inch
- Product weight (lb)
- 63.934 lb
- Relative humidity
- 20% - 80%
- Depth (without base)
- 89.8 mm
- Width (without base)
- 1028 mm
- Height (without base)
- 625 mm
- Mounting hole pattern (H x V)
- 638 x 380 mm
- Temperature (operation)
- 0ºC to +40ºC
- Temperature (storage)
- -20ºC to +60ºC
-
Accessories
- Included accessories
-
- Table top stand
- DVI-D cable
- VGA cable
- Remote Control
- Battery
- AC Power Cord
-
- User Manual
- English
- User Guide on CD-ROM
- (RS232 protocol included)
-
Miscellaneous
- Bezel
- Metallic Antracite
