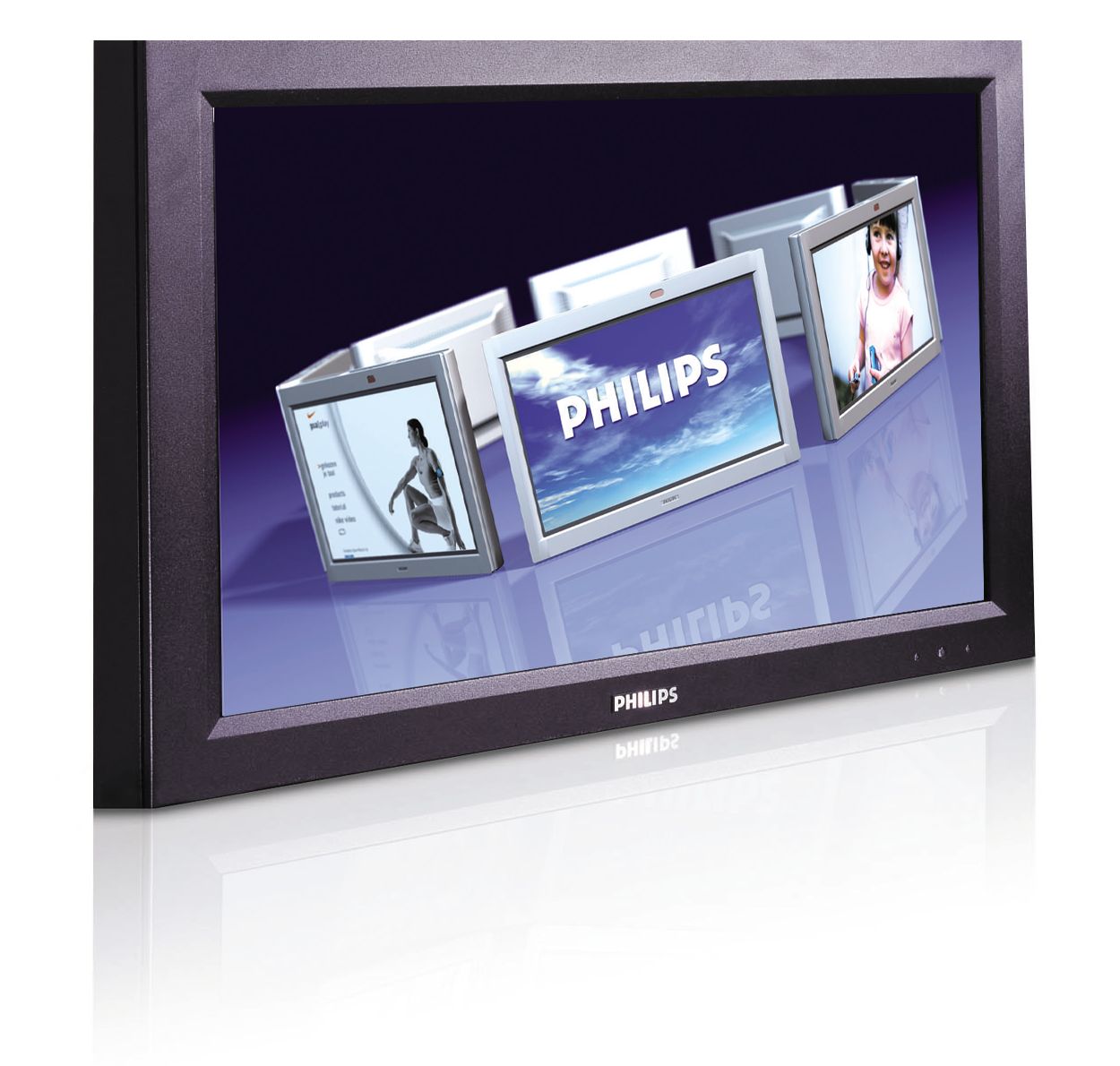

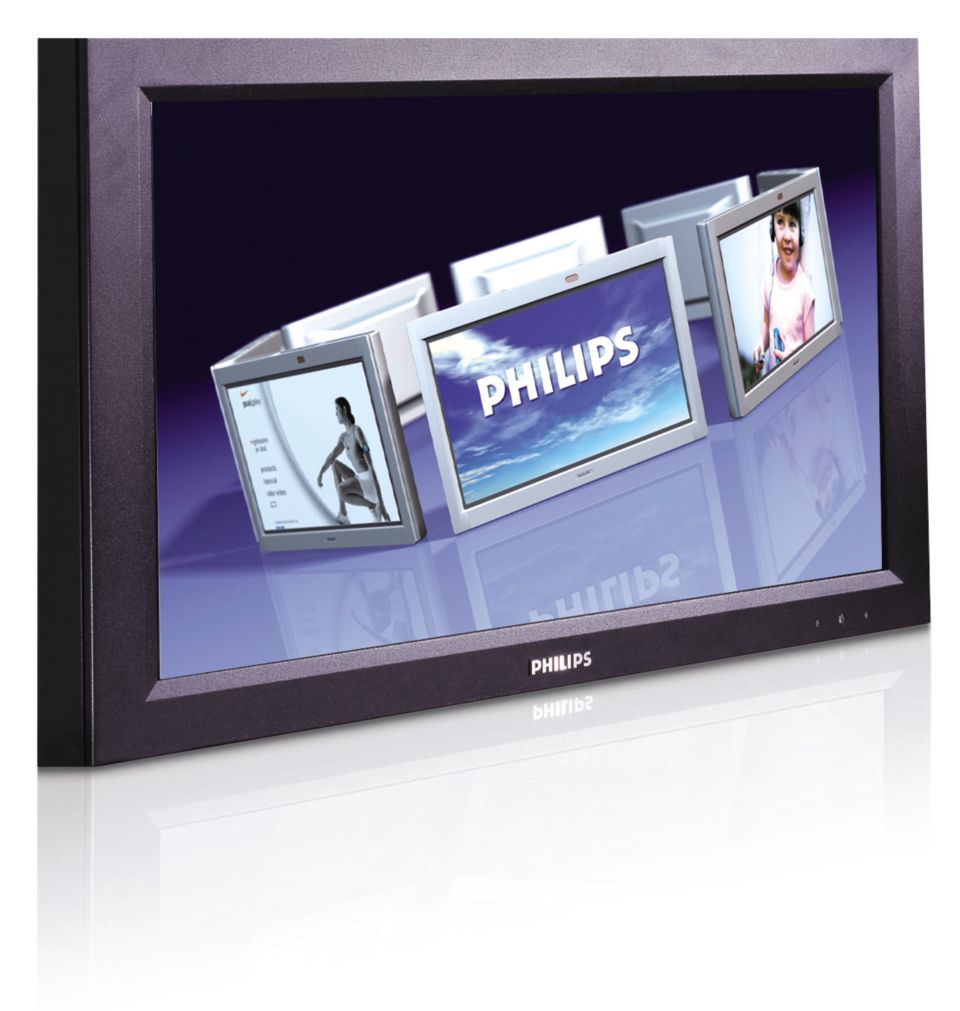

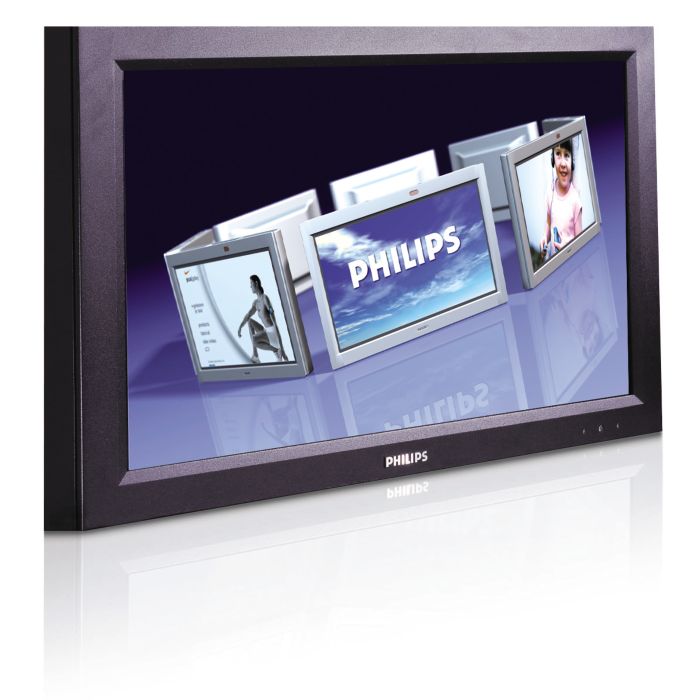

LCD monitor
BDL4211V/27
Control costs, applications and performance
Take charge of the message with this robust network-controlled 107 cm (42") LCD monitor. Delivering a reliable and versatile public display solution, this monitor keeps costs and performance under your control.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all UnmappedBundle bonus Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
LCD monitor
Total
recurring payment
Multiple PC input formats up to WXGA
The product supports PC compatibility for VGA, SVGA, XGA and WXGA. A universal public display solution requires versatile PC input support.
Remote Management and Configuration via RS232
Remote Management allows the user to control and adjust the displays remotely via the RS232 protocol. Using CEC commands, you are able to have full control over all the displays in your signage network at any time.
VGA Loopthrough
Connect multiple displays to create a video wall of up to 150 displays via a VGA daisy chain thus enhancing your visual experience. With no additional hardware required, they are as simple to installl as they are captivating to your audience.
Quiet fanless operation in landscape mode
In landscape mode the monitor operates without activating fans. To make the monitor even more flexible in use one can mount this product also in portrait mode. Circomstances in this mode might require additional cooling. A thermal sensor will then activate cooling fans.
Portrait mode operability
This display is also able to be safely and reliably mounted in portrait position.
Brightness automatically adjusts with ambient conditions
The adjustment of display settings to correspond with ambient light without user intervention.
DCDi™ eliminates combing and jagged edges for a sharp image
DCDi enhances the quality of all images by eliminating the stair-step jagged edges so often seen on progressive scan displays resulting in natural images with exceptional detail.
PiP allows watching a second source simultaneously
Provides the ability to watch simultaneously two different sources, either two video sources or a combination with data/graphics
No permanent burn-in when static information is displayed
Public displays often show static information which could cause ghost images (burn-in). By simply switching off/on the monitor these ghost images disappear fully.
Robust metal bezel and metal backcover
Specially designed for demanding public applications, the metal bezel offers higher durability and protection against vandalism. Annodized paint is used to offer extra protection of the bezel against scratches.
Intelligent power management for lower consumption
Intelligent power management employs energy-efficient technologies in product design to reduce power consumption and significantly lower the total cost of ownership.
Hidden control buttons prevent tampering with settings
Control buttons placed at the rear of a monitor used for public display to prevent tampering with display settings.
Technical Specifications
-
Connectivity
- Audio output
-
- Speaker Out 2x mini-jack 3.5mm
- Stereo Audio (3.5 mm jack) 1x
-
- PC
-
- VGA-in D-Sub 15HD
- DVI-D x1
- 3.5 mm PC audio input x1
- RS232 D-Sub9
-
- AV input
-
- Composite (CVBS) x1
- S-video x1
- Component (YPbPr) x1
- SCART x1
- Audio (L/R) for YPbPr x1
- Audio (L/R) x1
-
-
Picture/Display
- Panel Size
- 42" / 106.7cm
- Aspect ratio
- 16:9
- LCD panel type
-
- 1366 x 768 pixels
- Anti-glare polarizer
-
- Pixel pitch
- 0.6810 x 0.6810 mm
- Optimum resolution
- 1366 x 768 @ 60Hz
- Brightness (nits)
- 600 nit
- Display colors
- 16.7 Million colors
- Contrast ratio (typical)
- 600:1
- Response time (typical)
- 12 ms
- Viewing angle
- @ C/R > 10
- Viewing angle (horizontal)
- 176 degree
- Viewing angle (vertical)
- 176 degree
- Picture enhancement
-
- Picture in Picture
- Progressive scan
-
- Horizontal Scanning Frequency
- 31 - 49 kHz
- Maximum Resolution
- 1366 x 768 @ 60Hz
- Factory Preset Modes
- 10 modes
- Refresh Rate (V)
- 60Hz
- sRGB
- Yes
- White Chromaticity, 6500K
- x = 0.313 / y = 0.329
- White Chromaticity, 9300K
- x = 0.283 / y = 0.297
-
Convenience
- Plug & Play Compatibility
-
- sRGB
- Windows 98/ME/2000/XP
-
- User convenience
- On-screen Display
- Monitor Controls
-
- Left/Right
- Menu (OK)
- Power On/Off
- Source Select
- Up/Down
- Brightness Control
- Contrast Control
- Video select
-
- Regulatory approvals
-
- CE Mark
- FCC-B, UL, CSA
-
- OSD Languages
-
- English
- French
- German
- Italian
- Spanish
- Simplified Chinese
-
-
Power
- Power supply
- Built-in
- Consumption (On mode)
- 180W
- Power LED indicator
-
- Operation - Blue
- Stand by/sleep - Amber
-
- Sleep Mode
- <2W
-
Supported Display Resolution
- Computer formats
-
- 800 x 600, 60Hz
- 640 x 480, 60Hz
- 1280 x 768, 60Hz
- 1024 x 768, 60Hz
- 1366 x 768, 60Hz
-
- Video formats
-
- 480i, 60Hz
- 480p, 60Hz
- 576i, 50Hz
- 576p, 50Hz
- 720p, 60Hz
- 1080i, 60Hz
-
-
Dimensions
- Weight
- 29 kg
- Temperature range (operation)
- 5°C to 40°C
- Temperature range (storage)
- -20°C to 60°C
- Relative humidity
- 20% - 80%
- MTBF
- 50,000 (excl. CCFL 60,000) hrs
- Depth (without base)
- 115 mm
- Width (without base)
- 1035 mm
- Height (without base)
- 626 mm
-
Accessories
- Included accessories
-
- AC Power Cord
- Remote Control
- VGA cable
- DVI-D cable
- Battery
-
- Optional accessories
-
- Fixed wall mount
- Flexible wall mount
- Ceiling mount
-
- User Guide on CD-ROM
- Yes
-
Miscellaneous
- Bezel
- black
